XQ-673H Power Switch Replacement

Geschrieben von: Sean Perry
  • Kommentare: 0
XQ-673H Power Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will help the owner of a Kitchen Gourmet XQ-673H replace the power switch.

  1. 3gooT1bTUCbjSbAd

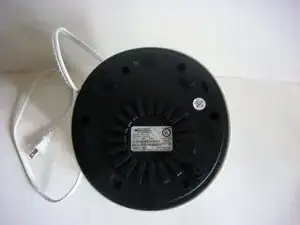

    • Turn the Kitchen Gourmet upside down.

    • Make sure the device is unplugged before continuing.

  2. nPsdeEXlL5Gxto45
    nPsdeEXlL5Gxto45
    MCfUsBMWljEeHZpL
    3T3PDaOmrNjjD2Tk

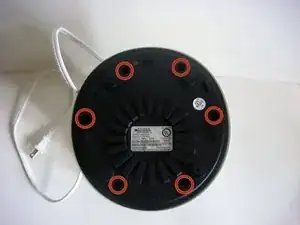

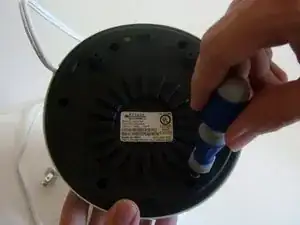

    • Using a phillips #1 screwdriver, remove the six 10mm screws found on the bottom of the device.

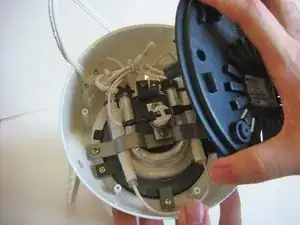

    • Remove the bottom cover.

  3. DGnF5DxKjTjxEdGa
    DGnF5DxKjTjxEdGa
    tSLM6CxHHOvRPXNC

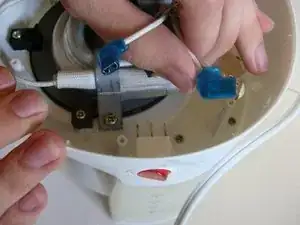

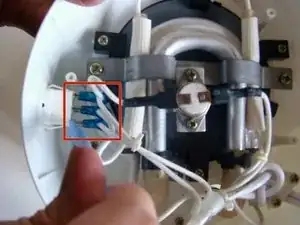

    • Using a Plastic Opening Tool, carefully slide back the three power connectors for the Power Switch until fully removed.

  4. H2H2hvnUDXRGsiqs
    H2H2hvnUDXRGsiqs
    Q2OWQepOfIi4Q2Vt
    hYOsxbadPgIRRKtY

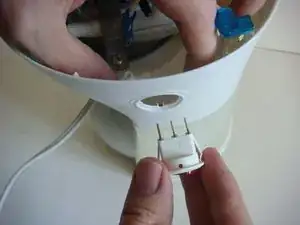

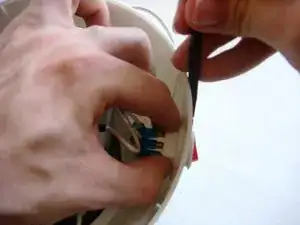

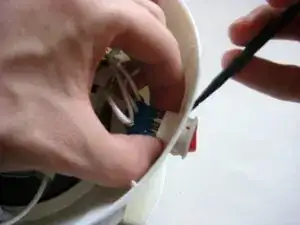

    • Gently squeeze the sides of the Power Switch, while using a Spudger to help pop out the Power Switch.

Abschluss

To reassemble your device, follow these instructions in reverse order.
