XQ-673H Water Tubes Replacement

Geschrieben von: Sean Perry
  • Kommentare: 0
XQ-673H Water Tubes Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will help the owner of a Kitchen Gourmet XQ-673H replace the water tubes.

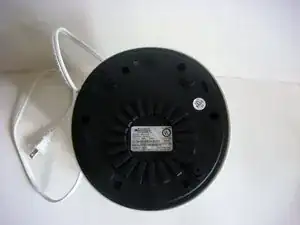

  1. PO2bLOUnC2qt4QSM

    • Make sure the device is unplugged before continuing.

    • Turn the Kitchen Gourmet upside down.

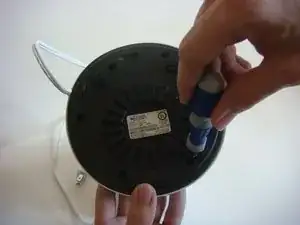

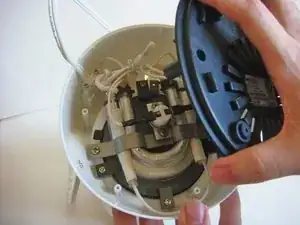

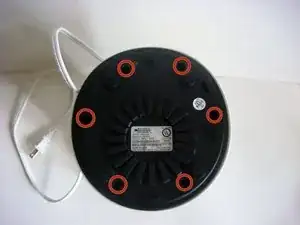

  2. 54dYJZ5vx2AsNTMN
    54dYJZ5vx2AsNTMN
    qTMkFZFr24V6oDcn
    aw4WZrmQxt3AeUcV

    • Using a Phillips #1 screwdriver, remove the six 10mm screws found on the bottom of the device.

    • Remove the bottom cover.

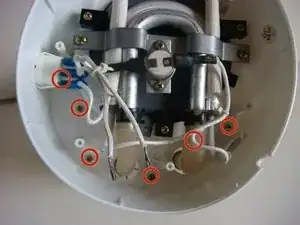

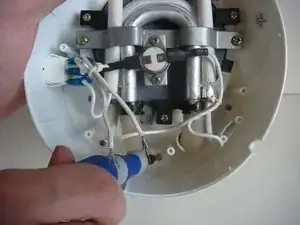

  3. yBFedmAFNpFx6Zvl
    yBFedmAFNpFx6Zvl
    4jDAEKfIg1yAr6X1

    • Using a Phillips #1 screwdriver, remove the six 12mm screws.

    • Some screws are not visible from this photo, but their location is highlighted by the circles.

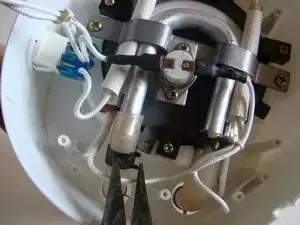

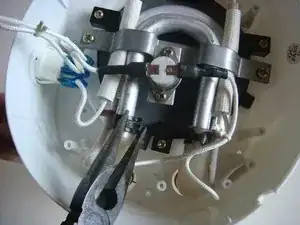

  4. vAjnKlrYS5Bgsj1O
    vAjnKlrYS5Bgsj1O
    JjKg4XdtDDorYLiB
    priPGD6UQMPTV3Bk

    • Using small needle nose pliers, squeeze the metal that is covering the tube.

    • Carefully slide down the metal covering.

    • Repeat this step for the other tube.

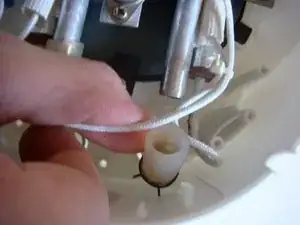

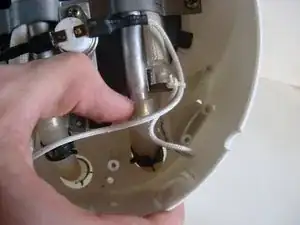

  5. qJelKHTavj1WJLq2
    qJelKHTavj1WJLq2
    BSpWL1gpoOZ5WJHT

    • Using your fingers, gently slide off the Water Tubes.

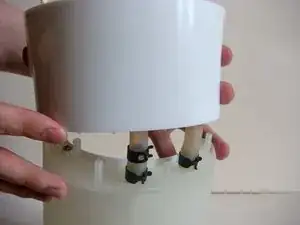

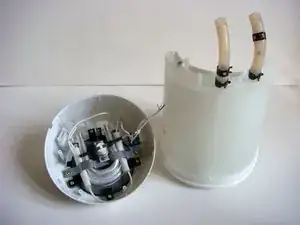

  6. iET1tMAT5BNuUiMG
    iET1tMAT5BNuUiMG
    jrUr45YR66adMaE2

    • Carefully lift the bottom section off the device.

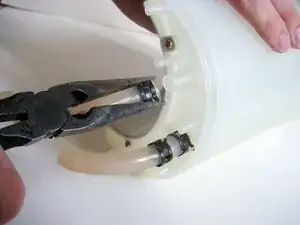

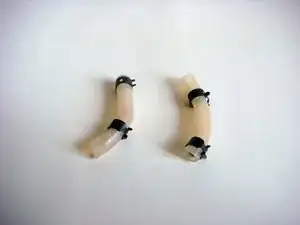

  7. JvVbxfmMKIgIGsjT
    JvVbxfmMKIgIGsjT
    6PVQvCoobX1IkDNc

    • Using small needle nose pliers, squeeze the metal that is covering the tube.

    • Carefully slide down the metal covering.

    • Repeat this step for the other tube.

    • Remove both of the Water Tubes completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
