Xbox 360 S RF Module Replacement

Schritt 1

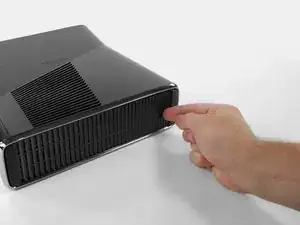

In the following steps, you will remove the top vent, secured to the top panel by the thirteen clips shown.
Take care when removing the fan vent not to break any of the plastic clips.

Schritt 2

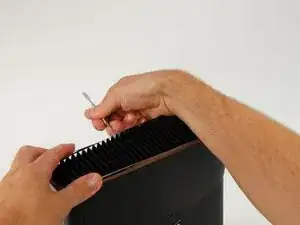

Orient the console so that the words "XBOX 360" on the sides are right-side up, and the faceplate is facing to the left.

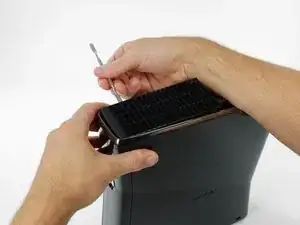

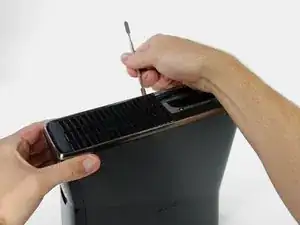

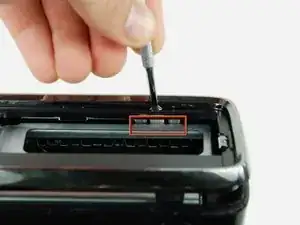

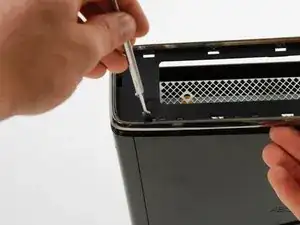

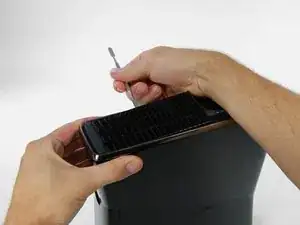

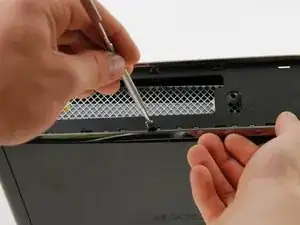

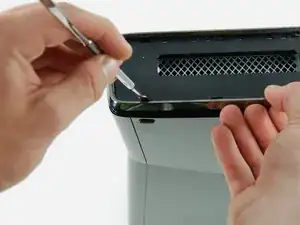

Insert a metal spudger between the top vent and the top bezel near the rear of the Xbox.
Rotate the spudger away from the console, prying the edge of the fan vent up until the two plastic clips come free.
Be sure to rotate the spudger far enough so that the plastic clips clear the silver rim of the top bezel.

Whoever gave that tool the name “spudger” needs to be shot in the face.

Richard - 25/11/17

This step is and the others following are to rough and not needed, simply put smth in between the lamellar and push it up with littlebit pressure thats better for the plastic parts.

TheSupport - 11/09/18

Schritt 3

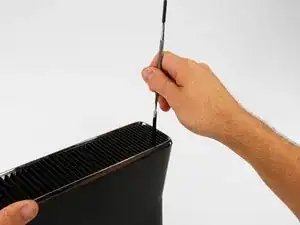

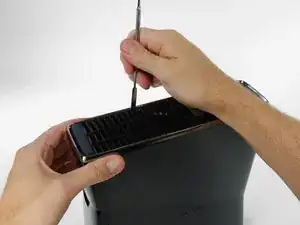

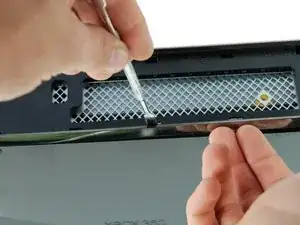

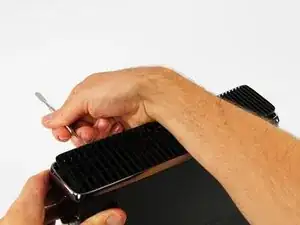

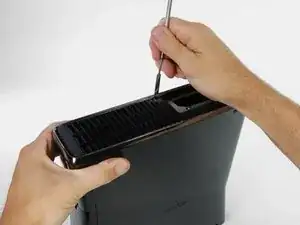

Insert a metal spudger between the fan vent and top bezel along the left side of the console.
In the same manner described above, begin prying the left side of the top vent away from the top bezel.
Continue prying along the left side of the device, freeing all the clips on that side.

Schritt 4

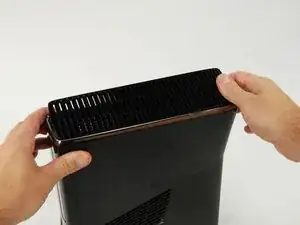

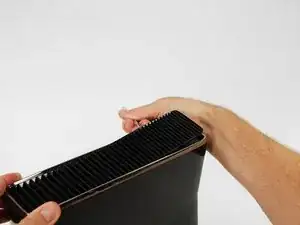

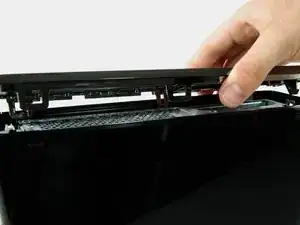

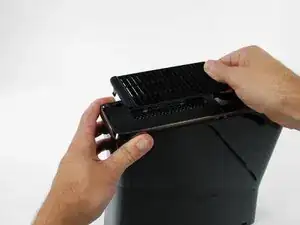

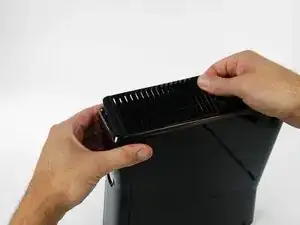

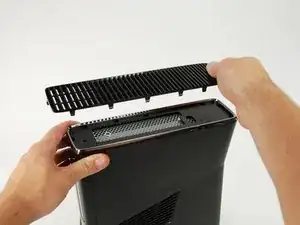

Lift the fan vent up from the freed left side to disengage the clips along the right side.
Remove the entire fan vent.

Schritt 5

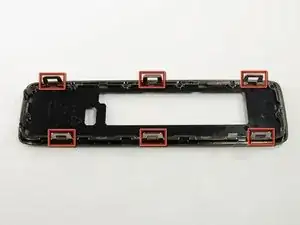

In the following steps, you will be releasing the six clips highlighted in red.

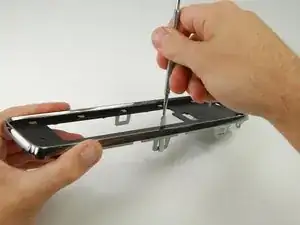

Each clip can be undone by inserting a metal spudger underneath the bottom edge of the clip. Once underneath the bottom edge, simply prying away from the console will free the clip.

see the red boxes specially in image

Restrict -

Schritt 6

Orient the console so that the left case is facing toward you and the faceplate is facing toward the right.

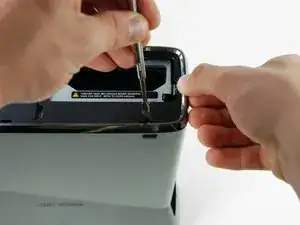

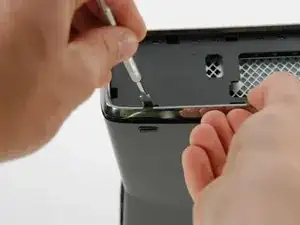

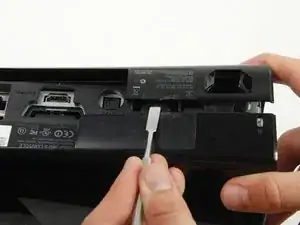

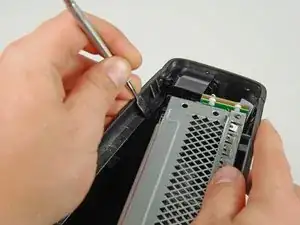

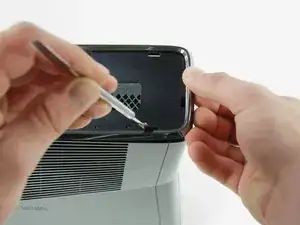

Insert a metal spudger through the front-most slit on the left edge of the top bezel and between the bottom edge of the clip and the left case, as described above.
Simultaneously rotate the spudger away from the console and pull up on the top bezel to free the clip.
You will hear a "pop" signifying that the clip cleared its catch.

Schritt 7

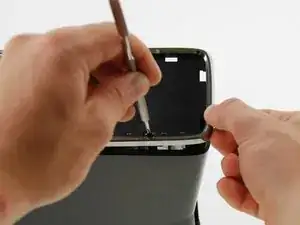

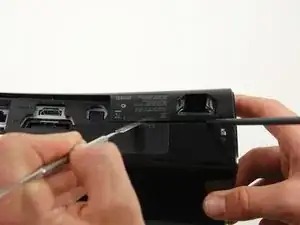

Using the same method described above, free the two remaining clips along the left edge of the top bezel.

Schritt 8

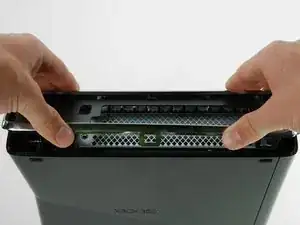

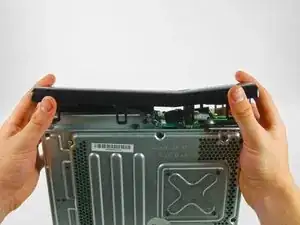

Grab the entire top panel with your hands, lift up the entire left edge high enough to rest the separated clips on top of the left case.
You may have to go back with a spudger and undo any clips that have re-attached.
The top panel will not come free of the console yet.

Schritt 9

Rotate the console so that the rear of the Xbox 360 S is facing to the right, and the right case is facing you.

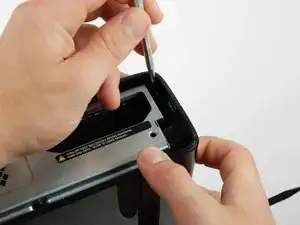

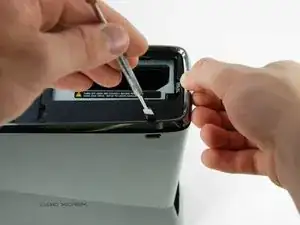

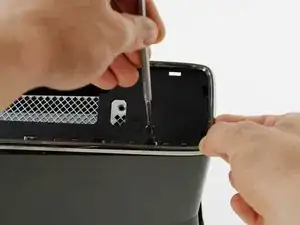

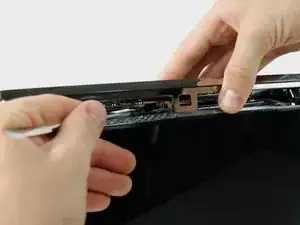

Insert a metal spudger through the rear-most slit on the right edge of the top bezel and between the bottom edge of the clip and the right case.
While lifting up on the top bezel with your fingers, rotate the spudger away from the console to free the clip.

Schritt 10

In the same manner as described in the previous steps, release the middle and front clips along the right edge of the top panel.

Schritt 11

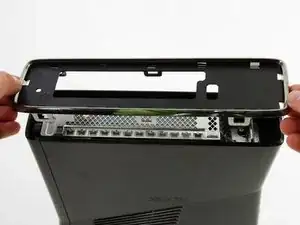

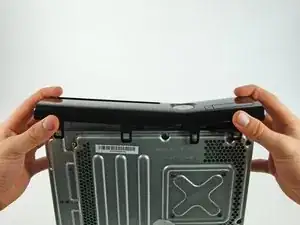

Lift the top panel off the device.
You may have to go back with a spudger and undo any clips that have re-attached to the console.

Schritt 12

Orient the Xbox 360 S so that the bottom of the console is facing toward you.

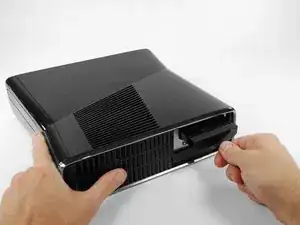

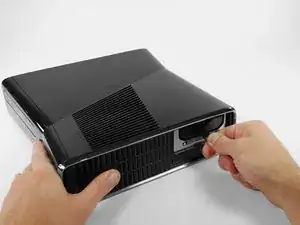

Push the latch holding down the hard drive cover to the left.
Pull the hard drive cover away from the console.

Schritt 13

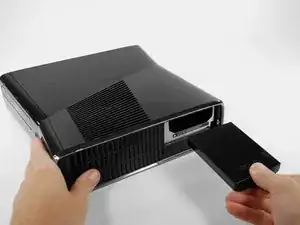

Firmly grasp the fabric tab labeled "250 GB" attached to the hard drive.
Pull the hard drive straight out of the console.
The fabric tab is attached to a catch further inside the hard drive housing. It will take some force to pull the hard drive out.

If i buy a new xbox 360 and replace the hardrive inside with my own, will i have my account and saves? or will i have to recover my account and start over?

yamboboy - 26/07/14

You will still have your saves and account if you replace your hard drive in the new xbox

Robert Miller - 15/03/16

hola tengo un disco de laptop y quiero ponerle 100 juegos como puedo hacer la xbox me reconose el disco y todo lo configuro pero cuando conecto a mi pc para pasar los juejosel emulador no me deja

Cesar Tourreilles - 24/08/17

My fabric was accidentally ripped off years ago. What do I do?

org 2026 - 15/09/19

Stick another bit on there

Josh Cool - 22/01/21

Schritt 14

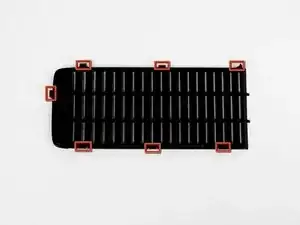

In the following steps, you will remove the bottom vent.
It is attached to the bottom panel by the seven clips shown.

Schritt 15

Orient the Xbox 360 S so that the hard drive port is facing up and the faceplate is facing to the left.

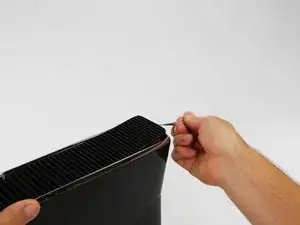

Insert a metal spudger between the black bottom vent and the silver rim of the bottom bezel, in the rear right corner of the vent.
Rotate the spudger away from the console, prying the vent up from the bottom bezel.
Be sure to rotate the spudger far enough so that the clips on the vent are lifted past the silver rim of the bottom bezel.

Schritt 16

In the same manner as described above, pry the two remaining clips on the bottom right edge.
All of the clips along both the right and front edge should now be free. If other clips have come undone as well, that is fine.

Schritt 17

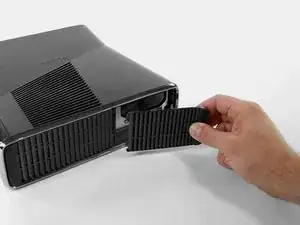

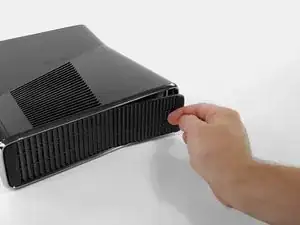

Remove the bottom vent by lifting it away from the bottom bezel.

Schritt 18

In the following steps, you will remove the bottom bezel, which is attached to the rest of the console by the six clips shown.

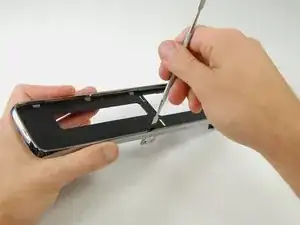

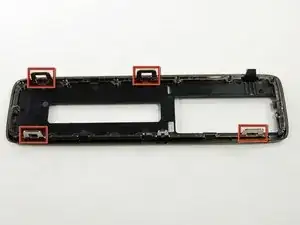

The clips shown in red can be detached by inserting a metal spudger underneath the bottom edge of the clip. Once underneath the bottom edge, simply prying away from the console will free the clip.

Schritt 19

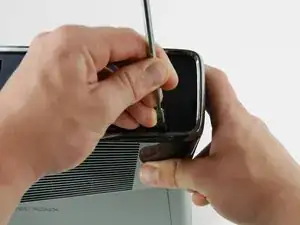

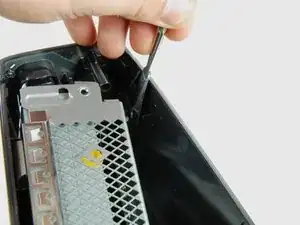

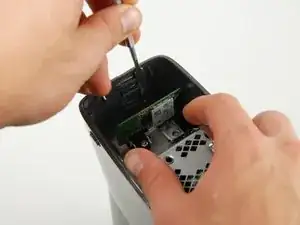

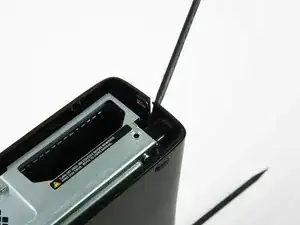

Insert a metal spudger through the slit near the rear left corner of the bottom bezel.
Rotate the spudger away from the device while lifting the rear bezel up with the other hand.
You may hear a "pop" signifying the clip has cleared its catch.

These are pretty awkward to remove, but once you understand how they work its easy enough. The goal here is to slot the spudger THROUGH the gap of the silver tabs (visible in previous steps image, circled) and then pry. Put pressure against the wall of the Xbox case and push downwards, once you feel the spudger slot in, then apply force away from the Xbox and pull up a little with your free hand.

Spaced Invader - 28/11/19

Schritt 20

Insert a metal spudger through the left middle slit of the bottom bezel, and between the bottom edge of the clip and the left case.
Simultaneously pull the bottom bezel up and rotate the spudger away from the console to free the clip.
In a similar fashion, free the clip at the front of the bottom bezel's left edge.
The entire left side of the bottom bezel should now be free.

Schritt 21

Turn the console around so that the faceplate is facing to the right and the right case is facing toward you.

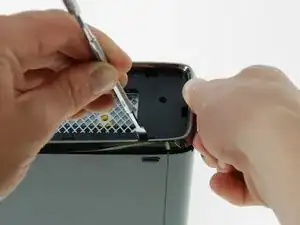

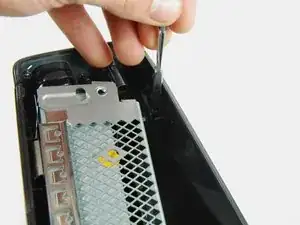

Insert the spudger into the rear-most slit on the right edge of the bottom bezel, and wedge it behind the clip by pushing the spudger down while pushing the tip of the spudger against the right case.
Simultaneously release the clip and pull the bottom bezel up.
This clip is especially hard to remove. Some force will be required to insert the spudger correctly.

Schritt 22

This clip does not have a slit in the bezel to guide you. You can locate the clip by looking under the bezel near the hard drive slot.
Insert a spudger between the silver rim and bottom bezel directly above the clip shown.
Release the clip while pulling up on the bottom bezel.

Schritt 23

This clip is smaller than the others and should not be removed from above like the others.
Lift the left edge of the bottom bezel up enough to gain clearance.
Insert a metal spudger behind the left edge of the last clip, and push the clip away from the right case.

Schritt 24

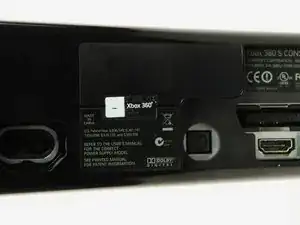

Opening your Xbox 360 any further will require breaking or removing the warranty sticker on the outer case. Your Microsoft warranty for any components not directly attached to the logic board will likely be voided by removing this seal.

Does not void the warranty in the United States according to the FTC that sent a cease and desist letter directly to Microsoft about this exact issue.

Jeff - 02/08/18

https://www.techdirt.com/articles/201804...

Jeff - 02/08/18

Schritt 25

Orient the console right-side up, with the faceplate facing toward you.
Locate the two clips connecting the right and left case along the top edge of the console, behind the Wi-Fi card.

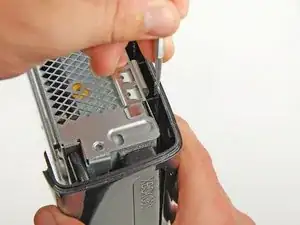

While pushing the left and right case away from each other with one hand, pry the clips away from the case with a metal spudger.

Schritt 26

Continue to hold the two cases apart to prevent the clips reattaching.
Insert a spudger between the right and left cases to hold them separate while you work elsewhere.

Schritt 27

Flip the Xbox over so the faceplate is facing left, and the left case is facing toward you.

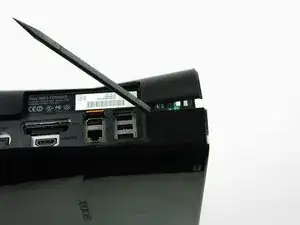

While pushing the left and right cases apart with one hand, free one clip located beside the hard drive slot.

Schritt 28

Continue to hold the cases apart to prevent the clips from reattaching.
Place another spudger between the left and right cases directly below the clip.

Schritt 29

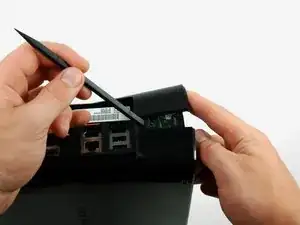

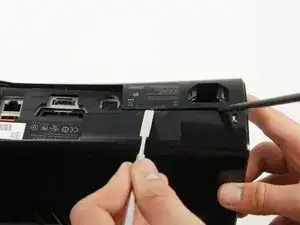

Insert the flat edge of a metal spudger between the left and right cases where the warranty sticker used to be.
Pry the left case upwards to form a gap between the two cases, and slide the spudger in toward the left case.
Rotate the spudger upward to release the last clip.
The spudgers holding the top and bottom clips apart may be removed.

if you make a hole right here like the link`s picture you can boot the lock

https://scontent-mia.xx.fbcdn.net/hphoto...

Midguet Garcia - 06/04/15

As the user above me said, please avoid doing it like shown in the guide. It just didn’t work on my Xbox (unless your goal is to destroy the plastic case). Instead, pick some small needle like object (the spudger was too short for this, I used the SIM bit of my iFixit driver kit) and find the right spot on the big sticker which is on the left in the pictures shown in the guide. That spot is just between the text and the column of logos (Dolby Digital, etc.) (https://team-xecuter.com/slim/slim_secre..., picture not mine). Poke it (don’t be too gentle, you have to apply some force) and you will hear the clip release.

Davide Volta - 26/07/19

Schritt 30

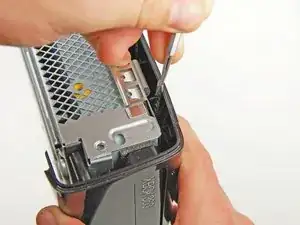

Release one clip in the front left corner of the top edge securing the left case to the faceplate.

Schritt 31

Flip the console over so the bottom is facing upward.

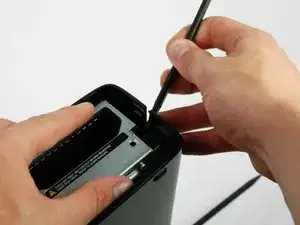

Release one clip in the front left corner of the bottom edge securing the left case to the faceplate.

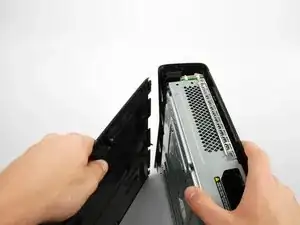

Rotate the left case away from the device to release the last two inner clips.
Remove the left case.

Schritt 32

Orient the console right-side-up, with the faceplate facing forward.

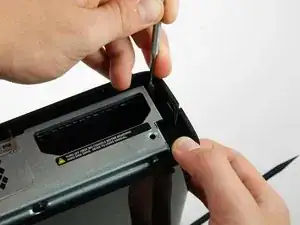

Release the clip near the front right corner of the top edge securing the right case to the faceplate.

There are 4 black screw that has to be removed before you can detach the other cover. Please note

emmoski4real - 30/01/17

Sorry, there 5screws, one in the middle and 4 at the edges

emmoski4real - 30/01/17

Schritt 33

Turn the console over, so that the bottom is facing upward, and the faceplate is facing forward.
Release the clip in the bottom right corner of the top edge securing the right case to the front case.

Schritt 34

Lift the left edge of the faceplate upward to release the last two clips securing the faceplate to the right case.
Detach the faceplate from the rest of the device.
The faceplate is still attached to the console by a thin ribbon cable. Do not attempt to completely remove the faceplate yet.

It is easier to perform step 40 before 34 (unscrew the long torx screws to make the right case flexible)

Peter - 29/12/14

Schritt 35

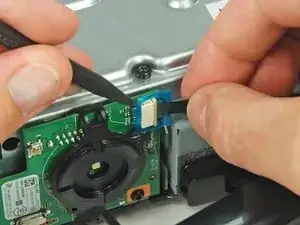

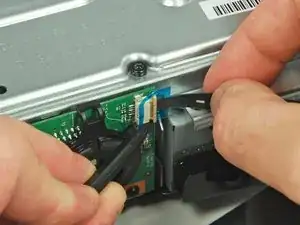

Using a spudger or fingernail, lift the clear blue tab away from the connector.
Slide the locking tab on the power switch board cable connector toward the top of the console.
The locking tab will only move about 2 mm.
Pull the power switch cable straight out of the connector.
The faceplate is now free of the rest of the console.

Schritt 36

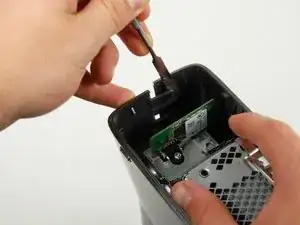

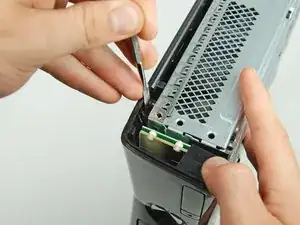

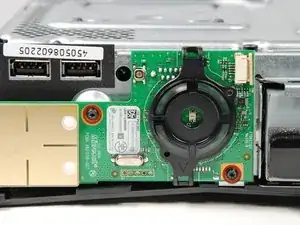

Remove the two 5.6 mm T8 Torx screws securing the RF module to the metal case.

On my disassembly during this part, I found the T9 Torx to be too big and had to use the T8 Torx instead.

weitmeyerj -

The correct size is T8!

thomasforster -

I guess you need to check for your own size : I used the TR9 as the TR8 was a little too loose.

sirmyself - 19/11/17

Schritt 37

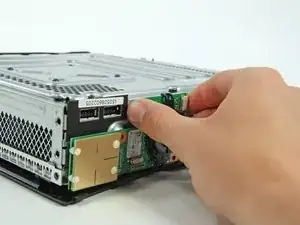

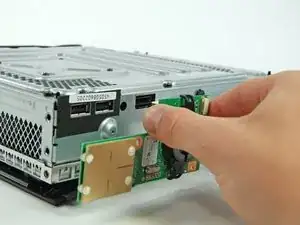

The RF module is still connected to the Xbox by a large USB-type connector.
Pull the board directly away from the Xbox to remove it.

This step is not needed.

Wade - 24/06/14

It may not be required but recommended. As you move the xbox around you could break this part. Removing it and placing it in a safe place keeps that from happening.

junkyardjojo - 16/07/14

Is the rf module married to the mother board? Im trying to replace the piece but dont want to start if it is not compatible.

jake - 21/01/16
