Xbox One Wi-Fi Karte austauschen

Geschrieben von: Andrew Optimus Goldheart
  • Kommentare: 81
Xbox One Wi-Fi Karte austauschen

Schwierigkeitsgrad

Mittel

Schritte

17

Zeitaufwand

20 - 40 Minuten

Einleitung

Ist deine Wi-Fi Empfang futsch? Kein Ping mehr? Hier wird dir gezeigt, wie du die Wi-Fi Karte austauschen kannst.

  1. fFCGnAVFSWO6MSIo

    • Um die Xbox zu öffnen musst du diesen Sicherheitsaufkleber auf der Rückseite ablösen oder am Spalt im Gehäuse aufschneiden. Aber keine Sorge - solange du nichts beschädigst, kann Microsoft nicht legal deine Garantie für ungültig erklären . Viel Spass!

    In the United States the Magnuson-Moss Warranty Act of 1975 is a Federal Law that states that stickers and clauses are illegal. It says you can open your electronics without voiding the warranty, regardless of what language of that warranty says.

    Dustin D'Amour -

    Stickers are illegal!?

    Brandon -

    For anyone concerned, if you apply heat with a blow dryer or heat gun you can carefully remove the sticker without damaging it, making it impossible to know that the sticker was ever removed.

    Kelton Stewart -

    All the immature comments aside, thank you Dustin for sharing the information.

    Wade -

    xbox를 열기 위해서 이러한 위조방지 테이프를 자르거나 떼어내야 합니다. 하지만 걱정 마세요. 여러분이 무언가 직접적으로 망가트리지 않는한 ms는 보증을 취소하지 않습니다.

    승대/SeungDae 정/Jeong -

  2. TSL4QNCOtv534Yqk
    TSL4QNCOtv534Yqk
    nCL6Av6fkN1uQMAu

    • Löse mit einem Öffnungswerkzeug aus Plastik das Kunsstofflüftergitter um die seitliche USB Buchse.

    • Das Gitter ist ziemlich flexibel und mit schwachen Plastikklammern befestigt - beginne an der Rückseitel und löse es allmählich ab.

    - 플라스틱 오프닝 도구를 애용해서 측면 usb 포트를 둘러싼 통풍구를 들어올려 분리하세요.

    - 이 통풍구는 무척 유연하며 연약한 플라스틱 클립으로 고정되어 있습니다. 뒤쪽에서부터 들어올려 분리하고 떼어냅니다.

    승대/SeungDae 정/Jeong -

  3. BLMgn4Ddrlxat2SY
    BLMgn4Ddrlxat2SY
    KaRwhVrrZiGkLdCK

    • Ein kleines Plastikstück verstärkt die vordere Ecke der XBox.

    • Schiebe das Plastikstück gerade nach hinten und entferne es.

    Do u sell that plastic tag I need it

    Brandon -

    Here is What's Stated in Step-3 : (There is a small plastic tab that reinforces the front corner of the Xbox.) Actually, the "Tab" is NOT SMALL at all. See the Picture: The "TAB" is the Piece that this Person has their Thumb on, is the Tab that you NEED TO SLIDE TOWARDS THE "REAR" of the Unit. You will be able to tell How this Large Tab Holds the Top and the Bottom Case Covers together. Take Note how to Replace this tab back where it Belongs, when you are putting the Case Covers back together. Hope that this comment will help you. 6-29-2017

    B.L. Spence -

    - xbox의 전면 모서리를 지지하는 작은 플라스틱 탭이 있습니다.

    - 뒤쪽으로 똑바로 밀어서 제거하세요.

    승대/SeungDae 정/Jeong -

    What is this small tab referred to as?

    What is it called i need to order one.

    James Lipsey -

  4. DmSmGaCLJiWlvSFm
    DmSmGaCLJiWlvSFm
    SSs6u5TVjnYrJyRo

    • Setze das flache Ende eines Spudgers zwischen dem oberen und unteren Gehäuseteil genau da ein, wo sie sich hinten an der Lüftungsöffnung treffen.

    • Dort befindet sich eine stabile Plastikklammer, die die beiden Gehäusehälften zusammen hält (die erste von vielen), du wirst etwas Kraft zum Lösen benötigen.

    • Lasse den Spudger eingesteckt bis das Gehäuse komplett geöffnet ist. Die Klammern sind sehr elastisch und können sonst wieder einschnappen während du arbeitest.

    prying does not work. my spudger is causing damage. my soft. plastic. spudger. and the %#*@ thing does not move. this is a common issue with the instructions on this site. you write instructions like you assume people have extensive repair experience. describe the plastic tab. add detail. because simply prying WILL damage the case. hire a %#*@ writer. cause you guys do not know how to precisely convey important detail. constant problem with tech companies actually. no writers.

    Kevin Michaels -

    - 벗겨낸 통풍구쪽부터 상판과 하판 사이의 틈으로 spudger의 평평한 끝을 밀어넣습니다.

    - 플라스틱 클립들이 꽤 강하기 때문에 생각보다 강한 힘을 사용해야 합니다.

    - 케이스를 완전히 열 때까지 spudger를 계속 끼워두세요. 클립이 강해서 작업도중 다시 닫힐 수도 있습니다.

    승대/SeungDae 정/Jeong -

    it would be very very nice that the part, that you sell, will Fix. This an ols Tutorial. The new opening tools that you sell, will not help anything, cause there is no flat sign on the side. you link these tools at this tutorial, but never tested, if the new tools work. so i tell this you, no they dont fit. Thanks for nothing.

    Zeroslammer -

    I ve made it this far with only a Lego membership card and a flimsier amusement park card (I'm a big year old)

    Shadow Killz -

    I had to use a 1/32nd flathead screw driver. In the corner to get it started push the top joint of the case down and up will simultaneously pulling up and down to seperate the seam. You will need a 3rd hand to insert the 1/32nd flathead and pry up to get the case started.

    I had a virgin never opened xbox day one og so that might be why I had to do it this way.

    KSI AZZAZLE -

    even the wikihow instructions are better

    Ethan Banks -

    It’s easier if you push the top empty area part of the plastic with your finger, and stick the spudger about 3/4” (2 cm) away from the back of the xbox and start prying. You have to do this because that is the only spot where there are no clips in the way. If you do any less or more distance, the clips are in the way, and you’ll never be able to pry open the Xbox because the tool can’t get in.

    Saul Torres -

    A youtube video I found explains this step better. You are meant to pull up on one half and push down on the other, this separates the two halves. Then use a spudger on the rear of the console to separate the clip right under the warranty sticker, then move down the back of the console to the other clips

    Zachary Avery -

  5. ogjOrFJJcnxckrPw
    ogjOrFJJcnxckrPw
    JcHGErqMBV2dtooS

    • Die Verbindung zwischen oberer und unterer Gehäusehälfte ist durch einige Klammern auf der anderen Seite und der Rückseite gesichert.

    • Setze ein Öffnungswerkzeug aus Plastik zwischen das obere und untere Gehäuse, um die Klammer über der hinteren Lüftungsöffnung zu lösen.

    - 상판과 하판 사이에 끼인 후면 단자판은 여러개의 클립으로 고정되어 있습니다.

    - 플라스틱 오프닝 도구로 후면 통풍구의 클립들을 분리하세요.

    승대/SeungDae 정/Jeong -

  6. WhqL5lXoOtd5OkSa
    WhqL5lXoOtd5OkSa
    a5dTIdSMJqCQ6NHL

    • Fahre weiter ringsum die Rückseite der Xbox fort, um die Klammern zu öffnen.

    • Lasse den Spudger an Ort und Stelle in der Lücke, um die Klammern offen zu halten, die sehr leicht wieder einschnappen, auch wenn die Lücke grösser als der Spudger ist.

    - 후면을 따라서 계속 클립을 들어서 분리하세요.

    - spudger가 제대로 꽂혀 있는지 중간중간 확인하세요. spudger가 빠질정도로 케이스가 분리 되더라도 남은 클립들이 매우 탄력적이라서 방심하면 도로 닫히기 십상입니다. 원활한 진행을 위해 spudger가 잘 꽂혀서 사이를 벌리도록 유지하세요.

    승대/SeungDae 정/Jeong -

  7. v5JQjSLJyhE3W2hY
    v5JQjSLJyhE3W2hY
    CAl1npTqiKdrFpqG

    • Fahre fort Klammern zu öffnen. Dabei ist es hilfreich mit dem Öffnungswerkzeug aus Plastik direkt über die Klammern zu fahren.

    • Wenn du ans Ende der Rückseite gekommen bist, müsste die obere Hälfte herauskommen. Wenn nicht, fahre mit dem Öffnungswerkzeug um die Ecke und löse die Klammern auf der Seite ohne USB Buchse.

    - 클립들을 계속해서 분리합니다. 클립들을 가로질러 플라스틱 오프닝 도구를 주욱 미는 것이 도움이 될수도 있습니다.

    - 후방 케이스를 따라 분리하면 상판이 열릴 기미가 보여야 합니다. 만약 열릴 기미가 보이지 않는다면 모서리부터 플라스틱 오프닝 도구로 분리를 시작하고 usb포트가 없는 쪽을 따라서 클립 분리를 다시 시도하세요.

    승대/SeungDae 정/Jeong -

  8. Bc1SKUHI3FWBknsV
    Bc1SKUHI3FWBknsV
    VkjRDdLoOFC4P3LT
    bxFDQqHFvjiMAqOl

    • Beginne mit dem Spudger, der noch in der Lücke steckt. Hebel das obere Gehäuseteil hoch, um die letzten Klammern zu lösen.

    • Drücke noch nicht gelöste Klammern mit einem Plastiköffnungswerkzeug auf.

    • Hebe die obere Gehäusehälfte noch nicht ab, da sie noch am Kabel des vorderen Bedienteils hängt.

    • Hebe das obere Gehäuseteil leicht an und schiebe es ein bisschen weg um an das vordere Bedienteil zu kommen.

    I got confused here. I couldn’t unclip the front panel at all. I found out that if I open the case like a clamshell (or a book, with the front being the spine of the book) I popped right off easily.

    Omar Ramos -

    Yeah, I saw your comment afterwards but this is exactly what I ended up doing as well. just a note for anyone reading this be careful of the flex cable as it does seem to put a questionable amount of strain on it when you open it in this manner.

    Graham Holt -

  9. sQaX6NR2yUNmcpZE
    sQaX6NR2yUNmcpZE
    5idQPgXXOnPUgTuE
    JpmqCQgvktBT6IZW

    • Das Kabel zum Bedienungsteil hat einen einzigartigen ZIF Verbinder - beachte die nächsten Schritte genau, um ihn ohne Schaden zu lösen.

    • Über dem Verbinder ist ein blauer Plastikbügel. Hebe ihn mit einer Pinzette über den weißen Verbinder.

    • Nimm die Spitze eines Spudgers um die Lasche, die den Verbinder festhält zum Kabel hin zu schieben und damit zu entriegeln.

    I recently took my Xbox one apart to clean it and for some reason it's on for a couple minutes then it cuts off

    Ali -

    Or anyone else who has this problem or reads this on this thread, which is not the correct thread for this question by the way, here is a link to the forum for that. It could be any of a number of issues including overheating, Portland elation, or infestation, among others.

    Xbox One turns on then turns off after a few minutes

    Rooster Blue -

    Is there somewhere that I can buy a replacement zif connector

    Black Light -

  10. AHFqUGqKrLOvs6Mw
    AHFqUGqKrLOvs6Mw
    UKFO6I2mNG5CuVx1

    • Mit einer Pinzette kannst du das Kabel nun vorsichtig aus der Buchse ziehen.

    • Entferne das obere Gehäuseteil.

    I broke that peice that white connector peice what can I do?

    devinthomason -

  11. 2FCYpEe2HZMronDK
    2FCYpEe2HZMronDK
    jg6d6lTGcEVZjWCq
    6LxAZJy1HGaIBKUj

    • Die nächsten vier Schritte sind wichtig beim Zusammenbau. Für den Ausbau kannst du sie überspringen.

    • Benutze das flache Ende des Spudgers, um die Klammern zu lösen, die das Front Panel an der oberen Gehäusehälfte festhalten.

    • Entferne die vordere Verkleidung vom oberen Gehäuseteil.

  12. kANCmbqNSW4gTaKm
    kANCmbqNSW4gTaKm
    fJSHsP4srEitpBI1
    rXaw12h6dMmByhSk

    • Setze das Oberteil wieder auf.

    • Bringe die Klammern in Position und drücke sie fest, um sie ringsum wieder zum Einschnappen zu bringen.

  13. mlcHYVINYhfQhGKJ
    mlcHYVINYhfQhGKJ
    lVXM56UFy2OiQAuD
    4K2KXjxGnI2JJOCH

    • Halte das Front Panel nahe der Vorderseite der Xbox fest.

    • Mit einer Pinzette kannst du nun das Kabel des vorderen Knopfes wieder in den ZIF Anschluss einsetzen.

    • Mit der flachen Seite eines Spudgers sicherst du den ZIF Stecker indem du den Bügel wieder nach links drückst.

    My Xbox stopped working after this thanks

    nathan jackson -

    Mine did as well, its possible it may be the same reason. For me I had to unplug and plug it back in a few times and then clean off the contacts with isopropyl alcohol. Seems simple but if you haven’t already, I would try it.

    Alex Pascone -

  14. Iesh2ypKDM2MNTFi
    Iesh2ypKDM2MNTFi
    AKpcaAwyYcAC5k6H
    xOdLB1rAhB1shyVI

    • Die Unterkante des Front Panels hat Plastikhaken, die in die entsprechenden Haken des unteren Gehäuseteils eingreifen.

    • Bringe das Front Panel in einen Winkel von 45 Grad und verzahne seine Haken mit denen des unteren Gehäuseteils.

    • Drücke die Oberseite des Front Panels in die XBox hinein, so wie man einen Briefkastendeckel schließt. Drücke fest so dass die Klammern, die das Front Panel mit dem oberen Gehäuseteil verbinden, sicher einrasten.

  15. N2kF6LN1XEhZ5tUW

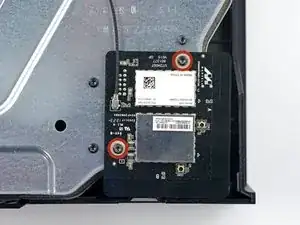

    • Entferne die beiden 9,5 mm Torx T9 Schrauben von der Wi-Fi Karte.

  16. pcZQIYSXYuicgOGt

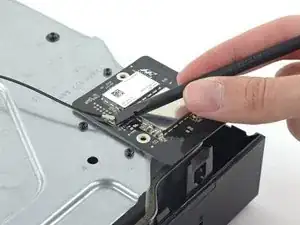

    • Löse das Wi-Fi Antennenkabel mit dem flachen Ende des Spudgers aus seinem Sockel auf der Wi-Fi Karte.

    does anyone know how to soder the wire for the wifi board

    Cameron Harvey -

  17. LQS3AbrDhJDuwuQp

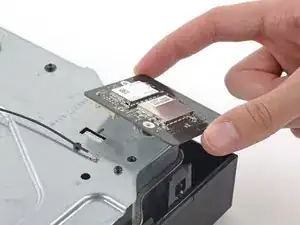

    • Hebe die Wi-Fi Karte gerade nach oben, um sie so aus ihrem Verbinder zu ziehen und entferne sie von der Xbox.

    My cable snapped what do I do

    Gavin -

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
