Xbox One Wireless Controller (Model 1914) Joystick Caps Replacement

Geschrieben von: Kyjuan Cannady
  • Kommentare: 0
Xbox One Wireless Controller (Model 1914) Joystick Caps Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 - 20 Minuten

Einleitung

This replacement guide is based on the Xbox Series S Model 1914 controller. There are certain situations where the joystick caps on the controller could become very sticky and/or become hard to move. That’s why it is important to change them or clean them every once in a while. That is what I’ll be explaining in the guide.

  1. GwVVyTC2igtVVILG
    GwVVyTC2igtVVILG
    XmZLMG1NGT2fkkP6
    HJCfiqgHXblXDATW

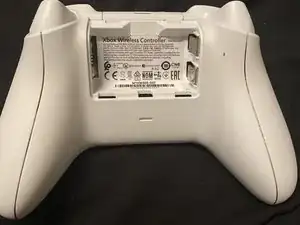

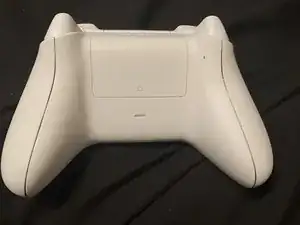

    • Open the back of controller by sliding the battery cover upwards.

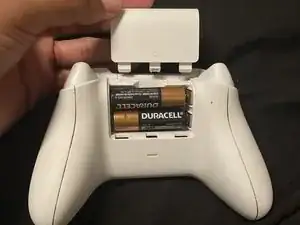

    • Remove the batteries from the controller.

  2. NtVVrucKmdLhqASO
    NtVVrucKmdLhqASO
    5eOgYZNBD1MjvBY3

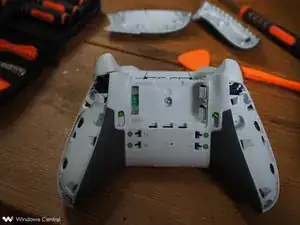

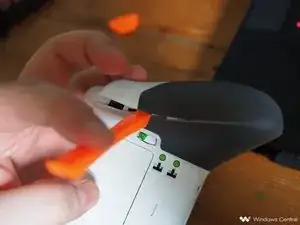

    • Use an opening tool to pry both side plates open.

  3. QvwPAyr3HggGQiUP
    QvwPAyr3HggGQiUP
    1QyIGbaNmrtD2aDJ

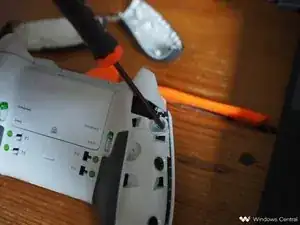

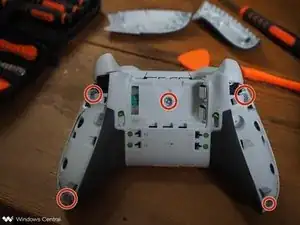

    • Punch a hole in the center of the sticker to find hidden screw. Then remove the screws with the Torx TR9 screwdriver.

    • All the the screws are the same length so they are all interchangeable for each of the five spots when screwing them out.

  4. lJnAIEy6UiLdYMeL

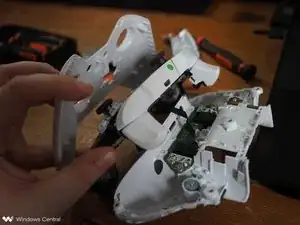

    • Remove the front plate of controller.

  5. 3KRpUdYiCAFRbrWJ

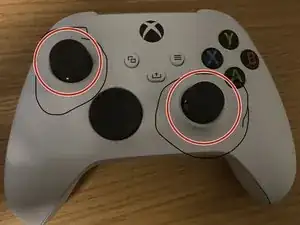

    • Pull the joysticks off the controller to either clean them or replace them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
