Xelio P900A-BK Power Button Replacement

Geschrieben von: Alisha Soriano
  • Kommentare: 0
Xelio P900A-BK Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

Broken power button? Just want to mess with it? Here's a guide for that.

  1. wE5iJMFnb6QkYavu

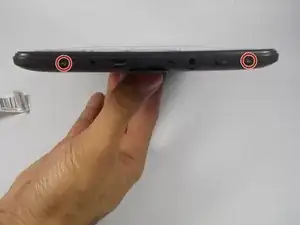

    • Using a Philips screwdriver, remove the two 2.44 mm screws from the back plate of the tablet.

  2. AJWMBgYDXFy1HKoK
    AJWMBgYDXFy1HKoK
    Tx3DCGpHUOE2ACJI
    SNHmFDIrtueToyUW

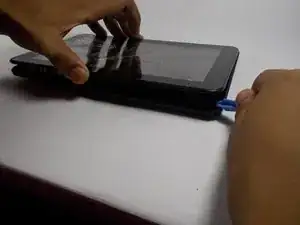

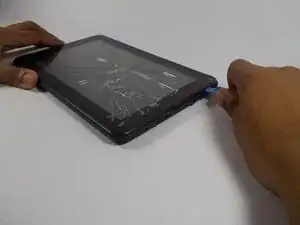

    • Using a plastic opening tool, pry the back cover from the screen.

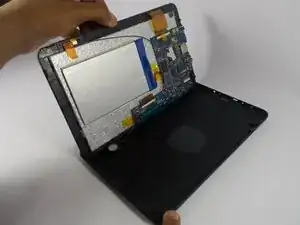

    • Gently separate the two sides.

  3. bPO23AVVaoILrESd
    bPO23AVVaoILrESd
    2trCtxtwixj1txQa

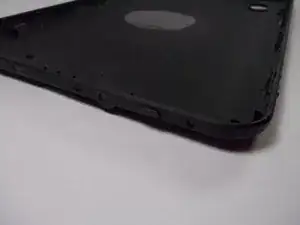

    • Push on the old power button to remove it and install the new power button.

    • There are no wires connecting the power button to the device. It should come away easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.
