Einleitung

Use this guide to remove the back of your Xiaomi Air 12.

  1. i6Pov1VClnkVXAbB

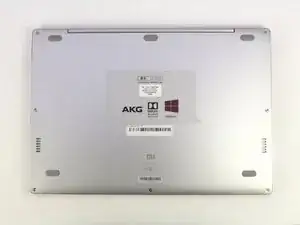

    • Orient the computer so the Xiaomi logo is at the bottom of the device.

    Hello,

    I have a problem on my Mi air 12 , specifically with the lcd cable port on the mother board. I want to replace it but i can’t seem to find where to buy the parts.

    Pleas help me

    Kind regards

    L.

    lanusjeleus -

  2. mVYLPcyT3JTCsjsn
    mVYLPcyT3JTCsjsn
    dXEbVHMAUuLt16aZ
    HNNG5AxJksENWCAM

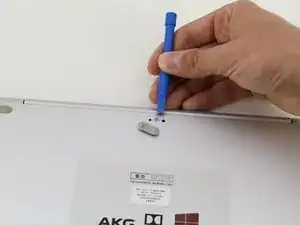

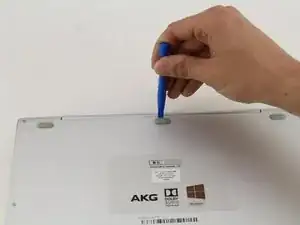

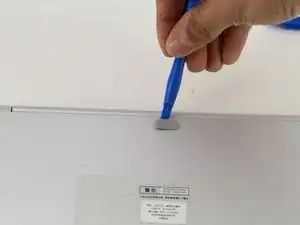

    • Insert the plastic opening tool underneath the top-middle rubber covering and lift upwards to reveal the hidden screw.

  3. WbYRWVkOADoaTEiJ
    WbYRWVkOADoaTEiJ
    bwuEyhmZ1YEFsyoQ

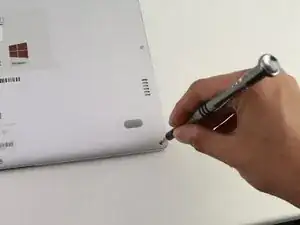

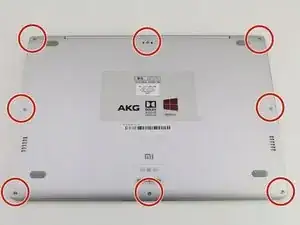

    • Remove the eight 3 mm screws using the Torx T5 driver by inserting the screwdriver into each screw and rotating counterclockwise.

  4. mNlUVPVVwAO3Cmof
    mNlUVPVVwAO3Cmof
    RwBNkoCCmgH6uAom
    XaddoYG45ovrPLFU

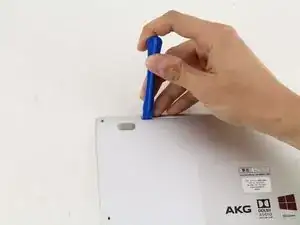

    • Insert the plastic opening tool into each side of the computer and push the tool downwards to pop open the back cover.

    • You will hear popping noises as you remove the cover.

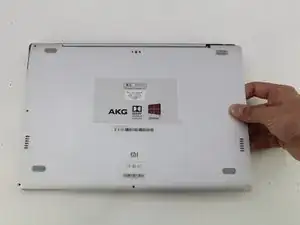

  5. gbrgFwNuWUTkZM6s
    gbrgFwNuWUTkZM6s
    LnKHhIQgg1v5LYFZ

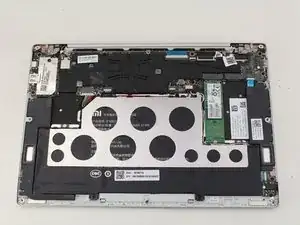

    • Remove the back of the laptop by gently lifting the casing upwards.

Abschluss

To reassemble your device, follow these instructions in reverse order.
