Xiaomi Air 12 SSD Replacement

Geschrieben von: Hannah Kwan
  • Kommentare: 3
Xiaomi Air 12 SSD Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 25 Minuten

Einleitung

Use this guide to replace the SSD in your Xiaomi Air 12.

  1. i6Pov1VClnkVXAbB

    • Orient the computer so the Xiaomi logo is at the bottom of the device.

    Hello,

    I have a problem on my Mi air 12 , specifically with the lcd cable port on the mother board. I want to replace it but i can’t seem to find where to buy the parts.

    Pleas help me

    Kind regards

    L.

    lanusjeleus -

  2. mVYLPcyT3JTCsjsn
    mVYLPcyT3JTCsjsn
    dXEbVHMAUuLt16aZ
    HNNG5AxJksENWCAM

    • Insert the plastic opening tool underneath the top-middle rubber covering and lift upwards to reveal the hidden screw.

  3. WbYRWVkOADoaTEiJ
    WbYRWVkOADoaTEiJ
    bwuEyhmZ1YEFsyoQ

    • Remove the eight 3 mm screws using the Torx T5 driver by inserting the screwdriver into each screw and rotating counterclockwise.

  4. mNlUVPVVwAO3Cmof
    mNlUVPVVwAO3Cmof
    RwBNkoCCmgH6uAom
    XaddoYG45ovrPLFU

    • Insert the plastic opening tool into each side of the computer and push the tool downwards to pop open the back cover.

    • You will hear popping noises as you remove the cover.

  5. gbrgFwNuWUTkZM6s
    gbrgFwNuWUTkZM6s
    LnKHhIQgg1v5LYFZ

    • Remove the back of the laptop by gently lifting the casing upwards.

  6. YOK4lOqIGGA1HGAn
    YOK4lOqIGGA1HGAn
    14Uw6EcPEFNZnY1c

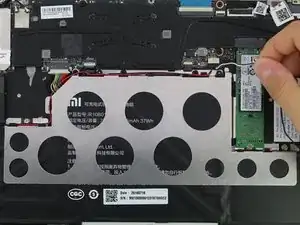

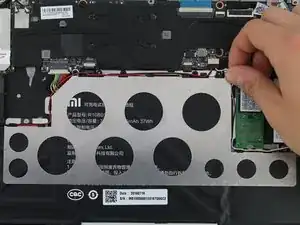

    • Detach the white and black speaker wires by pulling them from the small black tabs along the perimeter of the metal bracket.

    Would be nice if I found somewhere a replacement for the Mainboard….no luck so far and Xiaomi does not sell.

    Mk k -

  7. D5VxxRWZTFJOlE3r
    D5VxxRWZTFJOlE3r
    pBf6Qe5U1bxGHDXs

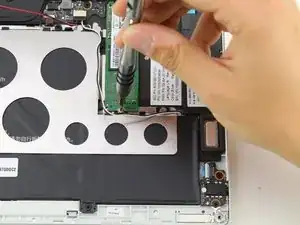

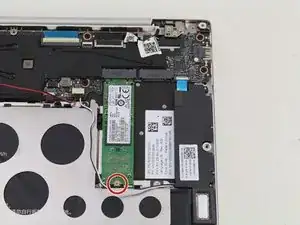

    • Remove the 1.5mm screw using the JIS #00 screwdriver.

  8. Z1GuyeV4QrcoqeFS
    Z1GuyeV4QrcoqeFS
    bdtkTuDyKxfctFfu

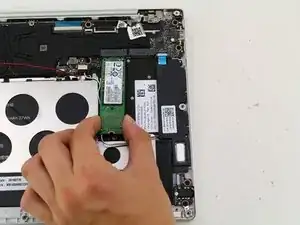

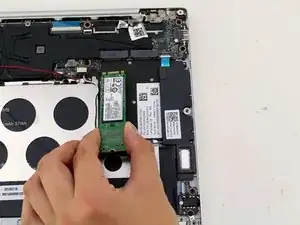

    • Lift the SSD up from the device and gently pull the SSD from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
