Xiaomi Air 12 Speaker Replacement

Geschrieben von: Hannah Kwan

Kommentare: 7

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

10 - 20 Minuten

Einleitung

Use this guide to replace the speaker in your Xiaomi Air 12.

Werkzeuge

Schritt 1

Orient the computer so the Xiaomi logo is at the bottom of the device.

Hello,

I have a problem on my Mi air 12 , specifically with the lcd cable port on the mother board. I want to replace it but i can’t seem to find where to buy the parts.

Pleas help me

Kind regards

lanusjeleus - 03/02/20

Schritt 2

Insert the plastic opening tool underneath the top-middle rubber covering and lift upwards to reveal the hidden screw.

Schritt 3

Remove the eight 3 mm screws using the Torx T5 driver by inserting the screwdriver into each screw and rotating counterclockwise.

Schritt 4

Insert the plastic opening tool into each side of the computer and push the tool downwards to pop open the back cover.
You will hear popping noises as you remove the cover.

Schritt 5

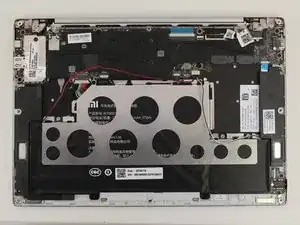

Remove the back of the laptop by gently lifting the casing upwards.

Schritt 6

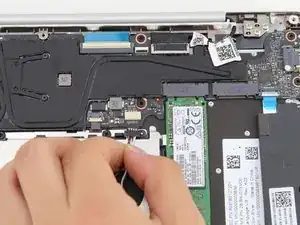

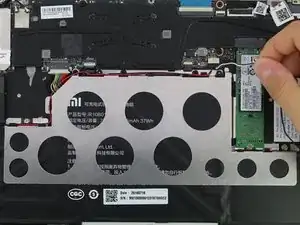

Remove the white and black speaker wires from the black tabs by pulling upwards from the device.

Schritt 7

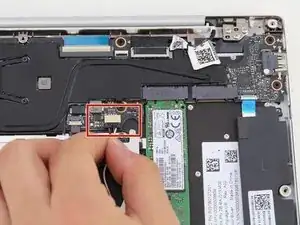

Gently pull the speaker connector out from the connection point using your hand.

Schritt 8

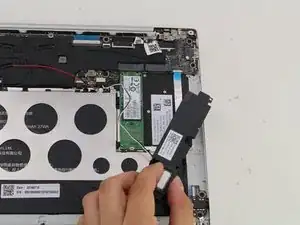

Remove the left speaker module by pulling the panel up from the device.
Repeat the same process for the right speaker module.
Left and Right speaker modules are denoted by an "L" and "R" respectively.
There will be a slight adhesive underneath the module.

Abschluss

To reassemble your device, follow these instructions in reverse order.

6 Kommentare

Thanks for the tutorial! But where can i buy replacement speakers? My right speaker is overdriving all the time now, giving me a lot of loud buzz noises.

Nicolai - 20/09/18

The same for me. I’d like to replace the speakers because one of them is “crackling/vibrating”, but i don’t know where to buy them…

Maniac 45 - 19/05/19

same problem, mine at >50% vibrating very bad

isman87 - 05/03/20

have you found them? i need those too

Giorgio Pianesi - 09/04/20

Hello, i love this laptop and its been my companion for almost 3 years think the audio input jack got grounded because i heard a creaking sound when i inserted a metallic headset jack, the device was charging when it happened. Now the audio output from the audio jack port is like a minus one or somewhat instrumental. Any suggestions what to do?

James Prae Liclican - 03/10/20

Left speaker not working so i need a replacement part. Wrote to xiaomi but no answer yet.

konrad baniel - 04/11/20
