Xiaomi Mi 3 Touchscreen Replacement

Geschrieben von: Marcel Robert
  • Kommentare: 60
Xiaomi Mi 3 Touchscreen Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

30 Minuten

Einleitung

Replacing the screen and LCD is a complete tear down...

  1. ruSFkRYiZWVORjIn

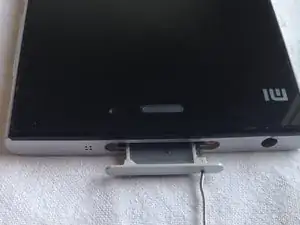

    • To start, it is needed to remove the SIM tray. You will find 2 (two) small Phillips screws. Make sure to understand that opening the orange one will void the warranty.

    Is it possible to renew the digitizer glass without removing the lcd unit?

    Abdullah Ince -

    not with domestic tools

    Marcel Robert -

  2. kGDSIwPr6vnkZQou
    kGDSIwPr6vnkZQou
    sOkygBjuStedfHHd

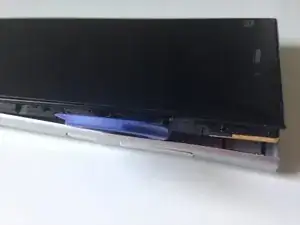

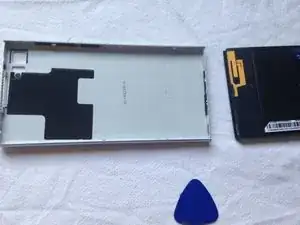

    • Using the guitar pick, unclip the back cover. Quite difficult on newer model, use more than one pick.

    • Easier way to go in is to slide in between volume and power button. This is the softest part of the back cover. The first clip is just a bit further up to the volume + button. So gently lift up to release the first one. You will maybe break one or two bigger clips. But it will clip back just fine with the smaller clips.

    • Otherwise, buy a replacement back cover before. Use guitar pick push the cover away from the frame to avoid breaking bigger clips while closing back.

    • Unclip both upper and lower part to get lower part easily out. Check out the back cover photo to identify the clip position.

    The guitar clip was not enough to take out the clip. Please suggest a better way

    Hariprasad -

    It is enough, but you need not to fear to go in and move the clic from the phone to out.

    It will gently open

    Marcel Robert -

    where to buy a screen for mi 3?

    dettiedette -

    Please check message on your first question

    Marcel Robert -

    i want display of mi ce0700

    Bhuvan Patel -

  3. RKuFXmBMY5Pe1fkq
    RKuFXmBMY5Pe1fkq
    XGnvUmYwGGHhMvcD
    UufsuTvUu3hpKjJ2

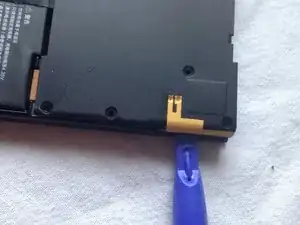

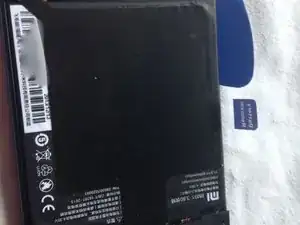

    • At this point, we could try to take the battery out removing the NFC sticker antenna. It will surely destroy the antenna. That is why it is recommended to remove the battery and the NFC antenna together at once. Also because you did not notice the battery ribbon clip that is also hidden under this cover.

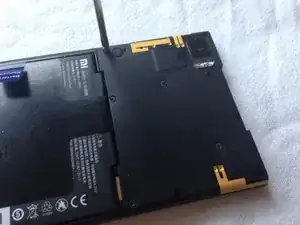

    • Open the eight (8) Phillips screws to remove the plastic cover of the motherboard. I recommend not touching the golden ribbons there. These screws also hold the motherboard. Two screws underneath will secure it, so have no fear at this point. The upper right screw is covered with a Mi logo on new model and it is not easy to access...

    • Beware! The NFC is glued to the cover. So do not pull the cover forcefully. It will come easily at the next step.

  4. x1fhQwNtn6xTWu1M
    x1fhQwNtn6xTWu1M
    Ko4iEOEnXOouQB5d

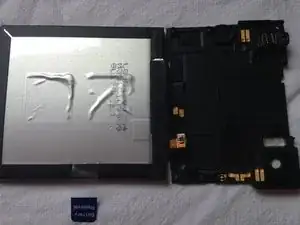

    • Lifting gently the cover no more than 90°, unclip the battery ribbon.

    • Let the cover go down over the motherboard without clipping it again.

    • Release now the battery and the plastic cover will come along.

    The battery was not coming out after unclipping the ribbon. Its like it is stuck to something.Please help

    Hariprasad -

    Hello, it glued underneath so pull gently the "battery removal" plastic to extract it. Once it is a little out you may help with guitar plug.

    Marcel Robert -

    I found out that old credit card is doing the job even better.

    Marcel Robert -

  5. xISM3g6sxbUtgD1C
    xISM3g6sxbUtgD1C
    EwwOxmQViIIMMcqi
    hdOCkOmIAvdQ2mCV

    • Let's unclip screen ribbon then dock ribbon. Finally the antenna clip.

    Nice keep it up

    krishna -

    Please can you take HD picture of the motherboard circuit and send it to my E-mail : avishek.kumar157@gmail.com or post it in here. It will be of great help. Thank you.

    Avishek Kumar -

    I was very careful removing the Bluetooth antenna connector, but the motherboard side of the connector separated from the motherboard and destroyed the connector, with the tiny motherboard piece of the connector still attached to the antenna connector, perhaps the solder was weak there, not sure. Please be careful! I will try to glue it, but I will probably need a new motherboard.

    David Ricketts -

    I am sorry this happened to you. I have no solution to provide.

    Good luck

    Marcel Robert -

  6. gTGLY6i6eWbNPco4
    gTGLY6i6eWbNPco4
    b3Xw3jwUOMI1YhQe

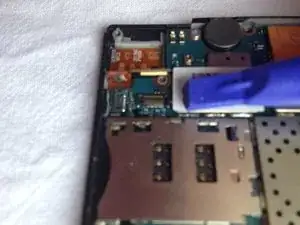

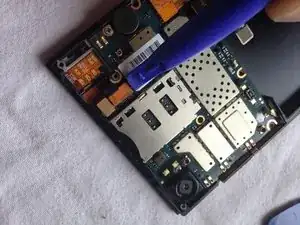

    • Unclip the upper screen ribbon. Then, unclip the jack ribbon.

  7. A1tmZObIwavXnTwe
    A1tmZObIwavXnTwe
    tCkRYnp5HR3OVNY4

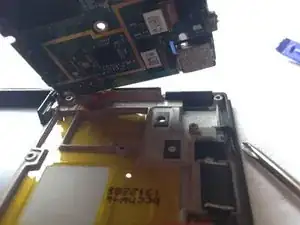

    • Unscrew the two (2) last Phillips screws that hold the motherboard. One is next to the black circle (vibrator) and one is next to the camera.

    • Super gently lift up the motherboard as the volume and power ribbon is clipped underneath. Lift it from the vibrator area so you may access to the clip. If the factory glue is correct enough, it will unclip by lifting the motherboard. JUST BE CAREFUL or buy a volume power with your screen.

  8. JfQMSUo4YEQ4X5VQ
    JfQMSUo4YEQ4X5VQ
    JB1dFGJQVLskbDjJ
    gouN63Ej2PEsmD1A

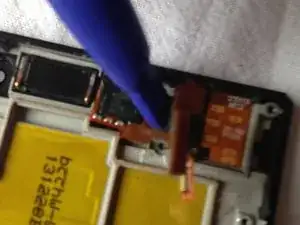

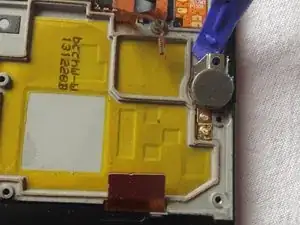

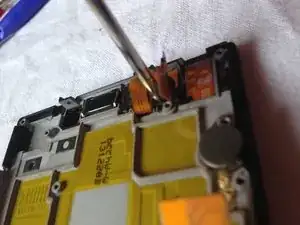

    • Remove the vibrator by lifting it up with a plastic tool. It is only attached with double-sided tape.

    • Remove the screw hidden between the jack and upper screen ribbon. This holds the proximity sensor and jack ribbon. That you can take gently away (don't break it).

    • Take the speaker out. This is easy.

    Can you please add better picture for removing speaker.

    Hariprasad -

    There is two ways : return the frame upside down... It will fall. Otherwise, just use à metal piece (knife, cutter, flat screw driver and the speaker will be extracted by its magnetic field

    Marcel Robert -

    I just finished replacing the LCD, everything works perfect except the proximity sensor. I installed sensor kinetics app and it shows sensor is there but it is not active. I fixed it properly but don't know why it is not working.

    Fizspace -

  9. 3kEqBXdFoM2JkRHy
    3kEqBXdFoM2JkRHy
    WyP2SYmDLqtZtJRK

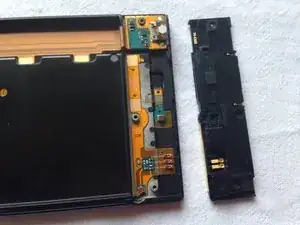

    • Three (3) small screws quite visible are to be removed.

    • Use mediator on the upper left dock to unclip it from up to down. Voilà...

  10. vUCAhTBXMbqwTla5
    vUCAhTBXMbqwTla5
    XEFKqPQnrEPImkbI

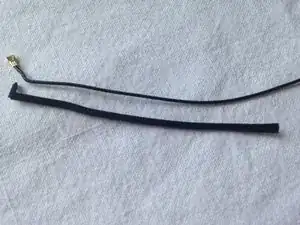

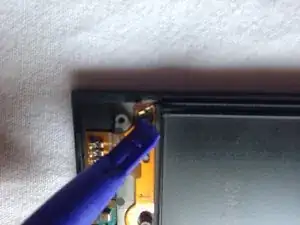

    • The antenna wire has to be unclipped.

    • By pulling slowly the wire just unclip, you will take out the plastic rubber that keeps the wire in place. Take them away both.

    • Be very careful not to damage the wire in order to avoid "No service" case.

    i got no service the antenna i soldered it back no service :( i tried what should i do do i need to replace it with new antenna wire?

    juls.de12 -

  11. 65gZVvyEUKGNIklH

    • After some comments and a new action on the Mi 3, I discovered that some of you may have not correctly clipped back the antenna wire (step 5.3 and 10) or damaged the wire. These are the only "material" reasons for the no service.

    • If correctly clipped, try to order a new antenna wire. If still no service, then it is a software issue.

  12. tNJJI2idBOVxroXB
    tNJJI2idBOVxroXB
    RcO46YM6LkiaDDoO

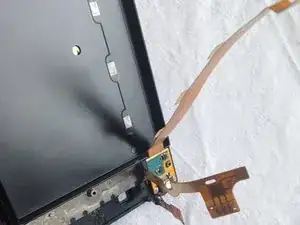

    • The lower ribbon is in one piece. Remove it very carefully with plastic tools to prevent cuts. On newer phone, the glue is strong, so take your time...

    • Finish by the USB dock helped by the rest of the wire to lift it with a plastic tool.

    • If you bought volume ribbon, you are done. Otherwise, take it away with a cutter blade from the top of the phone.

    theres a lot of silver glue tape below the ribbon that wont come off after I have removed the ribbon. Any advice on how to get it off?

    Robert Terlevic -

    Wow, that is surprising. I would lift it up veeeery carfully with a tool like i used in step 12.

    If not coming off i would leave it there and remote that same glue from the frame and use a small amount of contact glue

    Marcel Robert -

    hello you suggested to buy screen from aliexpress.com. can you please suggest some other trusted supplier? thank you in anticipation

    JAYESH -

    you can try this www.etradesupply.com

    bonbon321 -

    Dear bonbon321,

    I do not think that etradesupply is doing it because you will not get frame assembly but just lcd. Gluing lcd to the frame is an verrrrry hard chalenge and much more work.

    I do not know other site.

    Marcel Robert -

  13. QhCU2GPRj4GrIafC
    QhCU2GPRj4GrIafC
    XMsnhkjaCAf1DHja
    IxXEOhOH3dHK6oDS

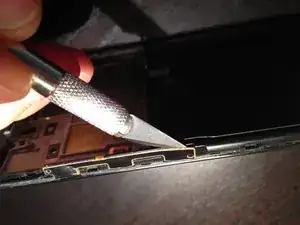

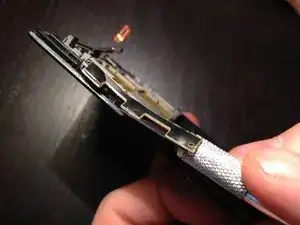

    • As promised, this is an extra step for the sound and On/off ribbon. Be sure to get a very slim blade to take it off (not so sharp to avoid cutting the ribbon).

    • Of course, be sure to slide it in running along the metal (black). Otherwise, the blade will separate the buttons from the ribbon.

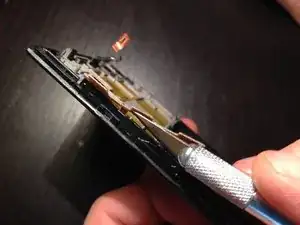

    • Lift it up gently to get the connector of the ribbon out. If you fold the ribbon in this operation, it will not work correctly. It is best to order one with the touch screen (2 US $ more or less).

Abschluss

To reassemble your device, follow these instructions in reverse order. BE SURE to buy a replacement touchscreen + LCD + Frame + stickers included at once. Disassembling the touchscreen only is super difficult.

It is recommended to buy volume power button at once because it is very cheap and easily damaged.
