Xiaomi Mi A2 USB Port Replacement

Geschrieben von: Erica Ko
  • Kommentare: 2
Xiaomi Mi A2 USB Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

Overtime, dust and other dirt particles can accumulate in the USB port. When the USB port is dirty, your phone may not be able to charge. If you’ve cleaned the USB port and your phone still does not charge, you may need to replace the USB port.

Since you need to open up the screen in order to access the USB port, please follow our screen replacement guide before taking further steps.

  1. WXx3VT6SlcHYHNsI
    WXx3VT6SlcHYHNsI
    yIaWH3G6rGJvCfRd

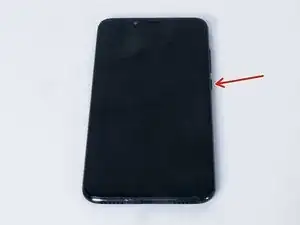

    • Turn off your phone before proceeding.

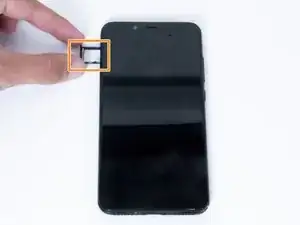

    • Remove SIM card tray from phone.

    • Touch something metallic to ensure you are electrostatic safe.

  2. hAwtQ1OwZ1EJiuSw

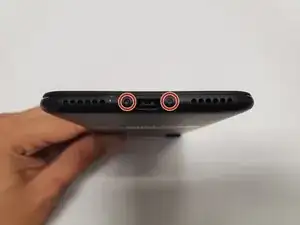

    • Remove the two 2.7mm Pentalobe #2 screws from the bottom of the phone.

  3. O1wSADqFtSLFC1qm
    O1wSADqFtSLFC1qm
    ietXklT6VGmCCd56
    agkREsChIbgQuAvG

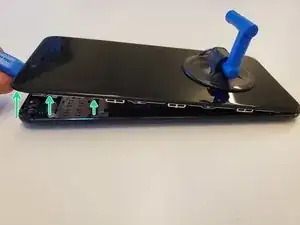

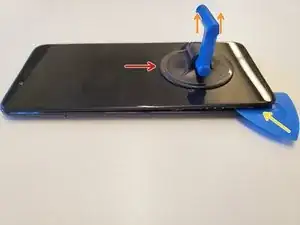

    • Grab a suction cup tool and place it near the bottom of the phone.

    • Pull up on the suction cup to slightly lift the LCD Panel from the body of the phone.

    • Starting from the bottom, slide in a plastic opening tool between the gap of the LCD and the phone.

    • Using a combination of the plastic opening tool and picks, slide around the gaps to unhook the clips, unhinging the panel from the body of the phone.

    • Flip the phone screen towards the bottom of the device and lay the screen facing down.

    • Note: The ribbon cable is in the middle of the panel, thus there is no need to be cautious about snagging a ribbon cable

  4. ajfRVeLwflsO6gk6
    ajfRVeLwflsO6gk6
    J6hbhZJNGrTU5BlZ

    • When removing the ribbon cable and installing the new one take special care to not bend or fold the cable too much as this can cause damage to the cable itself.

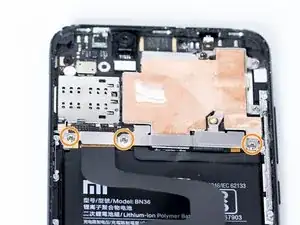

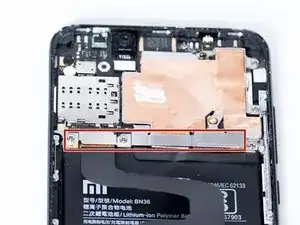

    • To access the ribbon cable connectors we must remove the metal bracket.

    • Remove the three 2.4mm Philips #0 screws that hold the panel down.

  5. oV2PdDRYeZjUsqiM
    oV2PdDRYeZjUsqiM
    ME5Lrx6cSBO1jsGl
    P3IWmrUldYuyDDdt

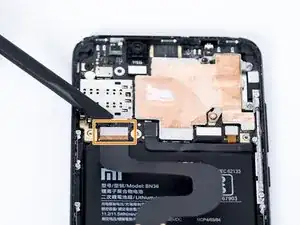

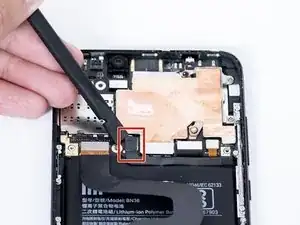

    • Using a plastic spudger remove the battery connector ribbon cable by getting underneath the connector and gently lifting it off.

    • Using a plastic sudger remove the screen connector ribbon cable by lifting from the underneath.

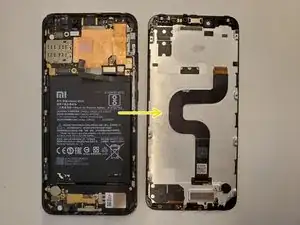

    • After you remove the ribbon cable the panel should be free to remove and replace.

  6. hGWKbLKYMjUZ2oKo
    hGWKbLKYMjUZ2oKo
    VcsxPO6jEZYvNxTt

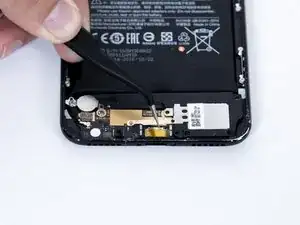

    • Remove the two 3.8mm Phillips #0 screws holding down the lower metal bracket.

  7. E5PHPWyZDHC5Qkjq
    E5PHPWyZDHC5Qkjq
    L61bHyMIpLlxUBey

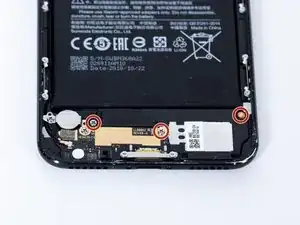

    • Remove the loud speaker. There are three 2.4mm Phillips #0 screws you need to remove, and one (upper right) is underneath the Xiaomi water sticker.

  8. RgXmcf3uByjoJgnR
    RgXmcf3uByjoJgnR
    NnAKqauqBjObtkQu

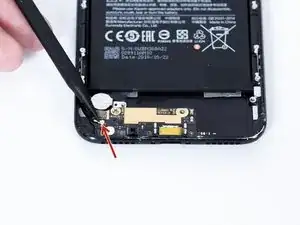

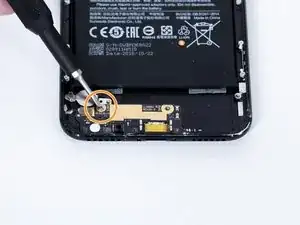

    • Unplug the antenna wire with a spudger tool.

    • Remove another 2.4mm Phillips #0 screw near vibration motor.

  9. DhdMLJFYUqEhdqHG
    DhdMLJFYUqEhdqHG
    dlCALRY1ea2jDhKK

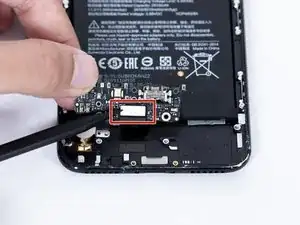

    • The ribbon cable connector is located underneath the sub-board. To access the connector flip the board over towards the battery.

    • Use a spudger tool to remove the cable from the connector.

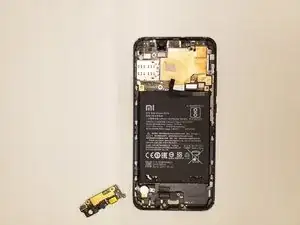

    • The USB Connector board can now be removed from the device and replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Erica Ko

Mitglied seit: 18/10/19

255 Reputation

2 Kommentare

Hey, I can only find those USB connector boards online where all the chips on it are missing. Does anyone know where I can find a proper replacement board?

Hnas Krack -

Same problem for me. I just bought a "1:1 replacement" board, which has missing chips and does not allow data transfer. Charging was possible (only very slow). However, after I changed to the old board back again to return the new faulty one, Charging was now not a problem anymore. Maybe I tightened one screw, which has been loose before?

Soeren -
