Xiaomi Mi Note Front camera Replacement

Geschrieben von: Abdulaziz Aldekheel

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 Minuten

Einleitung

Use this guide to replace your Xiaomi Mi Note's front facing camera.

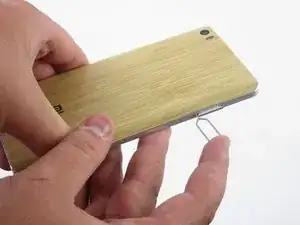

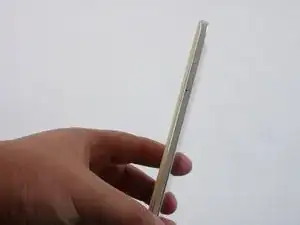

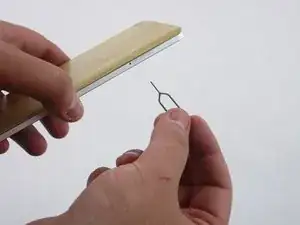

Use the Dual SIM SD card removal tool (or use a paper clip) and insert it into the slot hole until the tray pops out.

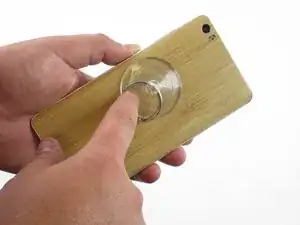

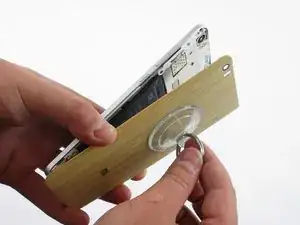

Use your suction cup to grip the back of the phone. Once the suction cup is secure, pull back with moderate force and the back plate should snap free.

There is no lock on screen side so when you force pulling with sucker you only lift the phone so?

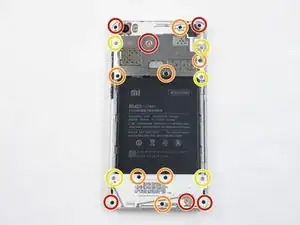

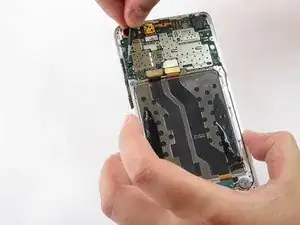

Once the back plate is off you will need to detach the frames that hold in the battery. Locate and remove the screws (Screws are marked in the image). You can then pull the frame off with ease once the screws have been removed.
Remove the six 3.5mm Phillips #000 black screws using a securing part of the back panels.
Remove the seven 2.5mm Phillips #000 black screws securing part of the back panels.
Remove the five 2mm Phillips #000 silver screws securing the remaining back panels.

No need to remove the lower part.

The position of the screw is wrong

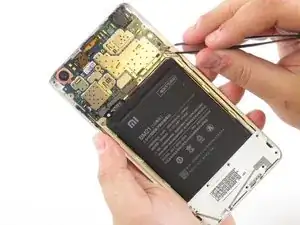

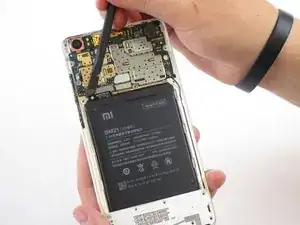

Use a nylon spudger to pry upwards to detach the ribbon that's connecting the battery to the motherboard.

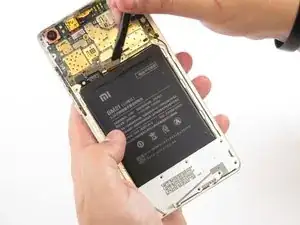

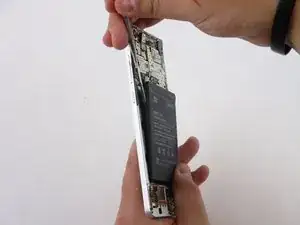

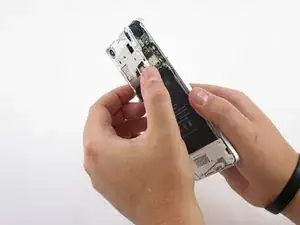

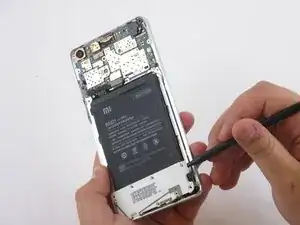

Insert a nylon or metal spudger underneath the battery at any point. Then slide the spudger around all the edges to loosen it. The battery can now be easily lifted out of the frame.
Glue will be holding down the backside of the battery.

Be careful not to turntoo much the top left screw, next to the lens. It's close to the white film of the screen , you may hurt it (i did)

Before removing the battery, it is better to hold the phone in a warm place, so that the adhesive tape is easier to remove.

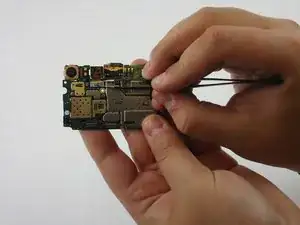

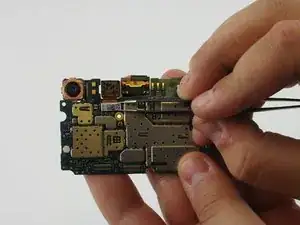

Use a spudger to pry upwards and detach the three ribbons that are connected to the motherboard.

Use tweezers to detach the small ribbon on left side located near the volume buttons using an upwards prying motion.
You will also need to detach the microphone cord located on the right side along the frame using an upwards prying motion as well.
When detaching the ribbon on the left use minimal force to prevent damage.
