Xiaomi Mi Note Micro USB/Microphone/Virtual Keys light/Vibrator Replacement

Geschrieben von: Mark Sears
  • Kommentare: 6
Xiaomi Mi Note Micro USB/Microphone/Virtual Keys light/Vibrator Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 Minuten

Einleitung

If the USB slot, Microphone, Virtual Keys lights or the phones vibrator doesn't seem to be working replace it with this guide.

  1. lPocBP22ZoJWMusu
    lPocBP22ZoJWMusu
    GVJhbNavusLcMBSY

    • Use your suction cup to grip the back of the phone. Once the suction cup is secure, pull back with moderate force and the back plate should snap free.

    There is no lock on screen side so when you force pulling with sucker you only lift the phone so?

    Eddie Ng -

  2. e4hgHCuZnrIPKRod
    e4hgHCuZnrIPKRod
    WIUgvMGRUDvBw4SN
    VBKJWYXTKuTjP3si

    • Once the back plate is off you will need to detach the frames that hold in the battery. Locate and remove the screws (Screws are marked in the image). You can then pull the frame off with ease once the screws have been removed.

    • Remove the six 3.5mm Phillips #000 black screws using a securing part of the back panels.

    • Remove the seven 2.5mm Phillips #000 black screws securing part of the back panels.

    • Remove the five 2mm Phillips #000 silver screws securing the remaining back panels.

    No need to remove the lower part.

    Cyril Maman -

    The position of the screw is wrong

    Shi Chang -

  3. NcunywSodtdpEkaG

    • Use a nylon spudger to pry upwards to detach the ribbon that's connecting the battery to the motherboard.

  4. CA3qCGTY6R33xaYF
    CA3qCGTY6R33xaYF
    skRecrty4HCAHRDA

    • Insert a nylon or metal spudger underneath the battery at any point. Then slide the spudger around all the edges to loosen it. The battery can now be easily lifted out of the frame.

    • Glue will be holding down the backside of the battery.

    Be careful not to turntoo much the top left screw, next to the lens. It's close to the white film of the screen , you may hurt it (i did)

    Cyril Maman -

    Before removing the battery, it is better to hold the phone in a warm place, so that the adhesive tape is easier to remove.

    Dmitry -

  5. 62u5rMoZQGZHRMXW
    62u5rMoZQGZHRMXW
    XhEv5DnpUZrr3MZC

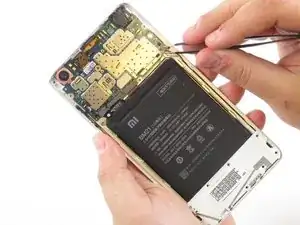

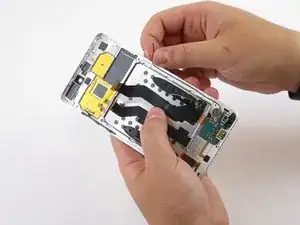

    • Use tweezers to pull upwards and detach the microphone wire that connects the motherboard to the dock connector.

  6. ZfykYEEqiBIZn2Xs

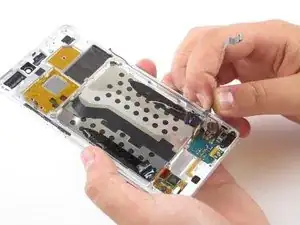

    • Peel back the ribbon that is adhered to the metal surface as shown.

  7. DUDHKelrrUUPukaN
    DUDHKelrrUUPukaN
    oqqfZRygYCOteUXf
    dBDaQo5v2piw3XDn

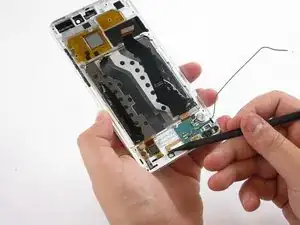

    • The dock connector is firmly adhered to the frame below it. To prevent damage to the phone use minimal force when removing.

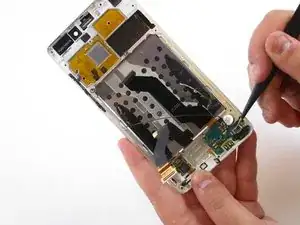

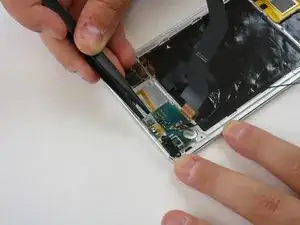

    • Using tweezers slowly start prying upwards at the locations shown in the images. After carefully prying around the edges of the dock connector, it can now lifted upwards out of the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
