Xiaomi Mi Note Screen Replacement

Geschrieben von: Mark Sears
  • Kommentare: 8
Xiaomi Mi Note Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

15

Zeitaufwand

1 Stunde

Einleitung

Use this guide to replace your Xiaomi Mi Note's screen display.

  1. nAT4OAN3KnoIXxpO

    • Locate the hole for the Dual SIM SD card on the left side of the phone.

  2. CI1jxEPxMB32BeLZ
    CI1jxEPxMB32BeLZ
    DTHZvDYlI6OSuk3c

    • Use the Dual SIM SD card removal tool (or use a paper clip) and insert it into the slot hole until the tray pops out.

  3. lPocBP22ZoJWMusu
    lPocBP22ZoJWMusu
    GVJhbNavusLcMBSY

    • Use your suction cup to grip the back of the phone. Once the suction cup is secure, pull back with moderate force and the back plate should snap free.

    There is no lock on screen side so when you force pulling with sucker you only lift the phone so?

    Eddie Ng -

  4. e4hgHCuZnrIPKRod
    e4hgHCuZnrIPKRod
    WIUgvMGRUDvBw4SN
    VBKJWYXTKuTjP3si

    • Once the back plate is off you will need to detach the frames that hold in the battery. Locate and remove the screws (Screws are marked in the image). You can then pull the frame off with ease once the screws have been removed.

    • Remove the six 3.5mm Phillips #000 black screws using a securing part of the back panels.

    • Remove the seven 2.5mm Phillips #000 black screws securing part of the back panels.

    • Remove the five 2mm Phillips #000 silver screws securing the remaining back panels.

    No need to remove the lower part.

    Cyril Maman -

    The position of the screw is wrong

    Shi Chang -

  5. NcunywSodtdpEkaG

    • Use a nylon spudger to pry upwards to detach the ribbon that's connecting the battery to the motherboard.

  6. CA3qCGTY6R33xaYF
    CA3qCGTY6R33xaYF
    skRecrty4HCAHRDA

    • Insert a nylon or metal spudger underneath the battery at any point. Then slide the spudger around all the edges to loosen it. The battery can now be easily lifted out of the frame.

    • Glue will be holding down the backside of the battery.

    Be careful not to turntoo much the top left screw, next to the lens. It's close to the white film of the screen , you may hurt it (i did)

    Cyril Maman -

    Before removing the battery, it is better to hold the phone in a warm place, so that the adhesive tape is easier to remove.

    Dmitry -

  7. 4TxXsvKO4Ypvj4aD
    4TxXsvKO4Ypvj4aD
    G2QtOxqmTHbCVJH1
    dV5bHqdAGQAAWZS6

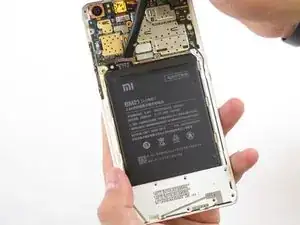

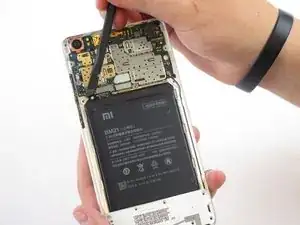

    • Use a spudger to detach the ribbons connected to the motherboard using an upward prying motion.

  8. gPRlcVDxuclKmgat
    gPRlcVDxuclKmgat
    IWGPvxKOvaYNycAS
    LUODZKOUAdnljutx

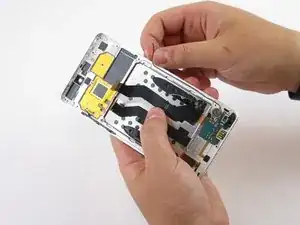

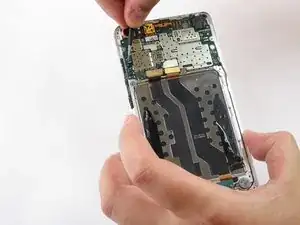

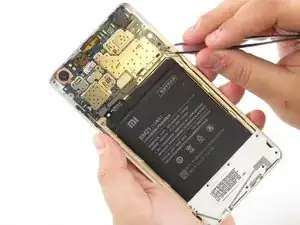

    • Use tweezers to detach the small ribbon on left side located near the volume buttons using an upwards prying motion.

    • You will also need to detach the microphone cord located on the right side along the frame using an upwards prying motion as well.

    • When detaching the ribbon on the left use minimal force to prevent damage.

  9. nevlEWmE5pqeTaua
    nevlEWmE5pqeTaua
    xLfsUHMSQvdlXNwi

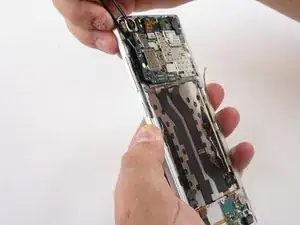

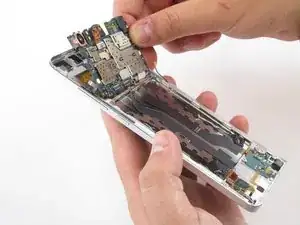

    • Use a tweezer to lift and remove the motherboard from the frame.

    • Be sure that the Dual SIM card and tray has been removed.

  10. eUZTYMLZKceEGdsX

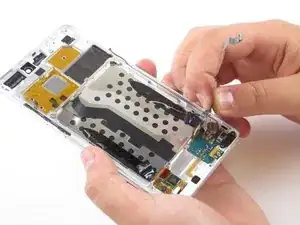

    • Peel back the ribbon that is adhered to the metal surface as shown.

  11. 61YcYfo6sHaukX3y
    61YcYfo6sHaukX3y
    gZxtPe42UpgKvFYY
    AupvhxA5uxA22MVA

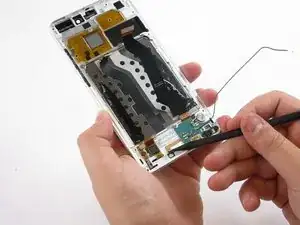

    • The dock connector is firmly adhered to the frame below it. To prevent damage to the phone use minimal force when removing.

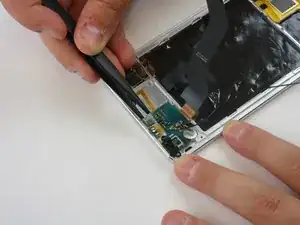

    • Using tweezers slowly start prying upwards at the locations shown in the images. After carefully prying around the edges of the dock connector, it can now lifted upwards out of the frame.

  12. l4B4OtMYtksBMmkc
    l4B4OtMYtksBMmkc
    I1OGCaBUJsY5eJkd

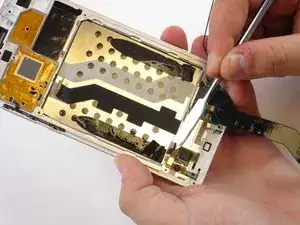

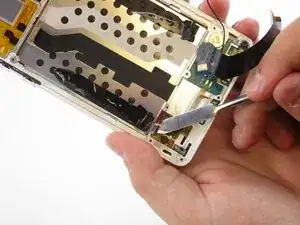

    • Using a spudger detach the top two ribbons that connect the screen to the touch sensor and motherboard using an upwards prying motion.

  13. cIJXMGVUY2bQmOnj
    cIJXMGVUY2bQmOnj
    u3wiHIaDciXcVE34

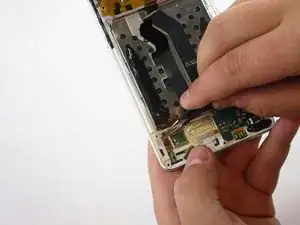

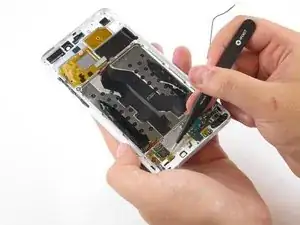

    • Using tweezers lift the two remaining ribbons from the bottom frame by grasping the ribbons at any point and lifting towards the bottom of the frame.

    • The ribbons should now be able to freely slide through the respective slits once the screen is lose enough to pull away from the frame for later.

  14. 21juGGyCu6JkiMnJ
    21juGGyCu6JkiMnJ
    4KmEWSeO1jtyiNAl

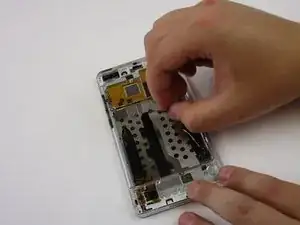

    • Peel back the ribbon attached to the back metal frame.

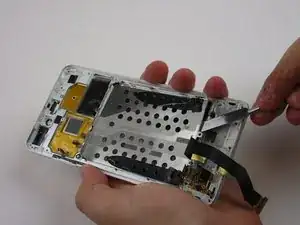

    • Use your spudger at any point to get underneath the metal frame. Slide the spudger around the sides of the metal to free it from the frame.

    • Small amounts of adhesive are holding the metal frame in place.

  15. QQcldIQFQmHyfhCs
    QQcldIQFQmHyfhCs
    RMJDSEKEMPG3pGto
    SLVEwt2EjfMSHlCG

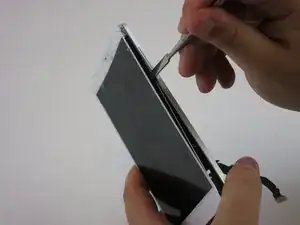

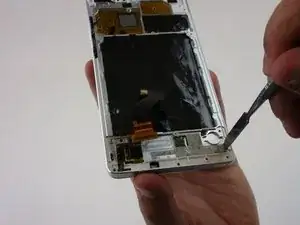

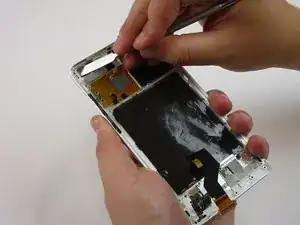

    • Apply considerable force to the back corners using your spudger to help relieve it of the adhesive as shown.

    • Once you have freed the screen from a portion of the adhesive, wedge your spudger around the front edge to work around the edges of the screen and frame in order to fully remove it from the frame.

    • Be aware that the glass screen will break during this process. Be careful not to cut yourself while preforming this step.

Abschluss

To reassemble your device, follow these instructions in reverse order.
