Xiaomi Mi Pad Battery Replacement

Geschrieben von: Jessica
  • Kommentare: 12
Xiaomi Mi Pad Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

Use this guide to remove the battery from your Xiaomi Mi Pad.

  1. fcTG44DFS45YYli6

    • Remove the micro SD card slot from the left side of the device using either the metal pin included with the device or a SIM card eject tool.

  2. W4FvDyr2E1FPLdUT
    W4FvDyr2E1FPLdUT
    N2HmxwcC1OXRuvxJ

    • Use a plastic opening tool and/or opening pick to gently pry the back panel away from the device. Work your way around the device, slowly increasing the gap.

    • The back panel has small clips and light adhesive that easily releases from the device.

  3. Qu5BjQT1TBblbPsl
    Qu5BjQT1TBblbPsl
    ao12gO1llrF3RUar

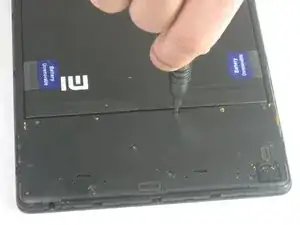

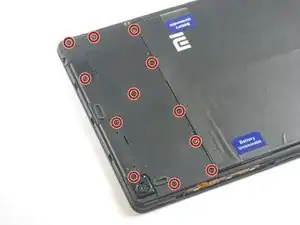

    • Remove the twelve 3.0 mm Phillips #000 screws on the upper cover of the device.

  4. MBg1daPpvTyA6fdc

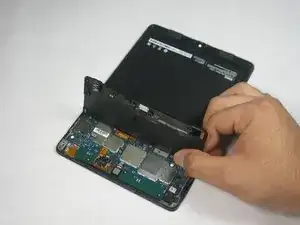

    • Remove the upper cover from the device.

  5. GMPrp64RxRvFkYk3
    GMPrp64RxRvFkYk3
    d5Tw2xY2YDoVf2mS

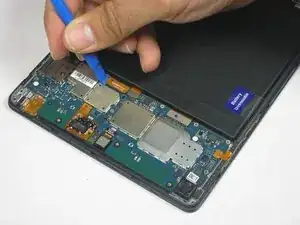

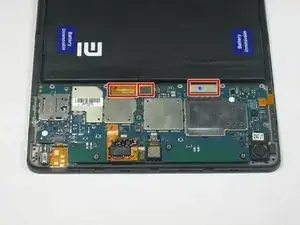

    • Use a plastic opening tool to disconnect the three ribbon cable connectors.

    • If you're only going to replace the battery, you should only need to disconnect the smallest ribbon cable that connects the battery to the motherboard.

  6. YgpjU4hrODUoOTXF

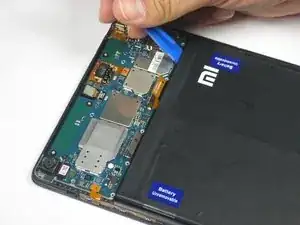

    • Carefully pry around the perimeter of the battery with a plastic opening tool to loosen the adhesive securing the battery to the device.

    • Be gentle when removing the battery, as lithium-ion batteries should not be bent or punctured.

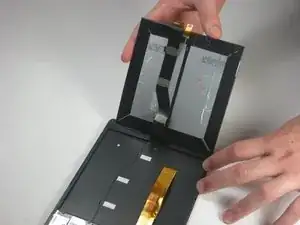

  7. tFSqi3t4qouvYptu
    tFSqi3t4qouvYptu
    I55uERcBTQahJBFU
    F12hHLByXJmxrUkQ

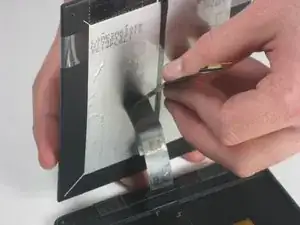

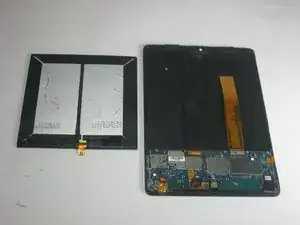

    • If you disconnected all three connectors, the charging port ribbon cable may have a small amount of adhesive securing it to the battery. Gently pry the cable free of the battery and lift the battery up and out of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jessica

Mitglied seit: 03/09/15

698 Reputation

12 Kommentare

Hi

Great Tutorial, but where can i buy a replacement Battery?

THANKS

Marcel -

Go to Leamington road and you will get it

affan -

Go to Leamington road mumbai

affan -

Where to purchase the Mi Paf battery?

Dino Bay -

Please please make a video for it. I need it desperately.

Man Mohan Shukla -

It is not so easy when u have a deal with factory battery. I think guide tell us about replace battery not first time ;)

tsyba1980 -

Can somebody tell about replacement charge jack on this device?

tsyba1980 -

Where can I get brand new mi tablet battery in india?

Saurabh saindane -

Step 3: got 2 screws cover with orange Mi sticker. Don’t forget to unscrew them.

Step 6: got tape stick behind the battery, very sticky. Need remove gently and slowly.

Other work very well, thanks for the tutorial. Successfully replace my Mi Pad battery.

Andy Teoh -

What sort is brand for light adhesive (glue)?

Vitaly Titov -

Need the female connector for battery. This soldered to board.

By accident was destroyed and want to change it…

How know the part number ? and can help.

Dino

Dino Solomon -

My mipad not starting after battery replacement. Red light blinks 2 times and shows MI logo then turn off… but boots perfect with old battery. How do i resolve this issue?

brahmasoor anirudhan -
