Xiaomi Mi Pad Front Camera Replacement

Geschrieben von: Rene Mendoza
  • Kommentare: 0
Xiaomi Mi Pad Front Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

Use this guide to remove the front-facing camera from your Xiaomi Mi Pad.

  1. fcTG44DFS45YYli6

    • Remove the micro SD card slot from the left side of the device using either the metal pin included with the device or a SIM card eject tool.

  2. W4FvDyr2E1FPLdUT
    W4FvDyr2E1FPLdUT
    N2HmxwcC1OXRuvxJ

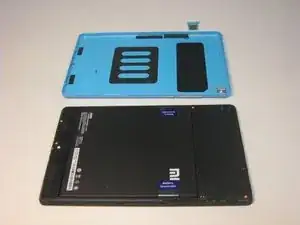

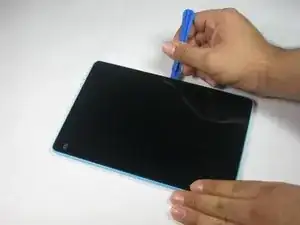

    • Use a plastic opening tool and/or opening pick to gently pry the back panel away from the device. Work your way around the device, slowly increasing the gap.

    • The back panel has small clips and light adhesive that easily releases from the device.

  3. OGZt6ZOUTsWuDKAb
    OGZt6ZOUTsWuDKAb
    qOpVr4e1VaGYwFMw

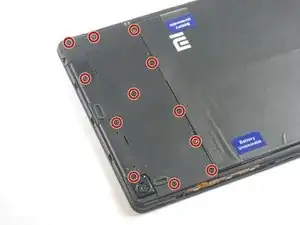

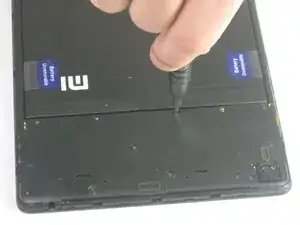

    • Remove the twelve 3.0 mm Phillips #000 screws on the upper cover of the device.

  4. KBTyjQdVKAkbCOrk

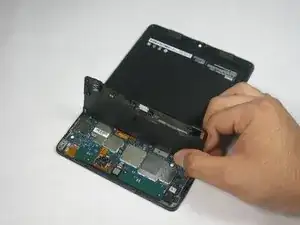

    • Remove the upper cover from the device.

  5. OFMQmjTR53bgQVRB

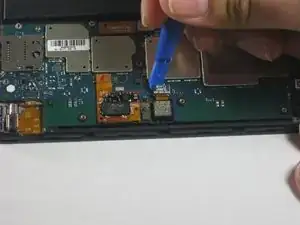

    • Use a plastic opening tool to gently disconnect the front-facing camera from the motherboard.

  6. AYuDsvGs63Fqo6tm

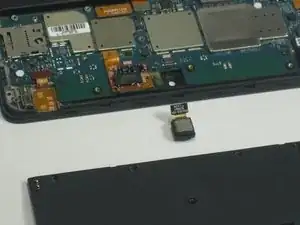

    • Carefully remove the front camera from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
