Xiaomi Mi Pad Headphone Jack Replacement

Geschrieben von: Rene Mendoza
  • Kommentare: 1
Xiaomi Mi Pad Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 8 Minuten

Einleitung

Use this guide to remove the headphone jack from your Xiaomi Mi Pad.

  1. fcTG44DFS45YYli6

    • Remove the micro SD card slot from the left side of the device using either the metal pin included with the device or a SIM card eject tool.

  2. W4FvDyr2E1FPLdUT
    W4FvDyr2E1FPLdUT
    N2HmxwcC1OXRuvxJ

    • Use a plastic opening tool and/or opening pick to gently pry the back panel away from the device. Work your way around the device, slowly increasing the gap.

    • The back panel has small clips and light adhesive that easily releases from the device.

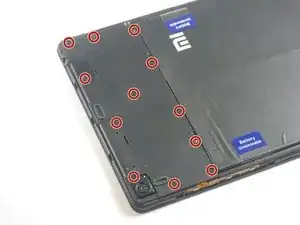

  3. VhajmOm1uXG3SGZj
    VhajmOm1uXG3SGZj

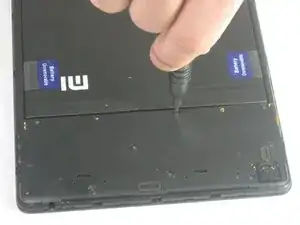

    OBO15S1SlD2lCWoU

    • Remove the twelve 3.0 mm Phillips #000 screws on the upper cover of the device.

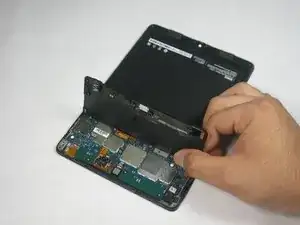

  4. 5tZTSInpn2endHDp

    • Remove the upper cover from the device.

  5. vBdtCGGPSvBlWtOL

    • Use a plastic opening tool to pull up and remove the headphone jack from the upper cover.

    • Insert the corner of a plastic opening tool into the port of the headphone jack for easier removal.

Abschluss

To reassemble your device, follow these instructions in reverse order.
