Xiaomi Mi Pad Motherboard Replacement

Geschrieben von: Kiefer Sivitz
  • Kommentare: 7
Xiaomi Mi Pad Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

Use this guide to remove the motherboard from your Xiaomi Mi Pad.

  1. fcTG44DFS45YYli6

    • Remove the micro SD card slot from the left side of the device using either the metal pin included with the device or a SIM card eject tool.

  2. W4FvDyr2E1FPLdUT
    W4FvDyr2E1FPLdUT
    N2HmxwcC1OXRuvxJ

    • Use a plastic opening tool and/or opening pick to gently pry the back panel away from the device. Work your way around the device, slowly increasing the gap.

    • The back panel has small clips and light adhesive that easily releases from the device.

  3. v2SBqDgjOxF1f5hZ
    v2SBqDgjOxF1f5hZ
    AlEP3twgvtvKpCvq

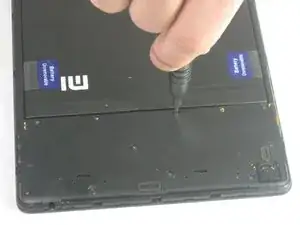

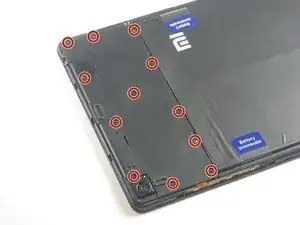

    • Remove the twelve 3 mm Phillips #00 screws on the upper cover of the device.

  4. UD6DV4GUvlZHFyJU

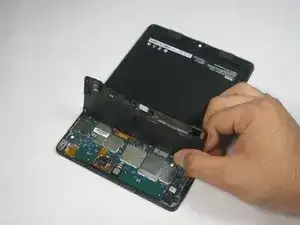

    • Remove the upper cover from the device.

  5. 5wyK2o4EdTr5VLOS

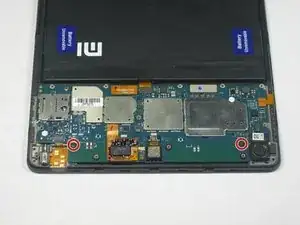

    • Remove the two 3.0 mm Phillips #00 screws securing the motherboard to the device.

  6. 5B41sMdCLuPtNdLq
    5B41sMdCLuPtNdLq
    jDcUIIZUADdCEnEY

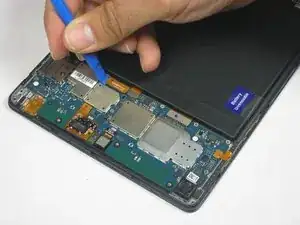

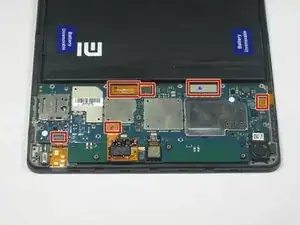

    • Disconnect the six ribbon cables attached to the motherboard using a plastic opening tool.

  7. VCOMGgDXQ3IyIFD5

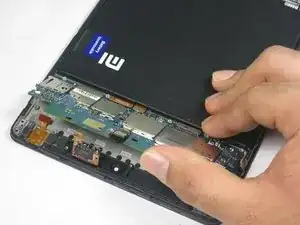

    • Carefully remove the motherboard from the device.

    How to get new one mother board

    MSK DIGITAL MEDIA -

    Pls help me service company saying to me it's motherboard crashed

    I wants new on on low price

    MSK DIGITAL MEDIA -

    How to get new one of this mi pad mother board

    This is my email sunilhpt90@gmail. com

    Sunil -

Abschluss

To reassemble your device, follow these instructions in reverse order.
