Einleitung

Use this guide to replace the fingerprint sensor on your Xiaomi Poco M3.

  1. YrCGXr3iBiPPgLHL
    YrCGXr3iBiPPgLHL
    tVpmAX1yQNDnPbFh
    xKMCAJWhXAl5VNmE
    • Insert a SIM card eject tool or a paperclip into the small hole in the SIM card tray, located near the top left corner of the Poco M3.

    • Press firmly to eject the SIM card tray.

    • Remove the SIM card tray from the phone by pulling it out of the phone assembly.

    • If the tray holds a SIM card it will fall out easily.

    • When reinserting the SIM card, make sure it's in the correct orientation inside the SIM card tray.

    • A thin rubber gasket around the SIM card tray provides water and dust protection. If this gasket is damaged or missing, replace the gasket or the entire SIM card tray to protect your Poco M3's internal components.

  2. hWaKFvFLH1LrsOK4
    hWaKFvFLH1LrsOK4
    kPQNbbHDZiX2YSpY
    f2du2BdSVRQQweXX
    • Insert a spudger into the charging port at a steep angle.

    • Do not insert the spudger in a flat angle like you would do with a charging cable to avoid damaging the charging port.

    • Use the spudger to create a gap between the phone assembly and the back cover by prying the back cover away from the bottom edge of the screen.

  3. UsjdMTpHClpvPo5N
    UsjdMTpHClpvPo5N
    tMpVKei3SBervEem
    EX5DDsKVgJYcmmiB
    • Insert an opening pick into the gap between the phone assembly and the back cover.

    • Remove the spudger.

  4. D2TaUqBGIgiAYBFN
    D2TaUqBGIgiAYBFN
    3MIdNAIPKgAvW6lB
    pIhT5hYHROGvelqG
    • Slide the opening pick to the bottom left corner of the phone to release the plastic clips holding the back cover in place.

    • Slide the opening pick around the bottom left corner.

  5. fUK6V1pReXZRuV5S
    fUK6V1pReXZRuV5S
    e36ATMB5lEHeJjVO
    qxeC3GnZxWDOSQ5M
    • Slide the opening pick along the left edge of the Poco M3 to release the plastic clips.

  6. FwVfAS6ILiCBL2gg
    FwVfAS6ILiCBL2gg
    cMEsqrixQxxjLMN4
    OvL2fZocpcHoPBbf
    • Slide the opening pick around the top left corner to release the plastic clips.

    • Slide the opening pick along the top edge of the phone to release the plastic clips holding the back cover in place.

  7. HdiojRrW4cH2MeGi
    HdiojRrW4cH2MeGi
    bIcx4jAiIEN1atDX
    • Slide the opening pick around the top right corner to release the plastic clips.

    • Leave the opening pick inserted above the volume buttons.

    • Avoid using your opening pick in the area where the physical buttons are located. There's a flex cable running to the motherboard which can be easily torn.

  8. 3Vu2URp2wX1T4OTB
    3Vu2URp2wX1T4OTB
    GNNML5wiQW6VLe34
    HFXRIAHtAG6Q4GMC
    • Insert another opening pick into the gap at the bottom edge of your phone.

    • Slide the opening pick around the bottom right corner to release the plastic clips securing the back cover.

    • Slide the opening pick along the right edge of the phone to release the remaining plastic clips. Stop just below the fingerprint reader.

  9. AqqP4ghXOESWmBGY
    AqqP4ghXOESWmBGY
    QhFLVO3tUVcB5KXY
    • Remove the opening picks and flip the phone over.

    • Open up the phone by swinging the back cover up from the right side, like the front cover of a book.

    • Avoid tensioning the fingerprint flex cable during this procedure.

  10. sV3dsNPSCkoMdVvP
    • Use a Phillips #00 screwdriver to remove the ten 3.9 mm-long screws.

  11. YMdjCBPy2yDHMEgX
    YMdjCBPy2yDHMEgX
    lZSGmNAglXmVLbN2
    qsKQFbrbsBSJtLyA
    • Slide an opening pick under the bottom right corner of the motherboard cover.

    • Slide the opening pick along the right edge of the motherboard cover to release the plastic clips holding it in place.

    • At the top right corner, twist the opening pick countercockwise to pry up the motherboard cover.

  12. A1J1J6y1HHN1iAeS
    A1J1J6y1HHN1iAeS
    LE1rVewPFlUu2xdo
    • Remove the motherboard cover.

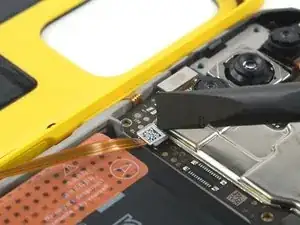

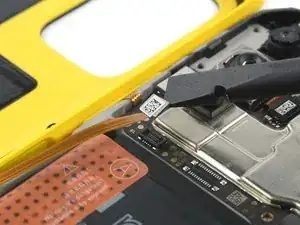

  13. RCAroZALFy4ILVLR
    RCAroZALFy4ILVLR
    cDFU6XKrpCgSdVaT
    • Use the flat end of a spudger to disconnect the fingerprint sensor cable at the bottom left corner of the motherboard.

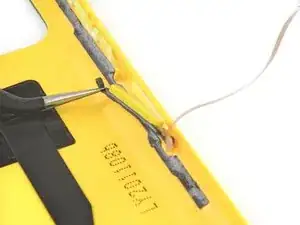

  14. 3JNvhsoQVIkvTHVA
    3JNvhsoQVIkvTHVA
    FpptolD3MaG2fU6r
    • Use tweezers to lift the fingerprint sensor rubber gasket off of the top plastic pin.

    • Take care to not scratch or yank the fingerprint sensor ribbon cable or pierce the fingerprint senor rubber gasket while removing it.

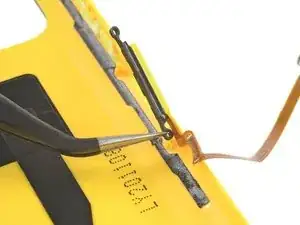

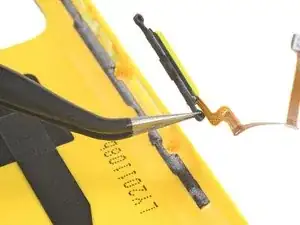

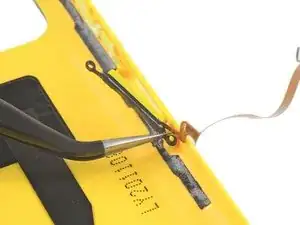

  15. KsDj1ti31XNlFRCI
    KsDj1ti31XNlFRCI
    roGhvGDmSCHhfiE5
    5EHIMJf4eQ2TEOEY
    • Use tweezers to lift the fingerprint sensor rubber gasket off of the bottom plastic pin.

    • Remove the fingerprint sensor.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
