Einleitung

Use this guide to replace a cracked or broken screen on your Xiaomi Poco M3.

If the frame is deformed, it's important to replace it to make sure the new screen will mount correctly and won’t suffer damage from uneven pressure.

Due to the phone’s design, you must remove the lithium-ion battery to access the display cables. If the battery was deformed during removal replace it with a new one—reusing a deformed battery is a potential safety hazard.

Before disassembling your phone, discharge the battery below 25%. The battery can catch fire and/or explode if accidentally punctured, but the chances of that happening are much lower if discharged.

Note: This guide instructs you to replace only the screen while leaving the original frame and motherboard in place. However, some replacement screens for this phone come pre-installed in a new frame (a.k.a. chassis), which requires a very different procedure. Make sure you have the correct part before starting this guide.

You’ll need replacement adhesive to reattach components when reassembling the device.

  1. YrCGXr3iBiPPgLHL
    YrCGXr3iBiPPgLHL
    tVpmAX1yQNDnPbFh
    xKMCAJWhXAl5VNmE

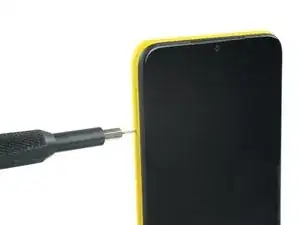

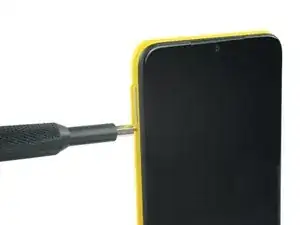

    • Insert a SIM card eject tool or a paperclip into the small hole in the SIM card tray, located near the top left corner of the Poco M3.

    • Press firmly to eject the SIM card tray.

    • Remove the SIM card tray from the phone by pulling it out of the phone assembly.

    • If the tray holds a SIM card it will fall out easily.

    • When reinserting the SIM card, make sure it's in the correct orientation inside the SIM card tray.

    • A thin rubber gasket around the SIM card tray provides water and dust protection. If this gasket is damaged or missing, replace the gasket or the entire SIM card tray to protect your Poco M3's internal components.

  2. hWaKFvFLH1LrsOK4
    hWaKFvFLH1LrsOK4
    kPQNbbHDZiX2YSpY
    f2du2BdSVRQQweXX

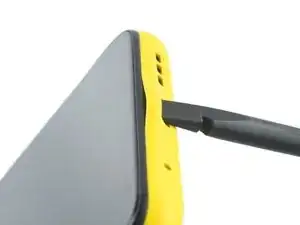

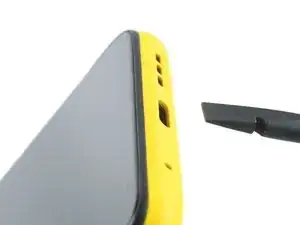

    • Insert a spudger into the charging port at a steep angle.

    • Do not insert the spudger in a flat angle like you would do with a charging cable to avoid damaging the charging port.

    • Use the spudger to create a gap between the phone assembly and the back cover by prying the back cover away from the bottom edge of the screen.

  3. UsjdMTpHClpvPo5N
    UsjdMTpHClpvPo5N
    tMpVKei3SBervEem
    EX5DDsKVgJYcmmiB

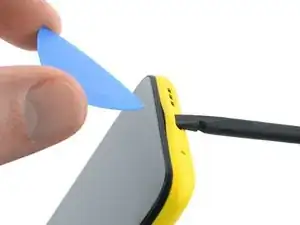

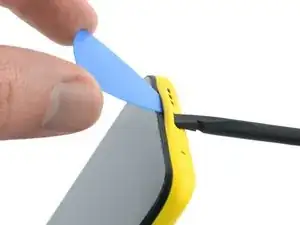

    • Insert an opening pick into the gap between the phone assembly and the back cover.

    • Remove the spudger.

  4. D2TaUqBGIgiAYBFN
    D2TaUqBGIgiAYBFN
    3MIdNAIPKgAvW6lB
    pIhT5hYHROGvelqG

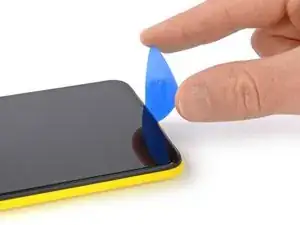

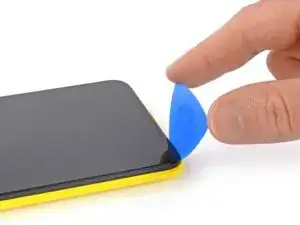

    • Slide the opening pick to the bottom left corner of the phone to release the plastic clips holding the back cover in place.

    • Slide the opening pick around the bottom left corner.

  5. fUK6V1pReXZRuV5S
    fUK6V1pReXZRuV5S
    e36ATMB5lEHeJjVO
    qxeC3GnZxWDOSQ5M

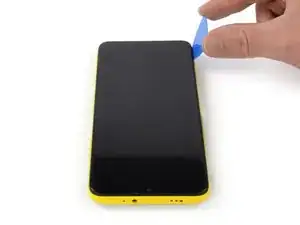

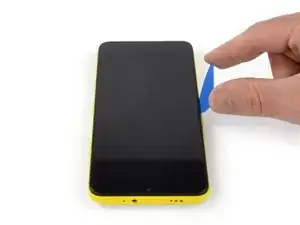

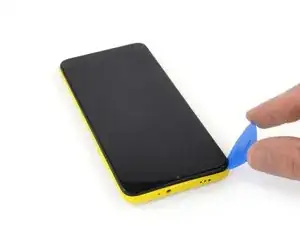

    • Slide the opening pick along the left edge of the Poco M3 to release the plastic clips.

  6. FwVfAS6ILiCBL2gg
    FwVfAS6ILiCBL2gg
    cMEsqrixQxxjLMN4
    OvL2fZocpcHoPBbf

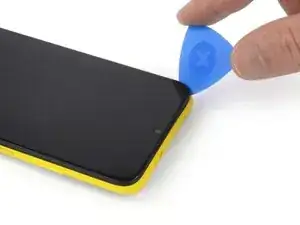

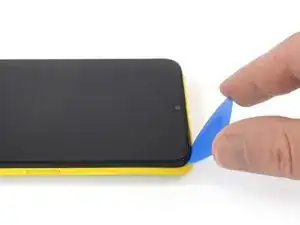

    • Slide the opening pick around the top left corner to release the plastic clips.

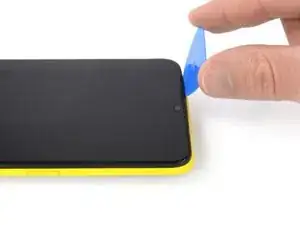

    • Slide the opening pick along the top edge of the phone to release the plastic clips holding the back cover in place.

  7. HdiojRrW4cH2MeGi
    HdiojRrW4cH2MeGi
    bIcx4jAiIEN1atDX

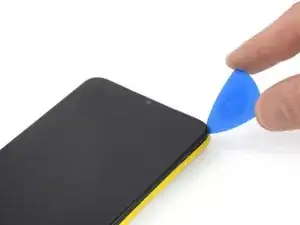

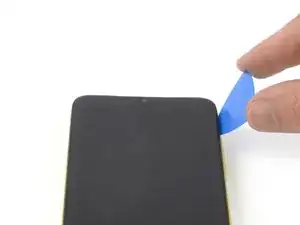

    • Slide the opening pick around the top right corner to release the plastic clips.

    • Leave the opening pick inserted above the volume buttons.

    • Avoid using your opening pick in the area where the physical buttons are located. There's a flex cable running to the motherboard which can be easily torn.

  8. 3Vu2URp2wX1T4OTB
    3Vu2URp2wX1T4OTB
    GNNML5wiQW6VLe34
    HFXRIAHtAG6Q4GMC

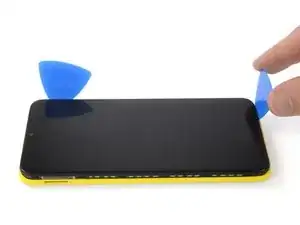

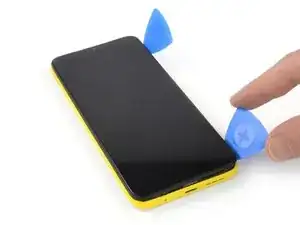

    • Insert another opening pick into the gap at the bottom edge of your phone.

    • Slide the opening pick around the bottom right corner to release the plastic clips securing the back cover.

    • Slide the opening pick along the right edge of the phone to release the remaining plastic clips. Stop just below the fingerprint reader.

  9. AqqP4ghXOESWmBGY
    AqqP4ghXOESWmBGY
    QhFLVO3tUVcB5KXY
    • Remove the opening picks and flip the phone over.

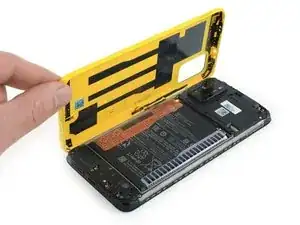

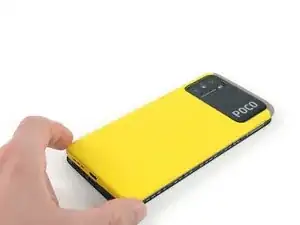

    • Open up the phone by swinging the back cover up from the right side, like the front cover of a book.

    • Avoid tensioning the fingerprint flex cable during this procedure.

  10. sV3dsNPSCkoMdVvP

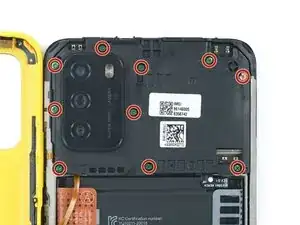

    • Use a Phillips #00 screwdriver to remove the ten 3.9 mm-long screws.

  11. YMdjCBPy2yDHMEgX
    YMdjCBPy2yDHMEgX
    lZSGmNAglXmVLbN2
    qsKQFbrbsBSJtLyA

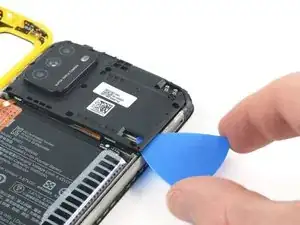

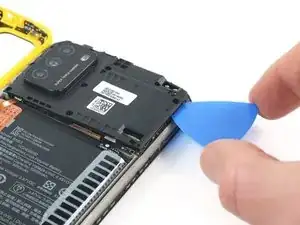

    • Slide an opening pick under the bottom right corner of the motherboard cover.

    • Slide the opening pick along the right edge of the motherboard cover to release the plastic clips holding it in place.

    • At the top right corner, twist the opening pick countercockwise to pry up the motherboard cover.

  12. A1J1J6y1HHN1iAeS
    A1J1J6y1HHN1iAeS
    LE1rVewPFlUu2xdo

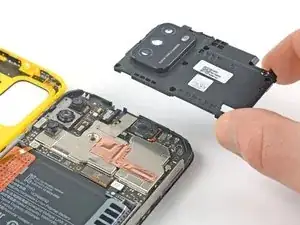

    • Remove the motherboard cover.

  13. 55PeZY52Ny1boNnA
    55PeZY52Ny1boNnA
    mEy3YSoJRJe1eMhi

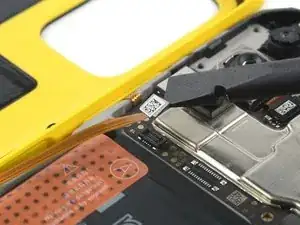

    • Use the flat end of a spudger to pry up and disconnect the fingerprint sensor cable at the bottom left corner of the motherboard.

    • Remove the back cover assembly.

  14. 22DuOyWXOsKgMntc
    22DuOyWXOsKgMntc
    rydIlNAx4JS1QcFB

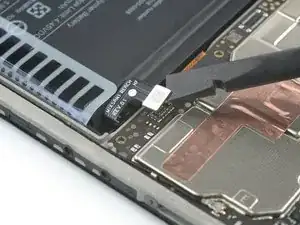

    • Use the flat end of a spudger to pry up and disconnect the battery cable at the bottom right corner of the motherboard.

  15. VWP3S3YA5GBguZtt
    VWP3S3YA5GBguZtt
    4TQpLrlguQwTQ2sP
    GjMVNRcECRVdSxjs
    • Take care not to puncture or bend the battery with your tool—a punctured or bent battery may leak dangerous chemicals or cause a thermal event.

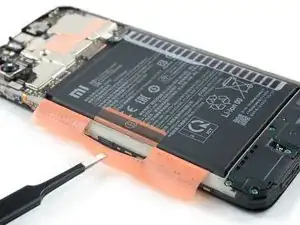

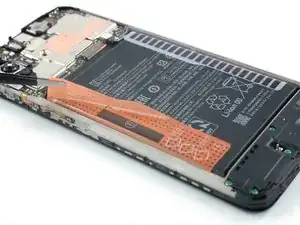

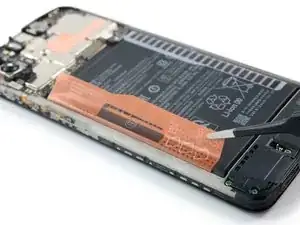

    • Use a pair of blunt nose tweezers or a clean fingernail to peel the top edge of the orange adhesive strip labeled with an A off the battery.

    • Use a pair of blunt nose tweezers or a clean fingernail to peel the bottom edge of the orange adhesive strip labeled with an A off the battery.

    • Fold down the adhesive strip labeled with an A.

  16. meUDuGataHsyMKaA
    meUDuGataHsyMKaA
    UQWgNEYQEPF4HysH

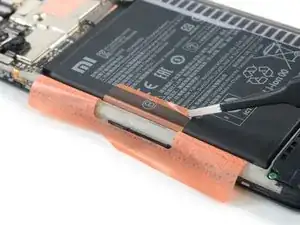

    • Use a pair of blunt nose tweezers or a clean fingernail the orange adhesive strip labeled with a B off the battery.

  17. bLPXaZCQIUDRE6Yd
    bLPXaZCQIUDRE6Yd
    rkILf6udJDDLHUbF

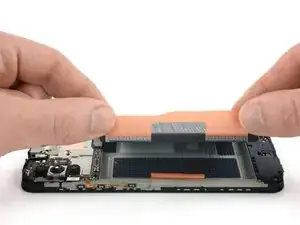

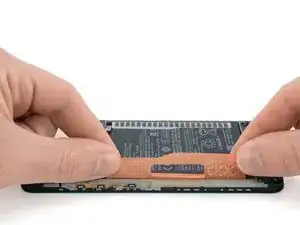

    • Grab both corners of the orange adhesive strip labeled with an A.

    • Pull upwards to lift the battery out of its recess and swing it to an upright position.

    • Although these adhesive tabs are supposed to make the battery removal easier, they may require some force. If you're having trouble removing the battery, you can apply a heated iOpener to the center of the display to loosen the adhesive underneath.

  18. b2EGpTcXJrUbx1dp
    b2EGpTcXJrUbx1dp
    5HWpQAvaHfPOvSq4
    XddeZMNLySfDHnUa

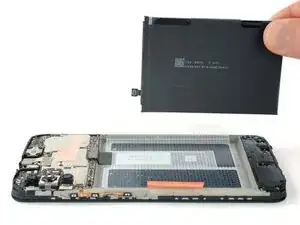

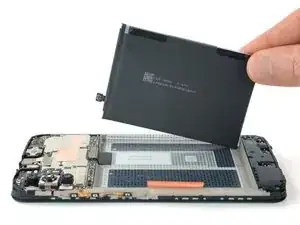

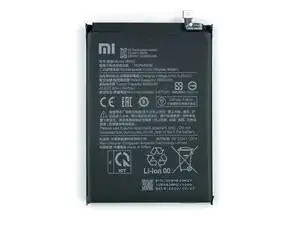

    • Peel the battery off the remaining adhesive.

    • Remove the battery.

    • During reassembly, temporarily reconnect the battery to the motherboard to help align it correctly. Disconnect the battery after it is seated.

  19. YYs6puwXiH5WXLIj
    YYs6puwXiH5WXLIj
    jbDE244FtIpEw4Tc

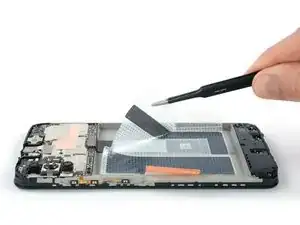

    • Peel the battery's adhesive sticker off the midframe.

    • This step is mandatory if you are replacing the display. It is highly recommended to use a fresh adhesive sticker when installing a new battery.

  20. gJ3PdbaOqGtXYNOP
    gJ3PdbaOqGtXYNOP
    KZFOaUJNrLXJihJF

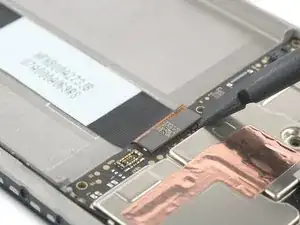

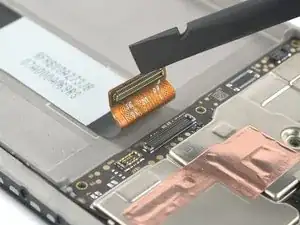

    • Use the flat end of a spudger to disconnect the main display flex cable.

  21. RLjFrYTnCLHBIUDy
    RLjFrYTnCLHBIUDy
    Nieg6BVVSxY1AU5y

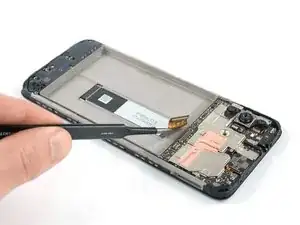

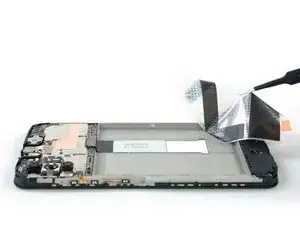

    • Use a pair of blunt nose tweezers to peel the main display flex cable off the midframe.

  22. L3wL1NAEWtfST1QF

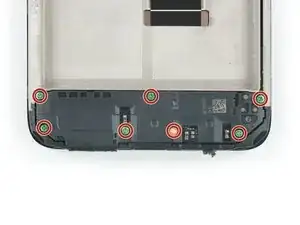

    • Use a Phillips #00 screwdriver to remove the seven 3.9 mm-long screws.

  23. ljZv6Qww135UYoC5
    ljZv6Qww135UYoC5
    EwdoOXNONrpLdTRt
    SsogJSmaXtZB31Xy

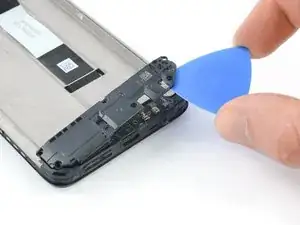

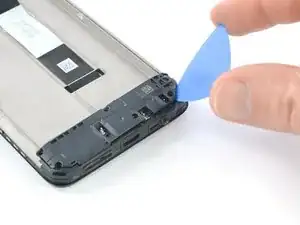

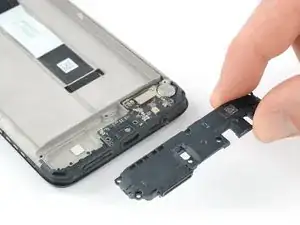

    • Insert an opening pick underneath the bottom right corner of the loudspeaker assembly.

    • Use the opening to pry the loudspeaker assembly out of its recess.

    • Remove the loudspeaker assembly.

  24. DkLLPuHAdciLkqpt
    DkLLPuHAdciLkqpt
    yicZupVDLva3OoU6

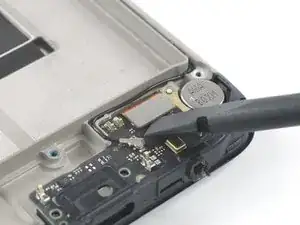

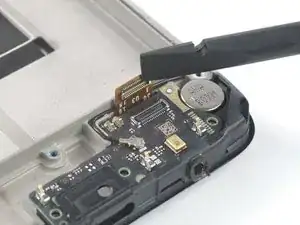

    • Use the flat end of a spudger to disconnect the digitizer flex cable.

  25. GBq15VAvd5NMpXTQ

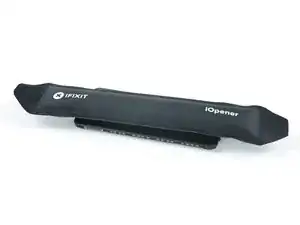

    • Apply a heated iOpener to the screen to loosen the adhesive underneath. Apply the iOpener for at least two minutes.

  26. 1rVm3ABMDn35tZYc
    1rVm3ABMDn35tZYc
    HSFlSiYotUIpAdsI
    4BrmDkZZFKxyAobK

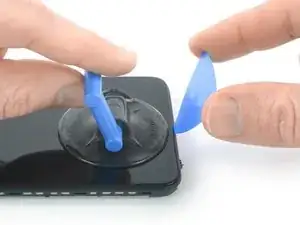

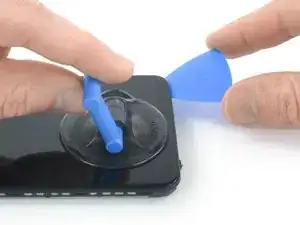

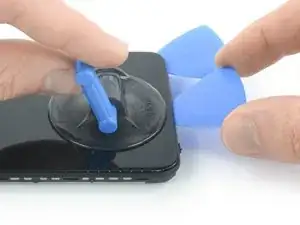

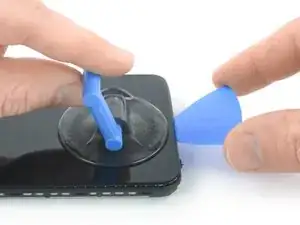

    • Once the screen is warm to touch, apply a suction cup to the bottom edge of the phone.

    • If the phone's screen is cracked, the suction handle may not stick. Try lifting it with strong tape, or superglue the suction handle in place and allow it to cure so you can proceed.

    • Lift the screen with the suction handle to create a small gap between the screen and the frame.

    • Insert the tip of an opening pick in the gap between the midframe and the screen.

    • Slide the opening pick to the bottom right corner to cut the adhesive. Leave it in its place to prevent the adhesive from resealing.

  27. PuPHjhkWNYKq2U2j
    PuPHjhkWNYKq2U2j
    Mdll3fa6uSIlbTEC

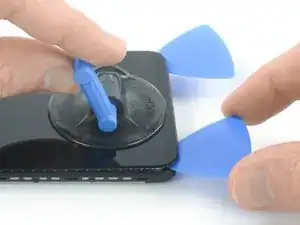

    • Insert a second opening pick and slide it to the bottom left corner of the screen to cut the adhesive.

    • Leave the opening picks in to prevent the adhesive from resealing.

  28. HtBneCpD3nhtlMrC
    HtBneCpD3nhtlMrC
    2VmIXtbECJ1f45xO
    rrCNNw5imfpF4Rdf
    • If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener to reheat it.

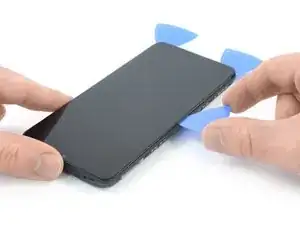

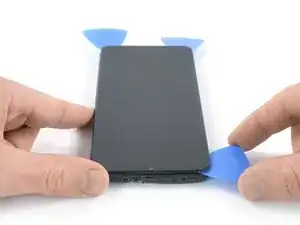

    • Insert a third opening pick under the bottom left corner of the phone.

    • Slide the opening pick up to the top left corner to cut the adhesive. Leave it in to prevent the adhesive from resealing.

  29. L2SdCXpv43trn4FQ
    L2SdCXpv43trn4FQ
    6QSGLWLNRswtPJVy

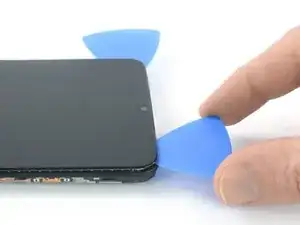

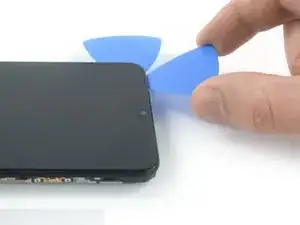

    • Insert a fourth opening pick at the top left corner.

    • Slide the opening pick along the top edge of the phone to cut the adhesive. Leave the opening pick in the top right corner of the screen to prevent the adhesive from resealing.

    • When you slice near the front facing camera, insert only the tip of the opening pick to avoid damaging or smearing the camera.

  30. 4aAvwnKMVQTQXRdi
    4aAvwnKMVQTQXRdi
    ijtluFWZsE1ZMkiK

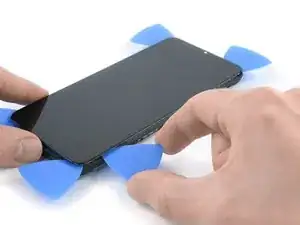

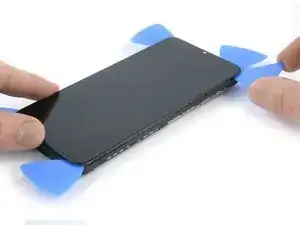

    • Insert a fifth opening pick and slide it along the right edge of the phone to cut the remaining adhesive.

    • Try not to remove the display all the way yet, the display cables are still threaded through the frame and possibly adhered on the inner side of the midframe.

  31. pY3mSBmAhwDasWQT
    pY3mSBmAhwDasWQT
    5dYBkVcvGrqQeH3M

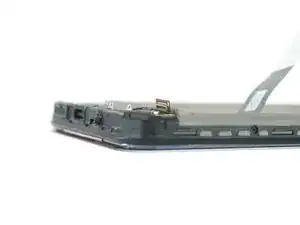

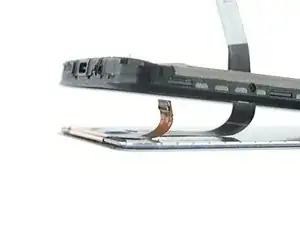

    • Thread the digitizer flex cable through the gap in the midframe.

  32. LE3lVIrcwEwcxKyP
    LE3lVIrcwEwcxKyP
    6MUTeQVJDmRKp1SJ
    GfJPhRuTgDibZqVa

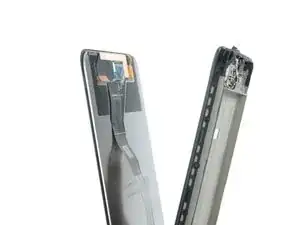

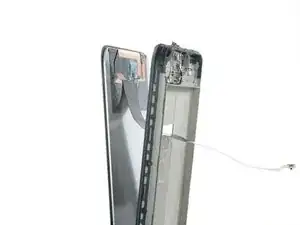

    • Thread the display flex cable through the gap in the midframe and remove the screen.

    • Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.

Abschluss

If possible, turn on your device and test your repair before installing new adhesive and resealing.

To reassemble your device, follow these instructions in reverse order. Apply new adhesive where necessary after cleaning the relevant areas with isopropyl alcohol (>90%).

The best way to secure the new screen is to apply a sheet of custom-cut double-sided tape to the back of the screen.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
