Xiaomi Redmi 2 Front Speaker Replacement

Geschrieben von: Alicia Brenner
  • Kommentare: 12
Xiaomi Redmi 2 Front Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

30 - 35 Minuten

Einleitung

Use this guide to remove the front speaker in your Xiaomi Redmi 2 for repair or replacement.

  1. Int1Q2xfsmTCKB2H
    Int1Q2xfsmTCKB2H
    XGAUFwKlmqOcYKiA

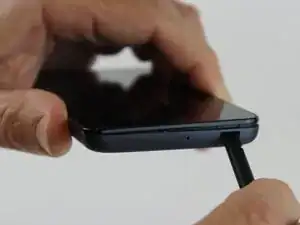

    • Use the flat end of the spudger to remove the back panel from the mid-frame and front body.

    That's unnecessary. The cover itself has a small notch on it to remove it to the left

    Mad Max -

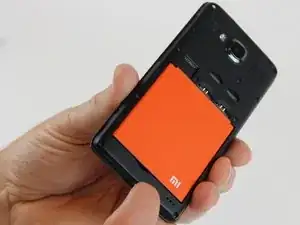

  2. hxtEJR1TXTjdwWBO

    • Insert your finger into the curved opening of the mid-frame.

    • Lift the battery and remove.

  3. 6GNqlnALgBcaBXZc

    • Remove the SIM and/or memory cards if present.

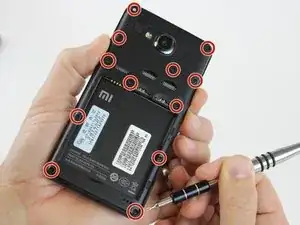

    • Remove twelve 3.4 mm Phillips #000 screws securing the mid-frame to the front body.

  4. ZByFsitkO5DOwSDp

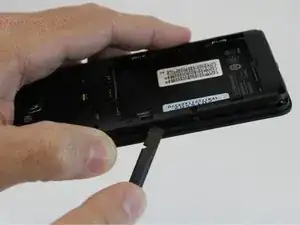

    • Slide the spudger between the mid-frame and front body, gradually prying the two bodies apart as you slide the spudger around the perimeter of the phone.

  5. yIipI2PpWx3JCFX3

    • Remove the 3.4 mm Phillips #000 screw that holds the motherboard to the front body.

    • Keep this screw separate from the initial twelve.

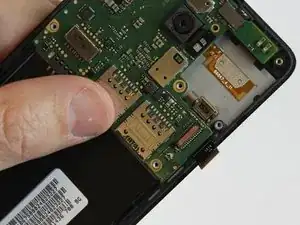

  6. ubfYjSTT4DX2FTmM
    ubfYjSTT4DX2FTmM
    OJXWTJxxrWeKfZrZ

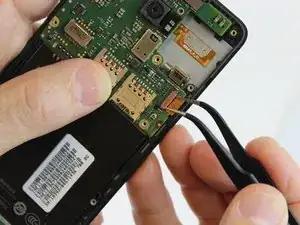

    • Using one prong of the tweezers, pry back the brown clip located on top of the LCD ribbon connector.

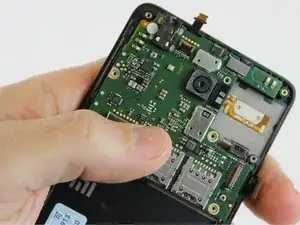

  7. BFuWSRQDcKwwl2aS
    BFuWSRQDcKwwl2aS
    TIuP3DjNVtjJasKx

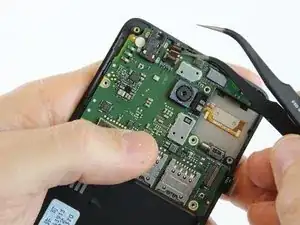

    • Using one prong of the tweezers, pry the ribbon clip away from the motherboard.

    I broke the connector of this flat cable, which with a replacement part without having to change the entire mother board? Another doubt, this flat cable is responsible for which function in the cell?

    lucaslgf2 -

    pull up the black plastic part of this conector to free the ribbon before remove! this step is missing!!!!

    Rodrigo Cunha -

    Thanks Rodrigo, saved me!

    Rodrigo -

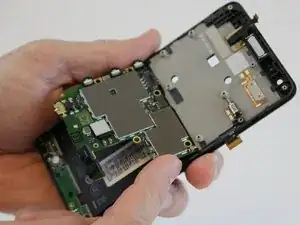

  8. oTdgpTPqSIyjr1Aj
    oTdgpTPqSIyjr1Aj
    DpPSbRiJJZXLIfN2

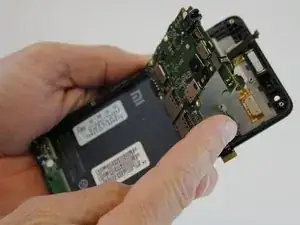

    • Lift and hinge the motherboard with your fingers.

  9. Rh3L12WbOotccf2T
    Rh3L12WbOotccf2T
    dLow3Oo4FMvTLH2p

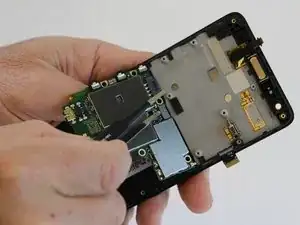

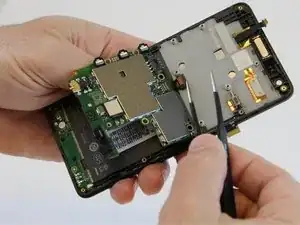

    • Using one prong of the tweezers, lift and pry back the metal clip positioned over the front proximity sensor ribbon connector.

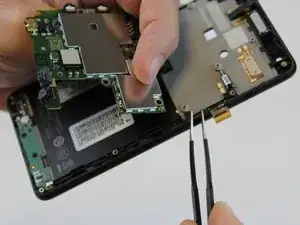

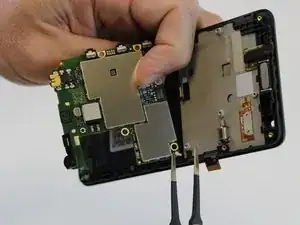

  10. eAuwtJ4NCVGpybqo
    eAuwtJ4NCVGpybqo
    EGRZYDV2teFKHVIC

    • Using the tweezers, pull the antenna connector from the motherboard.

    motherboard damage

    Rahul -

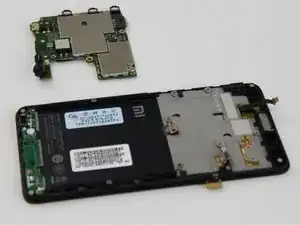

  11. YbMOZcRUOF6WDfdp

    • Lift the motherboard out of the front cover and set aside.

  12. IbFshEbA1ITivWas

    • Using the nylon or metal spudger, gently pry the front speaker from the screen assembly.

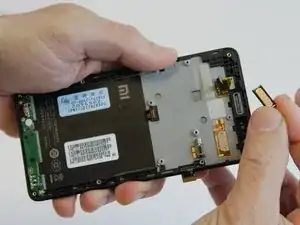

  13. bDMLAFwjAEx3nTAh

    • Using your fingers, gently lift the front speaker from the screen assembly.

    Thanks. I was replacing a friend's digitizer, and in the process, broke the speaker (they come apart very easily). So I decided to replace her broken speaker with mine (we both have a Note 2). Then I broke MINE taking it out. So now I have to order two new speakers. Arggghhh.

    moshiach.now -

    Rademi 2 back Spekar

    Amol Surve -

    Sar rademi 2 front Speakers probably

    Amol Surve -

Abschluss

To reassemble your device, follow these instructions in reverse order.
