Xiaomi Redmi Note 10 5G Screen Replacement

Geschrieben von: Dominik Schnabelrauch
  • Kommentare: 2
Xiaomi Redmi Note 10 5G Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

37

Zeitaufwand

1 - 2 Stunden

Einleitung

Use this guide to replace a cracked or broken screen on your Xiaomi Redmi Note 10 5G.

If the frame is deformed, it's important to replace it to make sure the new screen will mount correctly and won’t suffer damage from uneven pressure.

Due to the device’s design, you must remove the lithium-ion battery to access the display cables. If the battery was deformed during removal replace it with a new one—reusing a deformed battery is a potential safety hazard.

If your battery is swollen, take appropriate precautions. For your safety, discharge your battery below 25% before disassembling your device. This reduces the risk of a dangerous thermal event if the battery is accidentally damaged during the repair.

Note: This guide instructs you to replace only the screen while leaving the original frame and motherboard in place. However, some replacement screens for this phone come pre-installed in a new frame (a.k.a. chassis), which requires a very different procedure. Make sure you have the correct part before starting this guide.

You’ll need replacement adhesive to reattach components when reassembling the device.

  1. yqiUllHDrFAZUa5H

    • Prepare an iOpener and apply it to the back cover for at least two minutes to loosen the adhesive underneath.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

  2. bUvZ2efgH24TCsYD
    bUvZ2efgH24TCsYD
    L1KUbgU4c4UILvDd
    MlT4qEWnBPCYfAh1

    • Secure a suction handle to the bottom edge of the back cover, as close to the edge as possible.

    • If the back cover is cracked, the suction handle may not stick. Try lifting it with strong tape, or superglue the suction handle in place and allow it to cure so you can proceed.

    • Lift the back cover with the suction handle to create a small gap between the back cover and the frame.

    • If you have trouble creating a gap, apply more heat to further soften the adhesive. Follow the iOpener instructions to avoid overheating.

    • Insert an opening pick into the gap you created.

    • Slide the opening pick to the bottom right corner to slice the adhesive.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  3. T2XAGTPIWwVhKkey
    T2XAGTPIWwVhKkey
    QFsNrjjdw2YIbacx

    • Insert a second opening pick at the bottom edge of your phone.

    • Slide the opening pick to the bottom left corner to slice the adhesive.

    • Leave the opening picks in place to prevent the adhesive from resealing.

  4. FVYwmWnq5bJ2pcDd
    FVYwmWnq5bJ2pcDd
    gXPjwkE2QJU2l6VK
    oHYomXm3TIkPbWEu

    • If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener to reheat it.

    • Insert a third opening pick at the bottom left corner of your phone.

    • Slide the opening pick along the left edge of your phone to slice the adhesive.

    • Leave the opening pick in the top left corner to prevent the adhesive from resealing.

  5. ZZOIybMcOd3UjfuX
    ZZOIybMcOd3UjfuX
    v6Cf4BmQMQHev2jM

    • Insert a fourth opening pick underneath the top left corner of your phone.

    • Slide the opening pick along the top edge to slice the adhesive.

    • Leave the opening pick in the top right corner to prevent the adhesive from resealing.

  6. WGRBLvDP6XCYYndW
    WGRBLvDP6XCYYndW
    OgahCAL6OAiYueCX

    • Insert a fifth opening pick underneath the top right corner.

    • Slide the opening pick along the right edge of the back cover to slice the remaining adhesive.

  7. 3mRErkMYi515EtlD
    3mRErkMYi515EtlD
    r3xrElTItlhgMMV1

    • Remove the back cover.

    • Apply new adhesive where necessary after cleaning the relevant areas with isopropyl alcohol (>90%).

    • Secure the new rear glass with pre-cut adhesive or double-sided adhesive tape. After installing the rear glass, apply strong, steady pressure to your phone for several minutes to help the adhesive form a good bond—a stack of heavy books works well.

  8. mQEUqAOCmmJBNLta

    • Use a Phillips screwdriver to remove the four 3.9 mm-long screws securing the camera cover.

  9. aJLFnDelqysFDpK1
    aJLFnDelqysFDpK1
    mLDyGUCWYBUIlpgQ

    • Insert an opening pick into the gap between the left edge of the camera cover and the midframe.

    • Use your opening pick to pry up the camera cover by tilting it downwards.

  10. 5XQDlM1cONEj431y
    5XQDlM1cONEj431y
    OHyUl3fNSl5bDPhJ

    • Remove the camera cover.

  11. LkJZufWHJXbQRSRv
    LkJZufWHJXbQRSRv
    NBiFHpFpHFih6udq

    • Use a Phillips screwdriver to remove the thirteen 3.9 mm-long screws securing the midframe.

  12. S3tjsn5GoJjeNOGV
    S3tjsn5GoJjeNOGV
    QwklpDQPKGIcEVaT
    vQXtQDcBZ5CYHAVj

    • Insert a SIM card eject tool, a SIM eject bit, or a straightened paper clip into the hole on the SIM tray located at the left edge of the phone.

    • Press directly into the hole to eject the SIM card tray.

    • Remove the SIM card tray.

  13. JDrmYWKIhou5hxid
    JDrmYWKIhou5hxid
    6GyIdgEJgc1qqAET

    • Use a spudger to disconnect the power and volume button flex cable by prying the connector straight up from its socket.

  14. 4gpnHLPmuE1odKEs
    4gpnHLPmuE1odKEs
    BwYrWpuSYhmKTK1y

    • The midframe of the Xiaomi Redmi Note 10 5G is held in place by plastic clips.

    • Insert an opening pick between the midframe and front panel assembly on the left edge of the phone where the SIM tray slot is located.

  15. paiWu2MmDSHWlepN
    paiWu2MmDSHWlepN
    cn1rKpNgv2yYTFlm

    • The plastic clips of the midframe are sitting in place tightly. Releasing them might require some force.

    • Slide the opening pick along the left edge of the phone to release the plastic clips.

  16. 6RJf4Tsf2cRdYm5b
    6RJf4Tsf2cRdYm5b
    hkXT5gb2ONcCOWaK

    • Slide the opening pick along the bottom edge of the phone to release the plastic clips.

  17. gg6FRPuRqgrFAAB6
    gg6FRPuRqgrFAAB6
    gXFSpRFkKTdKPqxB

    • Slide the opening pick along the right edge of the phone to release the plastic clips.

  18. aOFSXmegPIUg1ebW
    aOFSXmegPIUg1ebW
    oOrZpJdRMMguDSoO

    • Slide the opening pick along the top edge of the phone to release the remaining plastic clips.

  19. SDrGoLGCXJTuZEby
    SDrGoLGCXJTuZEby
    UpZRHXFAH4BJfLIq

    • Before removing the midframe make sure the power and volume button flex cable is freed and not tangled with the motherboard to avoid tearing it.

    • Remove the midframe.

  20. MHlMHw4uprq6hWAc
    MHlMHw4uprq6hWAc
    wUVHCf1yFGBoCFjC
    VvrKZeWIU2NuUaU2

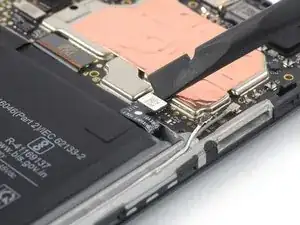

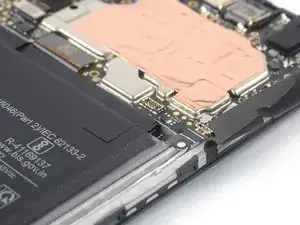

    • Use a spudger to disconnect the battery flex cable by prying the connector straight up from its socket.

    • Fold the battery cable to the side to get free access to the battery pull-tab.

  21. BPBWZhhdWhHXDDgP
    BPBWZhhdWhHXDDgP
    ahQyatvohhfkhXSm
    grrb5X2KTpAM62KV

    • The battery is secured to the rear case with two pieces of stretch-release adhesive.

    • Don't jab the battery with any sharp tools. A punctured battery may leak dangerous chemicals or catch fire.

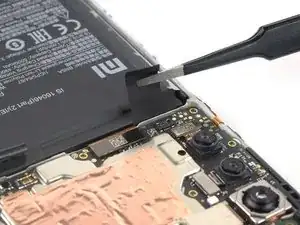

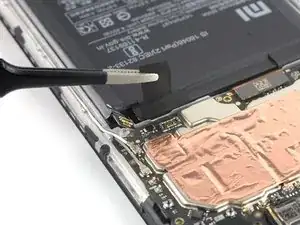

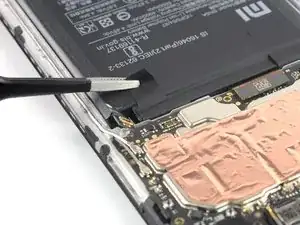

    • Use a pair of blunt nose tweezers or a clean fingernail to peel up both battery adhesive pull-tabs to unstick them from the top edge of the battery.

    It would be helpful if you could put a link in the guide to where you can buy the stretch -release strips.

    Thanks!

    Harry van Dijk -

  22. PZPSiZ4KY3mpLbUA
    PZPSiZ4KY3mpLbUA
    hHxGnXPV2CY2ViLU
    J2bHiE3U33MVpkNu

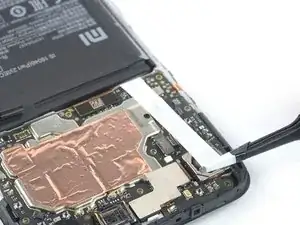

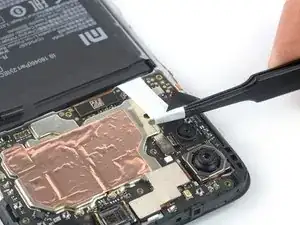

    • Grab the first pull-tab with a pair of blunt nose tweezers or your fingers and slowly pull it away from the battery towards the top edge of your phone.

    • Pull hard enough to maintain tension on the strip, but don't force it. Give it plenty of time to stretch and unstick from under the battery.

    • Don't press down on the battery. Hold the phone firmly by its sides.

    • Keep the strip flat and unwrinkled. Try to pull evenly on the whole strip, rather than pulling in the middle or on one side.

    • Pull at a low angle so the strip doesn't snag on the edge of the battery.

    • If the adhesive strip breaks off, try to retrieve it using your fingers or blunt tweezers, and continue pulling—but do not pry under the battery.

    • If the adhesive breaks off underneath the battery and can't be retrieved, continue with the next step.

  23. 6pHdtNSqC3ogqOCm
    6pHdtNSqC3ogqOCm
    Wt4iDVUvdlNKyh4V
    EFXMlAEo2yNUwvjg

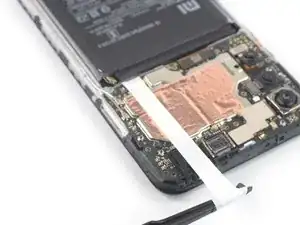

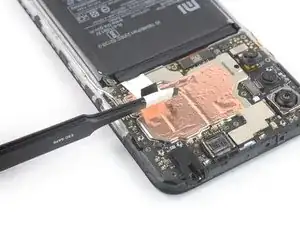

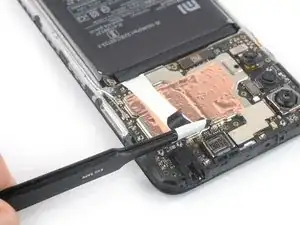

    • Repeat the previous pull-tab removal procedure on the second pull-tab.

    • Follow the same procedure as with the previous strip: don't press down on the battery, keep the strip flat and unwrinkled, and pull at a low angle.

    • If the adhesive breaks off underneath the battery and can't be retrieved, apply a few drops of high concentration (over 90%) isopropyl alcohol under the edge of the battery in the area of the broken adhesive strip(s).

    • Wait about one minute for the alcohol solution to weaken the adhesive.

    • Use the flat end of a spudger to gently lift the battery.

    • Don't try to forcefully lever the battery out. If needed, apply a few more drops of alcohol to further weaken the adhesive. Never deform or puncture the battery with your pry tool.

  24. VnUZcagPbGuBGtOq
    VnUZcagPbGuBGtOq
    oyHbFEvoXKHa3Q6d

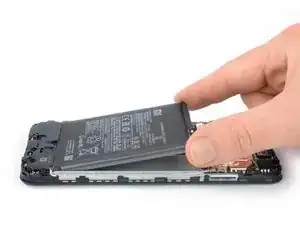

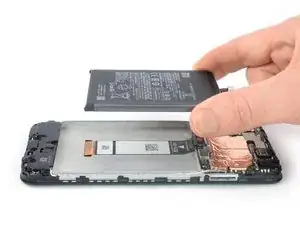

    • Remove the battery.

    • Do not reinstall a damaged or deformed battery, as doing so is a potential safety hazard.

    • If there's any alcohol solution remaining in the phone, carefully wipe it off or allow it to air dry before installing your new battery.

    • Secure the new battery with pre-cut adhesive or double-sided adhesive tape. In order to position it correctly, apply the new adhesive into the device at the places where the old adhesive was located, not directly onto the battery. Press the new battery firmly into place.

    • During reassembly, temporarily reconnect the battery to the motherboard to help align it correctly. Disconnect the battery after it is seated.

  25. Qpov5W5qrAitqyUC
    Qpov5W5qrAitqyUC
    D1BwEpmUPXJriiGC

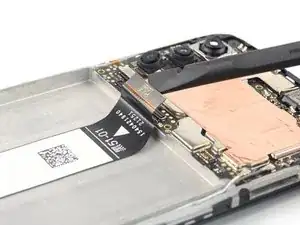

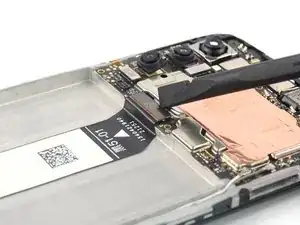

    • Use a spudger to disconnect the display flex cable by prying the connector straight up from its socket.

  26. dewsFxTeiokfjViC
    dewsFxTeiokfjViC
    AOCdr4YBRNTNppVU

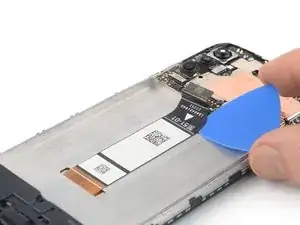

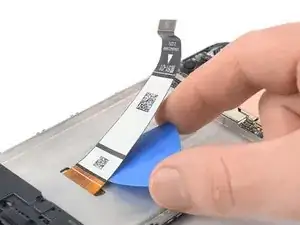

    • The display flex cable is adhered to the front panel assembly by mild adhesive.

    • Carefully slide an opening pick underneath the display flex cable to separate it from the front panel assembly.

  27. rpOJpY5f6Ciq5K3Z
    rpOJpY5f6Ciq5K3Z
    wEnuRgOBJXWkXvTo
    sw5MaAURZOnMAIgG

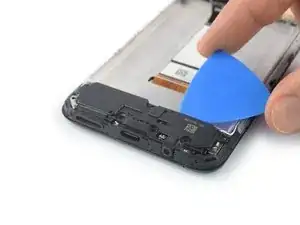

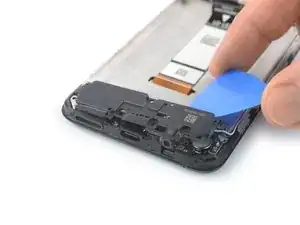

    • Insert an opening pick into the gap between the front panel assembly and the loudspeaker at the top edge of the speaker.

    • Twist the opening pick sideways to pry up the loudspeaker.

    • Remove the loudspeaker.

  28. KIMjOI5OiKWEBe6S
    KIMjOI5OiKWEBe6S
    FEsQOsRqoADxetAB

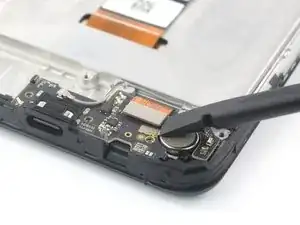

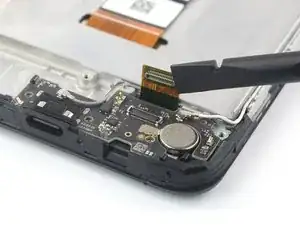

    • Use a spudger to disconnect the digitizer flex cable by prying the connector straight up from its socket.

  29. WaMNGppQUqZU4GkQ

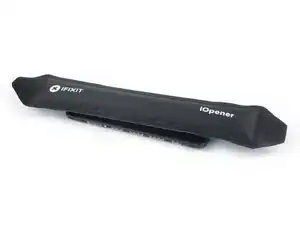

    • Apply a heated iOpener or a heat gun to the screen to loosen the adhesive underneath. Apply the iOpener for at least two minutes.

    • The adhesive of the Redmi Note 10 5G is very strong and it's hard to get underneath the display panel in the beginning. It is likely that you will have to reapply the iOpener more than once.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the device.

  30. vTrnKE3TPgGntAZi
    vTrnKE3TPgGntAZi
    6PpFNEVgCP2hpQpp

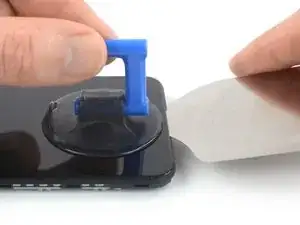

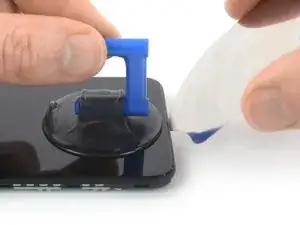

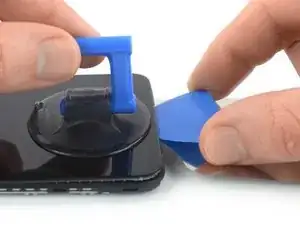

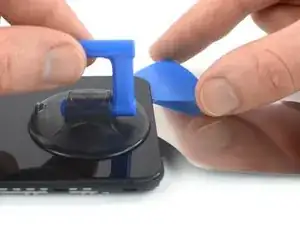

    • Once the screen is warm to the touch, apply a suction handle to the bottom edge of the screen.

    • If your screen is badly cracked, covering it with a layer of clear packing tape may allow the suction handle to adhere. Alternatively, very strong tape may be used instead of the suction handle. If all else fails, you can superglue the suction handle to the screen.

    • Lift the screen with the suction handle to create a small gap between the screen and the frame.

    • Insert an iFlex into the gap between the midframe and the screen.

  31. ZEUBVNUTJCT6ngUT
    ZEUBVNUTJCT6ngUT
    6DTCPdNNUHgpkEsg
    BUoPMaEdBoNF5Kaq

    • Insert an opening pick above the iFlex.

    • Slide the opening pick to the bottom right corner of the screen to slice its adhesive.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  32. NpXBiRSIfEyZiEaI
    NpXBiRSIfEyZiEaI
    gFDADrcpiBtKdbMU

    • Remove the iFlex.

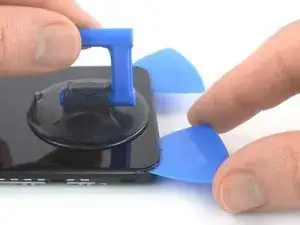

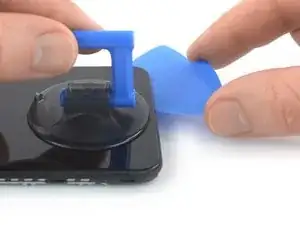

    • Insert a second opening pick at the bottom right corner and slide it to the bottom left corner of the screen to slice the adhesive.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  33. JYAKirPUGeSyCO5k
    JYAKirPUGeSyCO5k
    DSiW5QhblNU3yNMX
    sQ3hv6BDvWj4VZeA

    • If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener or heat gun for 1-2 minutes to reheat it.

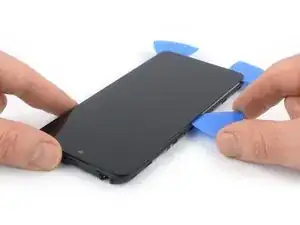

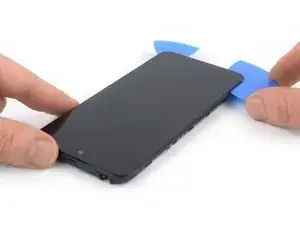

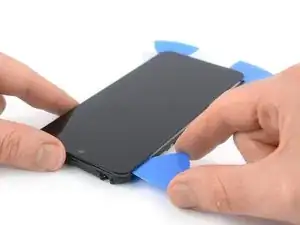

    • Insert a third opening pick underneath the bottom left corner of the screen.

    • Slide the opening pick along the left edge of the screen to slice the adhesive.

    • Leave it in the top left corner to prevent the adhesive from resealing.

  34. m4naatQM5OwUjttM
    m4naatQM5OwUjttM
    RlZe6qSkAsrYDGPO

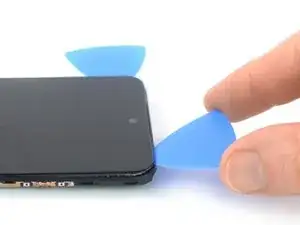

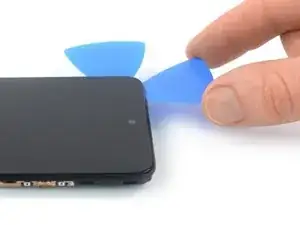

    • When you slice near the front facing camera, insert only the tip of the opening pick (about 2-3 mm) to avoid damaging or smearing the camera.

    • Insert a fourth opening pick at the top left corner of the screen.

    • Slide the opening pick along the top edge of the phone to slice the adhesive.

  35. dXt4aaCdpypFg2BU
    dXt4aaCdpypFg2BU
    BkYuJKVvNBOMxZK4

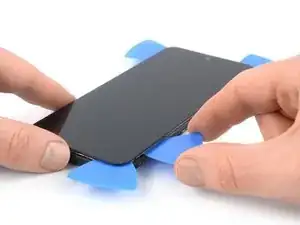

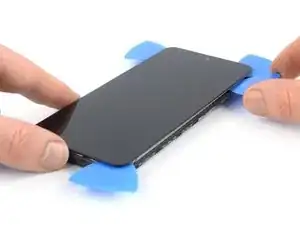

    • Insert a fifth opening pick and slide it along the right edge of the phone to slice the remaining adhesive.

    • Do not try to remove the display all the way yet, the display and the digitizer cable are still threaded through the front panel assembly.

  36. ZFgLFcTpgY3iPGhH
    ZFgLFcTpgY3iPGhH
    NucIPmXYakFWMGYB
    xNYmxCRiDSptxwyX

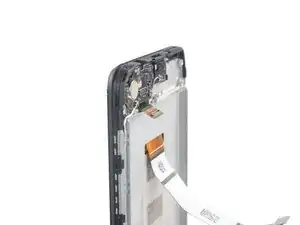

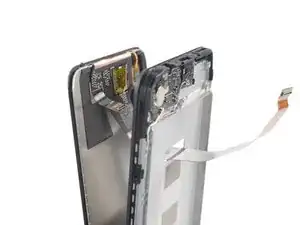

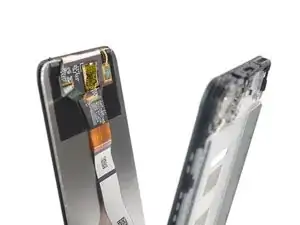

    • Thread the digitizer flex cable through the gap in the front panel assembly.

    • Thread the display flex cable through the gap in the front panel assembly.

  37. CfMycinkH4lWuTyy

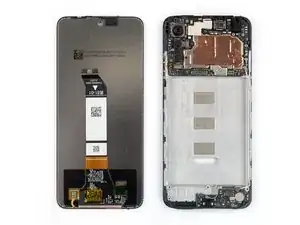

    • Remove the screen.

    • Compare your new replacement part to the original part—you may need to transfer remaining components from your old screen to your replacement part.

    • Apply new adhesive where it's necessary after cleaning the relevant areas with isopropyl alcohol (>90%).

    • During reassembly, follow this guide in case you're using a pre-cut adhesive card.

Abschluss

If possible, turn on your device and test your repair before installing new adhesive and resealing.

To reassemble your device, follow the above steps in reverse order.

The best way to secure the new screen is to apply a sheet of custom-cut double-sided tape to the back of the screen.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
