Xiaomi Redmi Note 2 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

This guide can be useful if you are replacing the motherboard or camera modules.

  1. RGGNyWOqdOFh21Pb

    • Remove 12 screws and take off top panel

  2. O2gNEgPLtR5NK6mW
    O2gNEgPLtR5NK6mW

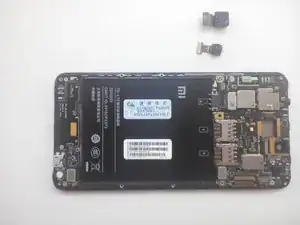

    ItBBWoPvKHwc2kgJ
    DAhDcPnTdWJVar2M

    • Unplug the power cord and all marked ribbon cables.

  3. DHbFqIqs2bxoalpP

    • Camera modules are disconnected.

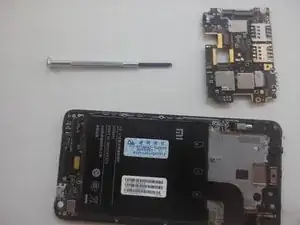

  4. LCPQwppYFqUCU15X

    • Motherboard is removed.
