Xiaomi Yi Front Panel Replacement

Geschrieben von: William Zipperer
  • Kommentare: 3
Xiaomi Yi Front Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

The front panel is attached to the main case of the camera. It can be removed with a small blue plastic opening tool.

The front panel does not include the lens, but does allow you access to other internal parts of the camera; or, to replace a damaged front panel.

  1. sFcVWZYBHmLqMhZj

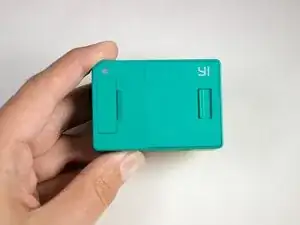

    sFcVWZYBHmLqMhZj

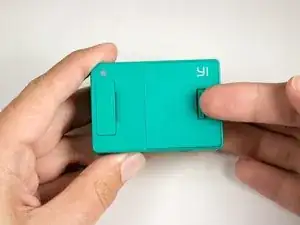

    EeNl1hTyAmP4Us4C

    • Push the battery door switch to the left.

    • Lift the battery door up.

  2. S4S4V1ZpcnPq5tvr

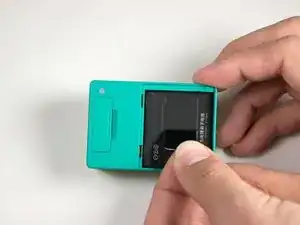

    S4S4V1ZpcnPq5tvr

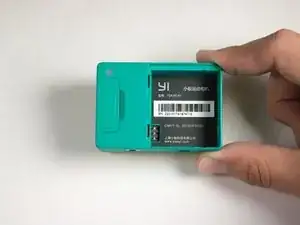

    Gd3PQA4IyHDT1lJm

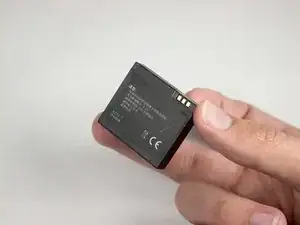

    G6eTX6xM2aQOQM6i

    • Lift the battery tab up.

    • Remove the battery by pulling the removal tab.

  3. OIic3D1eOtPsfhDH
    OIic3D1eOtPsfhDH

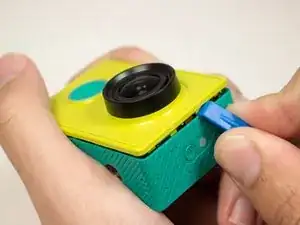

    NH5lnA6vNgT3yjpX

    • Introduce the plastic opening tool into any of the sides of the camera.

    • Pry with the plastic opening tool at the seam between the front and the back panel.

  4. SkYtmrQZORHZ1DTo
    SkYtmrQZORHZ1DTo

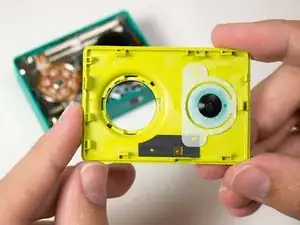

    wBATGNQRKRGQqxOI

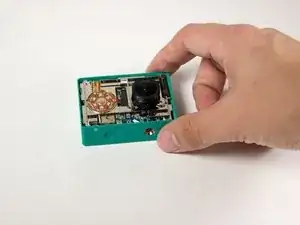

    WBncT1rLsCTZFadQ

    • Slide prying tool along the seam until front panel is fully separated from the back panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
