Xserve G5 CD Drive Replacement

Schwierigkeitsgrad

Very easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

It's my first guide so hello fixers ! This Xserve G5 is the top of the top : Dual 2.7 Ghz PowerPC G5 from IBM, 2 GB DDR, 3x 80GB. But a sad day, the PSU died. That's all. So now, repair !

  1. kBvaanKOTMJKaFAx

    • Here's my dead Xserve G5. I need a new power supply for it. So he will serve for the demo.

  2. Yt2R2vgEOPtbBXVx

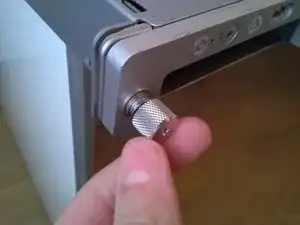

    • Unscrew the two screws.

  3. PtO2kbGeEeuK53lY

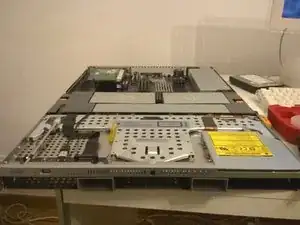

    • Remove the top of the server. You will have something like this.

  4. lHWwkGoRrTB6uYoR

    • Hello little CD drive ! It's retirement time !

  5. MkOEkqeubKWyYerj
    MkOEkqeubKWyYerj
    ANRQNX1keA5KeYH2

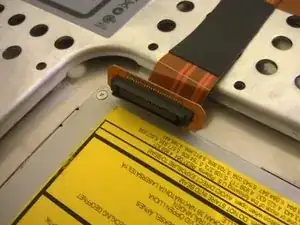

    • Disconnect the cable.

    • Push the little metal thing to the left to unsecure the CD drive.

  6. GJVtLjycrmZuFuk6
    GJVtLjycrmZuFuk6
    BylKyZ4Q6ZYZXHh6
    EGibd1lEmBrjIvvC

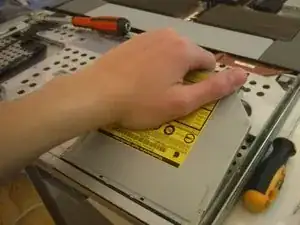

    • Push the drive

    • Pull the drive.

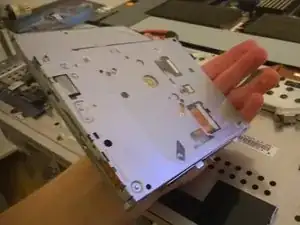

    • And finally, take the drive !

Abschluss

To reassemble your device, follow these instructions in reverse order.
