Einleitung
Werkzeuge
-
-

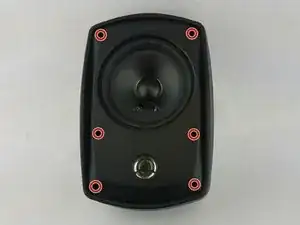

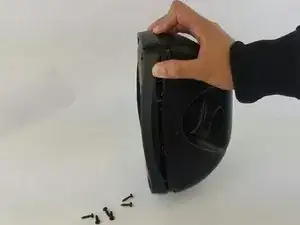

Crack open both parts of the casing carefully.
-

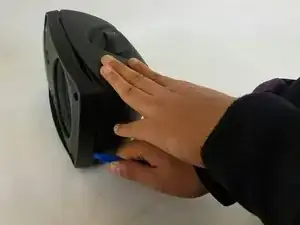

Using a plastic opening tool, wedge open the bottom of the speaker to separate the two parts of the speaker.
-
-
-

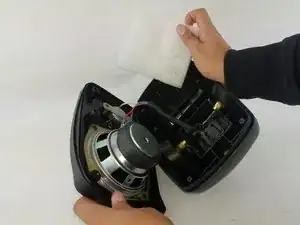

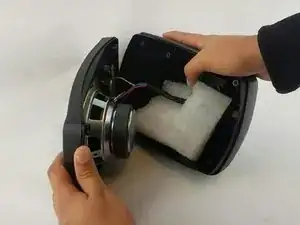

Remove the cooling foam.
-

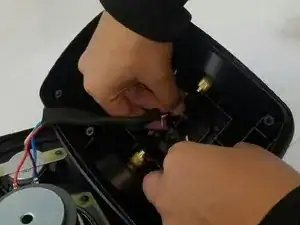

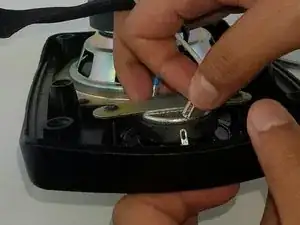

Use a metal spudger to push the tab in on the red wire.
-

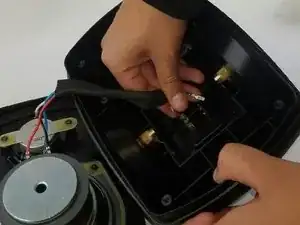

Repeat the process for the blue wire.
-
-
-
The blue wire can now be removed from its connector.
-

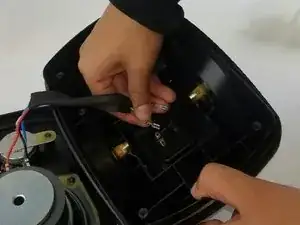

Remove the red wire to free the rear casing.
-
-
-

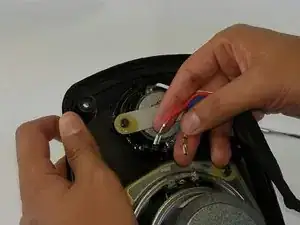

Use the metal spudger to bend down the metal tabs that hold the wires to the terminals. The tabs are small and in between the grooves of the terminal.
-
-
-

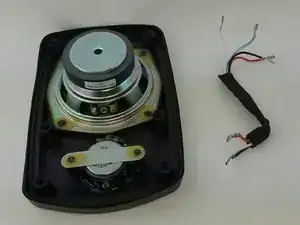

Once the wire assembly is removed, the entire front panel and speaker housing should be separated to replace.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
AT THE BEGINNING OF THIS JOB YOU HAVE TO REMOVE THE METAL MESH SPEAKER GRILLE. How does the metal mesh speaker grille come off? You can’t do anything with these directions until that is accomplished.
This is a key FIRST step - you left off the FIRST STEP. This guide is seriously incomplete - its literally a non-starter.
