Einleitung
This guide will walk you through the process of replacing the input/output panel.
Werkzeuge
-
-
Remove all four .5 mm Phillips head screws located on the back panel of the device.
-

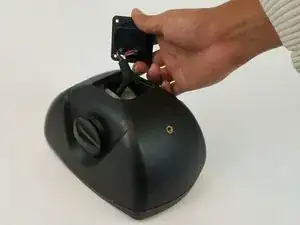

Pull out the input/output panel from the back of the device once all four screws are removed.
-
-
-

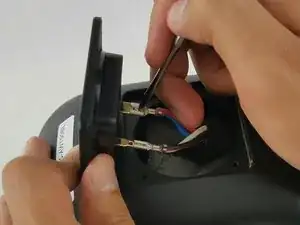

Gently push down on the tab holding the connectors together.
-
Repeat the process on the second connector. (Even though they appear different, they are held together using the same tabs.)
-

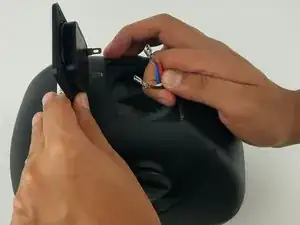

Remove both connectors to free the input/output panel.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
