Yamaha YPG-225 Keys Replacement

Geschrieben von: Kevin Green
  • Kommentare: 4
Yamaha YPG-225 Keys Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

10 - 15 Minuten

Einleitung

Learn to remove and replace a broken key for your keyboard with this guide. The process is fairly simple and mostly requires the removal of screws.

  1. tcROVArthgdqvueh

    • Turn the keyboard over so that the keys are facing the ground.

  2. aEPsvFoOLcohxwPT

    • Pop the tabs on the battery casing and remove it from the back plate.

  3. LxZEFLUr6FGDlSsy

    • Locate the six batteries and remove them from the battery cavity.

    what type of batteries? and how much ?

    thanks godbless

    colladonelson -

  4. dK1LwB6JImisZjL2

    • Remove the six 10mm screws at the top of the backplate.

  5. BkGVPhchOg6DKuon

    • Remove the seven 12mm screws in the middle of the back plate.

  6. UFuZeMIEVDGry2f6

    • Remove the eight 10mm screws from the side and the bottom of the back plate.

  7. OsZsTtHapxNOlGtb

    • As the face plate is no longer connected to the body of the keyboard, be careful to not drop the body when performing this step.

    • Flip over the keyboard.

  8. VWF13Ki1gfhdZyij
    VWF13Ki1gfhdZyij
    jd2xPp3PD5Tjibqe

    • Lifting from the front and the back of the face plate equally, pull the face plate up and then back, away from the keyboard.

    • Be careful when removing the face plate. There are wires attached.

  9. QfyKhPYmXkHOrT3S

    • Remove the 32mm screws that hold keys down.

    • Depending on which block of keys you wish to remove, there may be four screws instead of three.

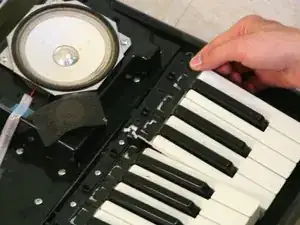

  10. AstS4XpVYFfqtPn2

    • Remove the block of keys that holds the key you wish to install.

    • To do this, apply a small force away from the top of the keys and slightly toward the floor.

    • If done correctly, the block of keys will come to a slight downward angle.

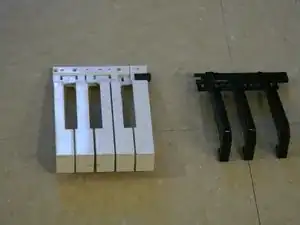

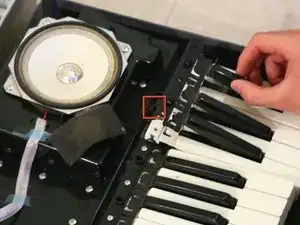

  11. qWSqDsEpDXFFFtmn
    qWSqDsEpDXFFFtmn
    EpsPtaGxsjNZVXDa

    • Press the tab on the back side of the block of keys out and detach the black keys.

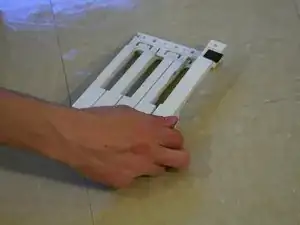

  12. mXIVYTHcKXIStHHX

    • Remove the individual white key(s) or the black key set(s) that require replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
