Yamaha YPG-225 Speaker Replacement

Geschrieben von: Lonnie Bissmeyer
  • Kommentare: 4
Yamaha YPG-225 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 - 20 Minuten

Einleitung

Learn to remove and replace a speaker for your keyboard with this guide. The process is fairly simple and mostly requires the removal of screws.

  1. tcROVArthgdqvueh

    • Turn the keyboard over so that the keys are facing the ground.

  2. aEPsvFoOLcohxwPT

    • Pop the tabs on the battery casing and remove it from the back plate.

  3. LxZEFLUr6FGDlSsy

    • Locate the six batteries and remove them from the battery cavity.

    what type of batteries? and how much ?

    thanks godbless

    colladonelson -

  4. dK1LwB6JImisZjL2

    • Remove the six 10mm screws at the top of the backplate.

  5. BkGVPhchOg6DKuon

    • Remove the seven 12mm screws in the middle of the back plate.

  6. UFuZeMIEVDGry2f6

    • Remove the eight 10mm screws from the side and the bottom of the back plate.

  7. OsZsTtHapxNOlGtb

    • As the face plate is no longer connected to the body of the keyboard, be careful to not drop the body when performing this step.

    • Flip over the keyboard.

  8. VWF13Ki1gfhdZyij
    VWF13Ki1gfhdZyij
    jd2xPp3PD5Tjibqe

    • Lifting from the front and the back of the face plate equally, pull the face plate up and then back, away from the keyboard.

    • Be careful when removing the face plate. There are wires attached.

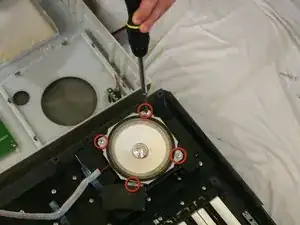

  9. dGfwHrMKuh2H32tK

    • Locate the speaker and remove the four 10mm screws in the corners of the speaker.

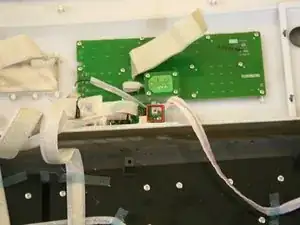

  10. kHFAZGXGmQfiWYor

    • Unplug the speaker's black and red wires from the small circuit board.

    • Do not be afraid to use a little force to get the plug out, but take care not to pull the wires from the plug.

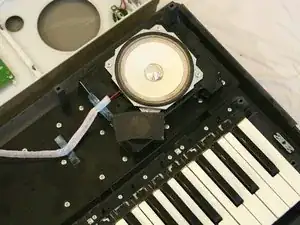

  11. 4OoNSwMWKITHYMqX

    • Remove the translucent blue tape that holds the speaker wires to the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
