Einleitung

Is your drone not functioning the way you want it to? Consider using this guide to replace the motherboard in your drone.

  1. 5XpIPtAUO5153pFQ
    5XpIPtAUO5153pFQ
    XKoeyF4YQPpvdraV
    • Before you begin start by putting on a ESD wrist strap to prevent ESD damage and remove the battery.

    • Flip over the drone so that the propellers are facing down and the camera is facing up.

  2. Xp1kefaM3UH2oAFP
    Xp1kefaM3UH2oAFP
    wU6gRbrp3iOleUIF
    nSs1EG3EjAXPsqhW

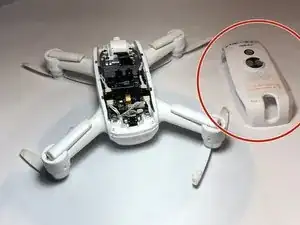

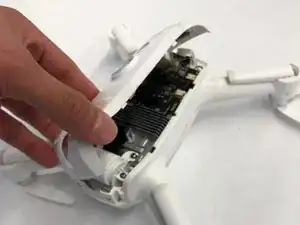

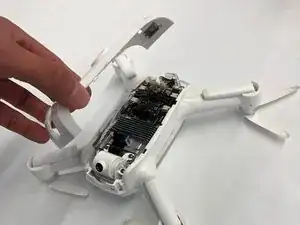

    • Grip the cover that covers the rest of the wires, and give it a slight pull to remove it.

  3. abB3kqYDdwA62tYk

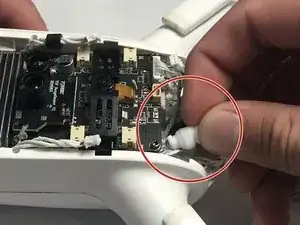

    • Remove the 4 rubber plugs that hold the drone and its internal parts together.

    • These plugs can be located in each corner of the drone, and are white.

  4. E4jsFgxXvgxDVkRR

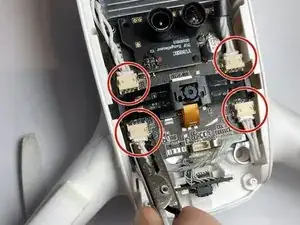

    • Unplug the four cables that are connected on the top face of the frame.

  5. wPe3tHKQOpJHyMZH
    wPe3tHKQOpJHyMZH
    gNl2MP1gaV3YGCHs

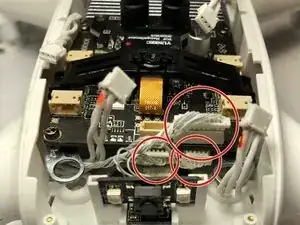

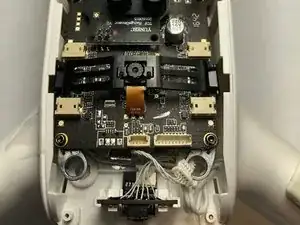

    • The rest of the wires that are still connected can be unplugged.

    • Using a pair of tweezers they can be unplugged.

  6. UMEWIRnZpAALLBf2
    UMEWIRnZpAALLBf2
    PALTNGP3fRkDCYxo
    XqwiqmFiRqxSAhOT

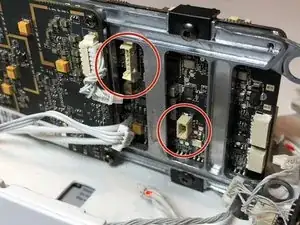

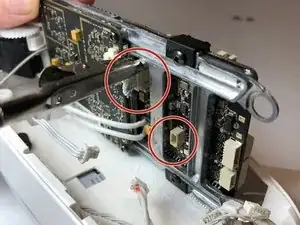

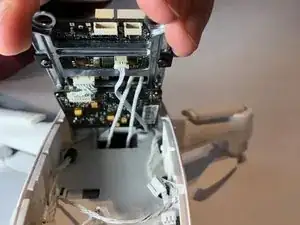

    • Lift up or tilt entire frame and mother board and unplug all the wires.

  7. ReEOVAEFLjEKng4v
    ReEOVAEFLjEKng4v
    S25ZErkwAAMpM1yK
    UBjhiOl2RKXwYcXW

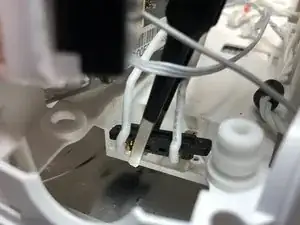

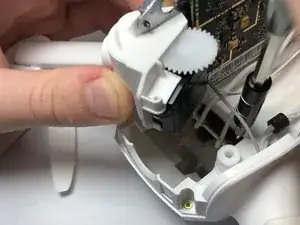

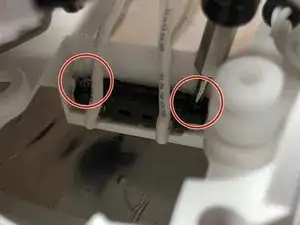

    • The battery connector has two wires connected to a plug in with two little screws.

    • Unscrew the two screws and pull it apart using a small tweezers.

  8. 1LCRWghB1CxFq3ST

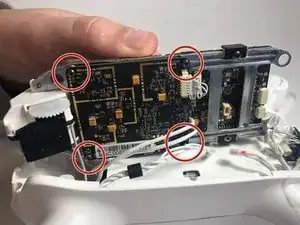

    • Flip over the frame and mother board and unscrew the mother board.

    • There are four screws on each corner of the mother board.

  9. FUr1TZmUkhfDfXID
    FUr1TZmUkhfDfXID
    FRMGLWJlb2mColR3

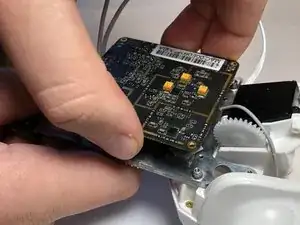

    • After the screws are out, the motherboard can be pulled out softly with hands.

    • Remove the motherboard from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
