Yuneec ST10 Plus Camera Switch Replacement

Geschrieben von: Joshua Collins
  • Kommentare: 7
Yuneec ST10 Plus Camera Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

3 Minuten

Einleitung

This guide will provide a step by step process to the removal and replacement of the shoulder buttons controlling the camera or video on the Yuneec ST10 Plus drone controller. The lefthand switch triggers the drone camera to take a snapshot and the righthand switch toggles the recording feature. If either of these functionalities stop working and you’ve troubleshot the problem to the physical switches, this guide can help you to replace the malfunctioning button and resume the functionality of the remote.

Good news: the two switches are connected with cable connectors, so no soldering will be required to replace them!

  1. fIRBhoLrZyWLBx2t

    • Flip the controller upside down to access the battery compartment.

    • Grab the compartment door and pull down.

    How should they remove the battery component door? Make sure to tell how, not just to do something. Also, why is battery capitalized?

    Alex Watkins -

  2. rWTnK1EwZgUroUDG

    • Gently lift the blue tab connected to the battery in order to remove the battery from its housing.

  3. Zs1OWOifdDBL3GKV
    Zs1OWOifdDBL3GKV
    TvnooIQsGrftMuvE
    dDPIYvpZmKcxFKPn

    • To disconnect the battery from the remote, grab the red and black connectors.

    • Pull gently on connectors until they disconnect.

    Make sure to use commas after introductory phrases (e.g., to disconnect the battery from the remote, grab).

    Alex Watkins -

    The action part of the photo is a little obscured. I would retake this picture to have the action more highlighted. Also, add additional pictures to make the flipbook style iFixit prefers.

    Alex Watkins -

  4. yYKGHDo2uHEnsh52
    yYKGHDo2uHEnsh52
    XSJxneGQAJUqORq5
    BTWQOV311MbXK1oP

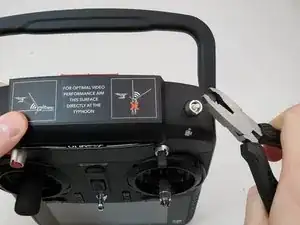

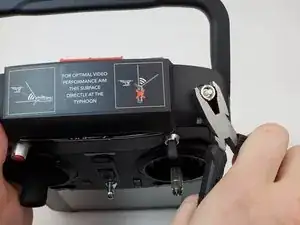

    • Grab ahold of the top of the black cap on the button with the pliers and pull up forcefully.

    Do you have additional pictures to show this action?

    Alex Watkins -

  5. OPF23qJrJbKXXdNl
    OPF23qJrJbKXXdNl
    Gjnx1pqQQNFSsfkI

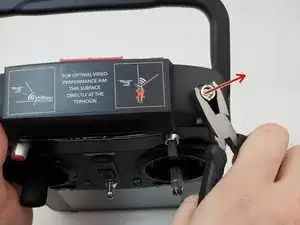

    • Twist counter clockwise on the silver portion of the device with a pair of pliers.

    What do you mean by silver portion of the device? Aren’t there multiple silver portions? Do you have more pictures?

    Alex Watkins -

  6. yPpnHC6uhAqBtfyH
    yPpnHC6uhAqBtfyH
    2l2H6jKQ4IKBVOJQ

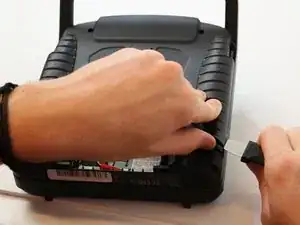

    • Slide the Jimmy underneath the rubber grips and pry upwards.

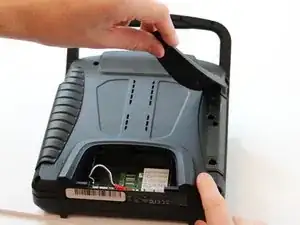

    • With your free hand grasp the rubber grips and pull upward to remove it.

  7. MsoeFeqjFVFvQQjn

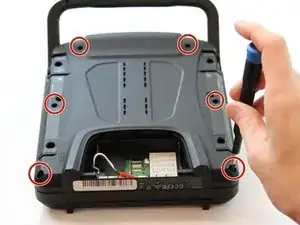

    • Remove the six 1.3 cm screws located on the back panel of the remote using the 5.5mm hex screw bit.

  8. AXoWXjHyULdWwXLR

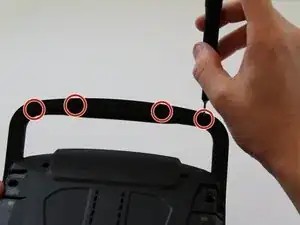

    • Remove the four 6mm screws from the handle using the 4mm hex driver bit.

  9. xYwHnibVVMB2MIIm
    xYwHnibVVMB2MIIm
    gvat65TpyBdkaVUu

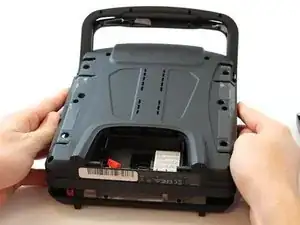

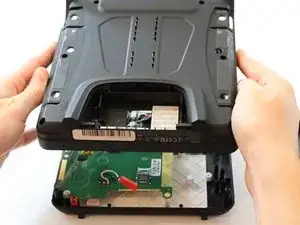

    • Carefully pull up and over on the back panel to remove. Take your time because there are wires connecting the two panels that can easily torn.

  10. kvUACISfnWOCEhuo
    kvUACISfnWOCEhuo
    coOppBESwjHgq3BT

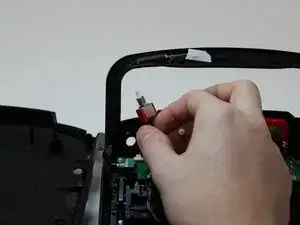

    • Flip your device.

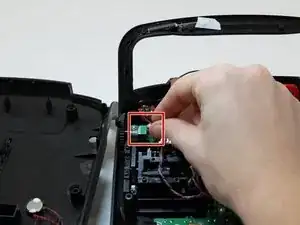

    • Once the silver cover holding the switch in place is removed, remove the switch by grabbing it and pulling back towards you.

    This step is very unclear to me. How should I pull it out? Where is this located on the device?

    Alex Watkins -

  11. qfhXqmtwMKQTLIQL
    qfhXqmtwMKQTLIQL
    11iSjv2a1FA6sZkV
    aAXvrHqyPaGwHPpv

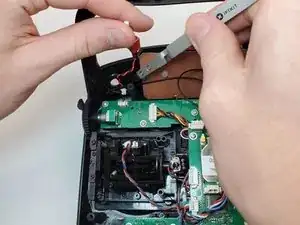

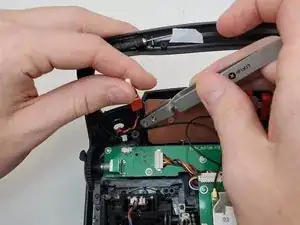

    • Once the switch is removed, disconnect the switch from the circuit board by pulling the cable from the cable connector.

    • The cable will come out by pulling it away from you if the bottom of the controller is oriented closer to you.

    Do you have more pictures? Make sure to match bullets to markup.

    Alex Watkins -

Abschluss

To reassemble your device, follow these instructions in reverse order.
