Yuneec ST16S Carrying Handle Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

This guide explains how to replace the carrying handle on the Yuneec ST16S. The handle allows you to carry the device with ease. You can find out more checking the troubleshooting page.

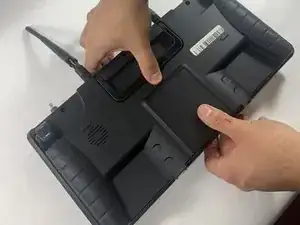

  1. bXgompGHAsrr2vkq

    • Hold down the button located above the battery while applying downward pressure to the battery.

  2. 4fYFSAQptCo364NF
    4fYFSAQptCo364NF
    y2huo5K1d1O6CDY1

    • While still holding down the button, slide the battery out of its slot.

  3. I5HKwarrt3Yxi4oY

    • Remove the single screw from the battery compartment.

  4. DxEoBSRPCWDtqTeQ
    DxEoBSRPCWDtqTeQ
    vo2TYZ2OHqo3kL2v

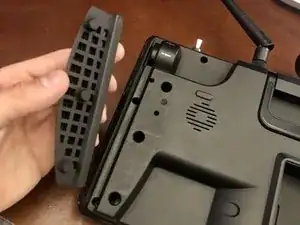

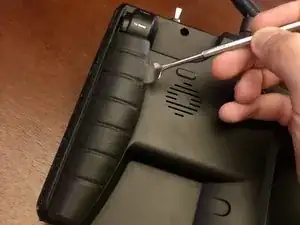

    • Remove the rubber bumpers from the back of the device using a spudger.

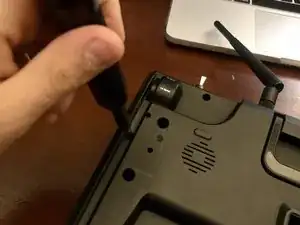

  5. Mb2vhbZTAuNMyFTj
    Mb2vhbZTAuNMyFTj
    5hrbRaynKtcsSNWQ

    • Remove the two screws located under each of the rubber bumpers.

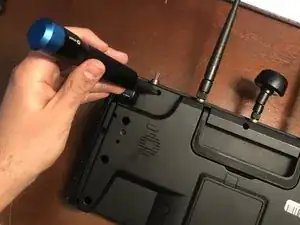

  6. e1YfIWPFWwKVvKlS
    e1YfIWPFWwKVvKlS
    OpO3lqKNJNc4TL1g
    2wPpoK2tLdh5UwLP

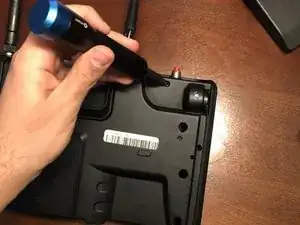

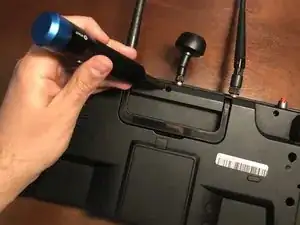

    • Remove the three screws along the top of the device.

  7. WupEGu4w5VehXhng
    WupEGu4w5VehXhng
    JJqavoLP6oZ2dfrU

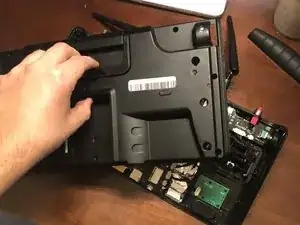

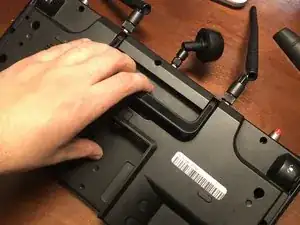

    • Carefully remove the backplate from the device.

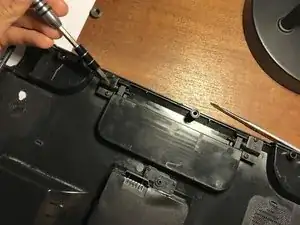

  8. 2sBVZI16GbgbgTGZ
    2sBVZI16GbgbgTGZ
    YqmZAecrxhRfAIRV

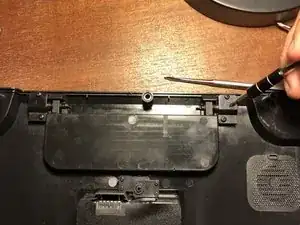

    • Remove the screws from the clips on both ends of the handle.

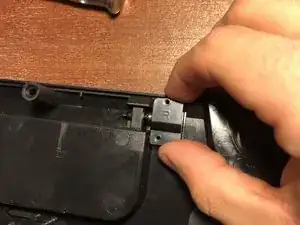

  9. gmpRFymLy45ZieHf
    gmpRFymLy45ZieHf
    hN5uRmq1cRdJs1pH

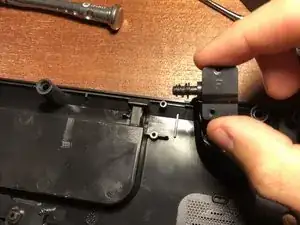

    • Slide the clips away from the handle.

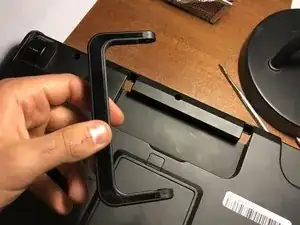

  10. fWNUnhuTGHMJ4WrY

    • Remove the handle from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
