Yuneec ST16S Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

This guide explains how to replace the speakers in the Yuneec ST16S. You can find out if the speakers need to be replaced by checking out the Yuneec ST16S Troubleshooting.

  1. bXgompGHAsrr2vkq

    • Hold down the button located above the battery while applying downward pressure to the battery.

  2. 4fYFSAQptCo364NF
    4fYFSAQptCo364NF
    y2huo5K1d1O6CDY1

    • While still holding down the button, slide the battery out of its slot.

  3. I5HKwarrt3Yxi4oY

    • Remove the single screw from the battery compartment.

  4. DxEoBSRPCWDtqTeQ
    DxEoBSRPCWDtqTeQ
    vo2TYZ2OHqo3kL2v

    • Remove the rubber bumpers from the back of the device using a spudger.

  5. Mb2vhbZTAuNMyFTj
    Mb2vhbZTAuNMyFTj
    5hrbRaynKtcsSNWQ

    • Remove the two screws located under each of the rubber bumpers.

  6. e1YfIWPFWwKVvKlS
    e1YfIWPFWwKVvKlS
    OpO3lqKNJNc4TL1g
    2wPpoK2tLdh5UwLP

    • Remove the three screws along the top of the device.

  7. WupEGu4w5VehXhng
    WupEGu4w5VehXhng
    JJqavoLP6oZ2dfrU

    • Carefully remove the backplate from the device.

  8. 4PSJoCDNoWYChC6a

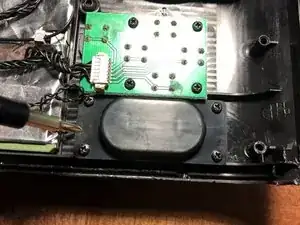

    • Remove the four screws from around the speaker and remove the plastic cover.

  9. NOgxkHKMQrYAxfx3

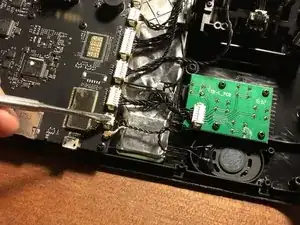

    • Unplug the speaker and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
