This guide will demonstrate how to put the camera apparatus back together on a Yuneec Typhoon H, if it has come apart.
Werkzeuge
-
-
In order to repair the camera and camera gimbal, remove the camera configuration from the body of the drone.
-

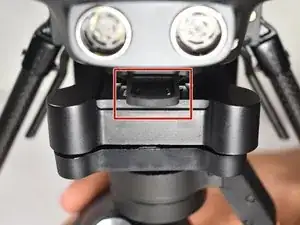

Pull up on the tab connected to the camera configuration and slide the entire apparatus off.
-
-
-

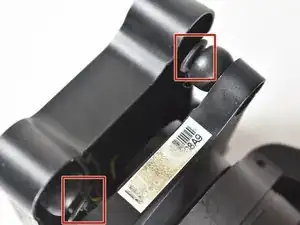

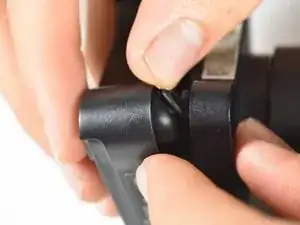

Put the gimbal bushings (the rubber balls) back into the plastic alignment mounts.
-

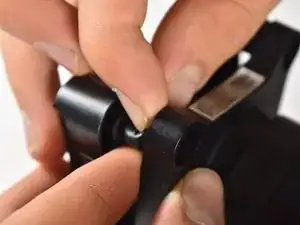

The circle that is separated from the main body of the bushing should then be inserted into the hole.
-
Abschluss
To reassemble your device, simply slide the camera mount back onto the bottom of the drone.
