Yuneec Typhoon H Landing Gear Replacement

Geschrieben von: Shasta Banchio
  • Kommentare: 0
Yuneec Typhoon H Landing Gear Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

Learn how and where to unscrew the landing gear legs in order to replace broken ones, without breaking your drone more.

  1. IGjA3glQUcgGXbmg
    IGjA3glQUcgGXbmg
    MvPfLVhaue25hIKU

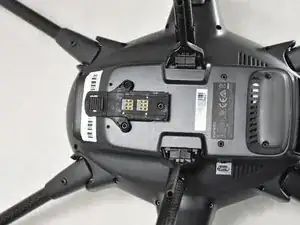

    • Lift all drone arms up so you can access the landing gear easily.

  2. rlYHCnLQ5wGXZnZS
    rlYHCnLQ5wGXZnZS
    gHmspEQ5k1MWNuhk
    3KY2xMsBWZMEb5VH

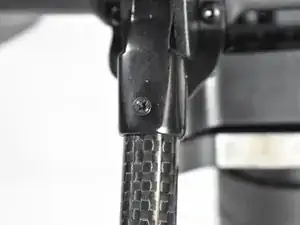

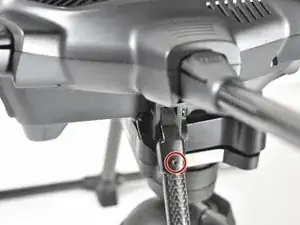

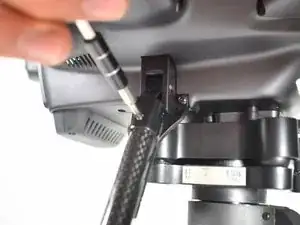

    • Unscrew the 16.9 mm screw at the top of the landing leg with a Phillips #00 screwdriver.

    • Make sure the screw head is not stripped in the process.

    • If stripped, the whole leg, including the internal sensors, will need to be replaced.

  3. woNwtZEGTcSYGLYt

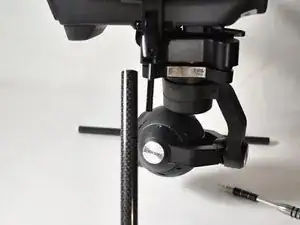

    • Pull the landing leg out slowly and remove it from the device.

Abschluss

Your Yuneec Typhoon H should now be ready to fly safely again.
