Yuneec Typhoon H Plus Landing Gear Replacement

Geschrieben von: Brice Black
  • Kommentare: 1
Yuneec Typhoon H Plus Landing Gear Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

7 - 15 Minuten

Einleitung

The landing gear of the Yuneec Typhoon H Plus is integral to beginning and ending flights. It is motorized, allowing the legs to fold up and out of the way during flight. It is possible for these legs to get damaged, or for the motor to stop working. Either of these issues will prevent proper usage of the drone. This guide will show you how to replace the landing gear of the Yuneec Typhoon H Plus. No special skills are required for this replacement.

  1. It3HT15UTZ2VUMUD
    It3HT15UTZ2VUMUD
    wKqwiXGoHBI3dZ3M

    • Flip the drone over and press the button to remove the camera.

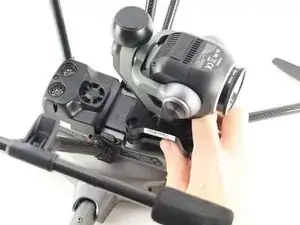

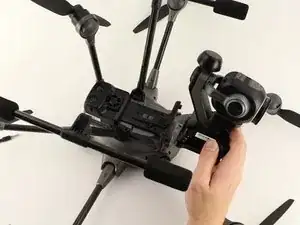

  2. yCk2EmqmD6FAQRR2
    yCk2EmqmD6FAQRR2
    QJjx4FwbBSXsrZEm

    • Slide the camera toward the front of the drone and remove it.

    i need camaera repaired or replaced , plus i want air drop system for h 500 pro plus...

    JOHN D McCONAGHY -

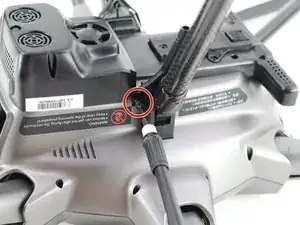

  3. CWyv6rohWOWAUttY
    CWyv6rohWOWAUttY
    U6MBKDR6pVfqP5DA

    • Remove two 11 mm screws from the base of the landing gear with a 2mm hex bit.

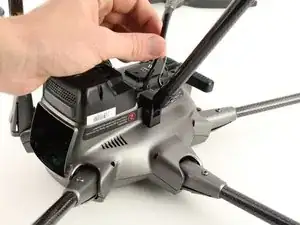

  4. PqV6HXvFtD6blB2h

    • Remove the landing gear stopper, allowing the wire to slide out of it.

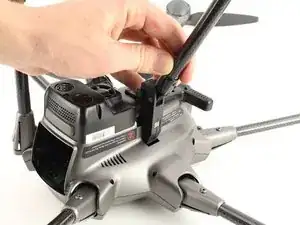

  5. QmCO5Da1VOHTXnPa

    • Lift the landing gear straight up and remove it from the drone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
