Yuneec Typhoon H Spring Clip Replacement

Geschrieben von: Claire Luce
  • Kommentare: 2
Yuneec Typhoon H Spring Clip Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

5 - 10 Minuten

Einleitung

The guide instructs you to replace the spring clip or (also known as the arm clip) at the arm attachment on the Yuneec Typhoon H.

The spring clips usually get broken during a crash.

  1. AVPYyyUwuqH12RFt
    AVPYyyUwuqH12RFt
    GhHAwoWZNDPK1WPj
    2R3GbYMrtLWBFPfg

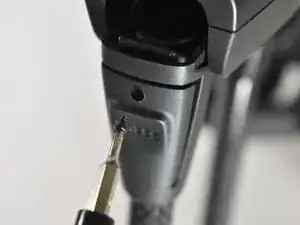

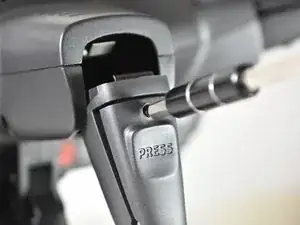

    • Using a JIS #00 screwdriver, unscrew the 3mm oval screw.

    • The oval screw is hard to remove once fully unscrewed, to remove the screw flip the drone upside down to have the screw fall out.

  2. 6eb3DsXQCqKGZSIY
    6eb3DsXQCqKGZSIY
    Na2EKDi2wVFBRTjY

    • For this step the arm must be bent.

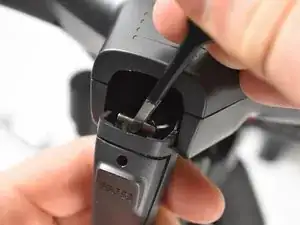

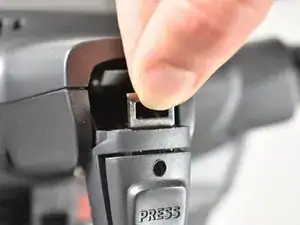

    • Remove the broken arm clip by pinching the metal top and then pull it out with an upward force.

    • The Blunt Nose Tweezers may be helpful in removing the arm clip.

    How did you get the broken piece out from under the screw?

    Richard Fuller -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Claire Luce

Mitglied seit: 16/04/18

371 Reputation

Ein Kommentar

what function does the little screw have?

Ruud -
