ZTE Awe Headphone Jack Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

20 - 30 Minuten

Einleitung

Be cautious when replacing the audio jack-- it is fragile and breaks easily. Tweezers are the optimal tool to use in order to remove and replace the audio jack.

  1. TlRE1HyDauFPggIs

    • Remove the back cover of the phone to expose the phone's mid-frame.

  2. LiqXFnrtxqKbArWY

    • Pry the battery up and out of the phone.

    Still Not Helping

    Eboni -

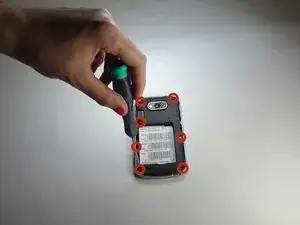

  3. j5PLnDZkpbYdVDRM

    • Use the Phillips Head 00 screw driver to unscrew the seven 0.1mm screws from the phone's mid frame.

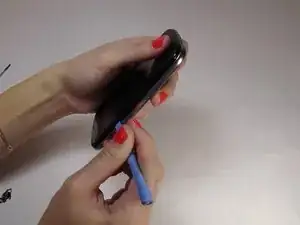

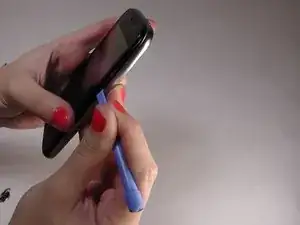

  4. DgmGDHUBGALIc2Xc
    DgmGDHUBGALIc2Xc
    Rj4TpM25pmqt5rFW
    NOsfiKNOqel6hiTo

    • Wedge the flat end of the spudger between the mid frame and the digitizer.

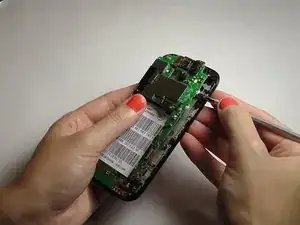

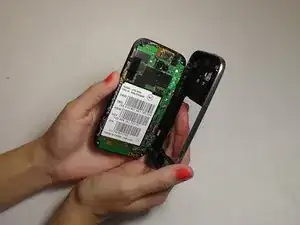

  5. XKIikxsK5SUgdjmO
    XKIikxsK5SUgdjmO
    EIkCC21QJQH1GYcC

    • Gently pry the mid frame away from the rest of the phone to expose the motherboard.

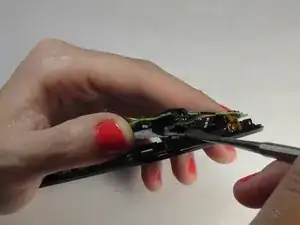

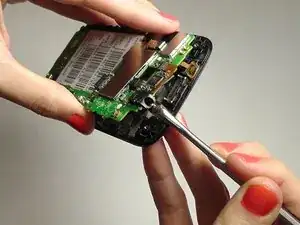

  6. C5opEmFxilKqN41i
    C5opEmFxilKqN41i
    wCUrftsjVgmMiyY1
    CYGcyK1BxcmveeWD

    • Locate the audio jack at the upper right hand corner of the device.

    • Use the metal spudger to pry the motherboard away from the device.

    • Use the metal spudger to unfasten the audio jack and pull it away from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
