ZTE Axon11 Display Replacement

Remove the Back Cover as you would do with any other Mobile ..

Get rid of Glue and plastic foils on top ..

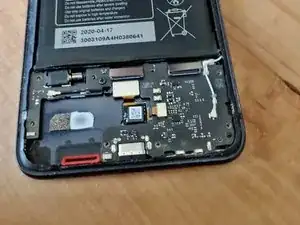

Unscrew lower cover Part (As far as i remember there have been 7 screws) and lift it up

Under the cover part there is 1 screw left (this a tiny one, not like the other 7 ..)

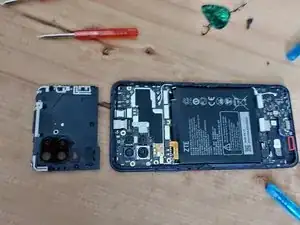

Then lift this part away as well ..

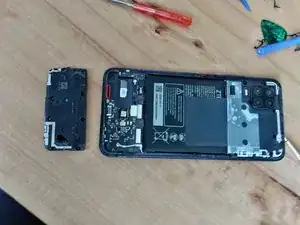

Unscrew all screws form the upper cover part near the camera ..

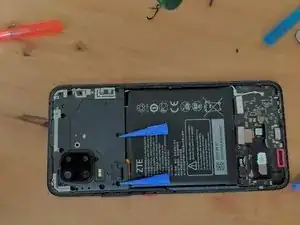

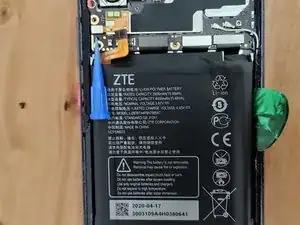

Remove the battery. This is the hardest part. I tried from right side as seen in the Picture .. There are 2 flat cables on zthis side (connecting the motherboard and the lower electronics, so this might not be the best direction to start (see photos later). Try using fan (i did'nt have one) ..

The blue plastic shows the tiny screw which you need to unscrew to remove the whole upper plastic thing .. I'm not sure you need to remove that part to change the display ..

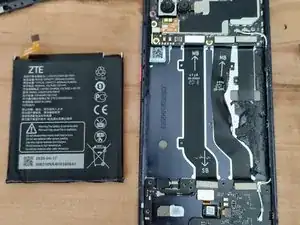

This is the accu removed .. You can see that I damaged one of the flat cables (seem to work though) .. You can see where most of the glue has been, so concentrate your work on this area. The right flat cable is the connector to the display (the other two connect Motherboard and sideboard).. unconnect it ..

You can remove the other flat cables too (but don't have to ..).

Remove the display form the front side .. Change the display, connect the flat cable as it has been .. Basically your are done now ..
