ZTE Blade E Volume Button Replacement

Geschrieben von: Sean Gardner
  • Kommentare: 2
ZTE Blade E Volume Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

  1. iVQLOjXA3tbtVAyr

    • Using your finger nails or a spudger, remove the back panel from the phone.

  2. uXHVxLpQxLpWNDxP
    uXHVxLpQxLpWNDxP
    wD65nrgv5DImLCVG

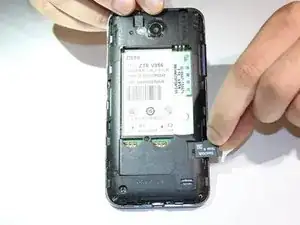

    • Using your fingernails or a spudger, remove the phones battery and microSD card.

  3. hYFEXJnTicefpDBL

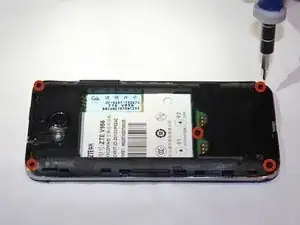

    • Remove the five 4mm Phillip's #00 screws, circled in red, from the back panel.

  4. axVnqHRkwTp4DdAp

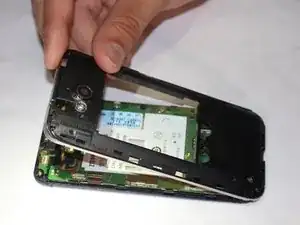

    • Separate the back panel from the motherboard.

  5. yZBVFpm1OCXTuJjX
    yZBVFpm1OCXTuJjX
    syoQod4XoMpXQF6q
    SxNxTwmu6pdOqYpI

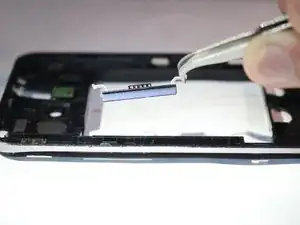

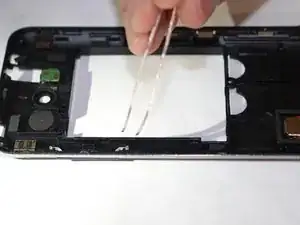

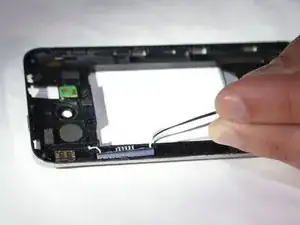

    • Using a pair of tweezers, remove the volume button by unlatching the two white bands holding it in place.

  6. dSCJ2ArdWurVCAhL
    dSCJ2ArdWurVCAhL
    yj4kGOCwGuLLxbRc

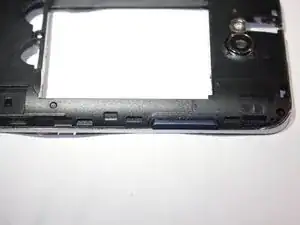

    • Either replace the volume button with a new one, or reinsert the old one using a pair of tweezers. It should look like the pictures when inserted properly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
