ZTE Blade X Max LCD Replacement

Geschrieben von: Celeste Holmes

Kommentare: 2

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

2 - 3 Stunden

Einleitung

If your ZTE Blade X Max LCD is damaged—has dark spots, cracks, unresponsive to touch—and you have already finished troubleshooting, then you may need to replace it.

This guide requires removing the back of the phone. You will have to use heating products to complete this guide. If you are using the iFixit iOpener, or a heating pad, be sure to follow the instructions for that particular product.

To remove the battery, you will have to heat it. Be sure not to overheat the battery. If you do, the battery will swell and be rendered useless.

Werkzeuge

Schritt 1

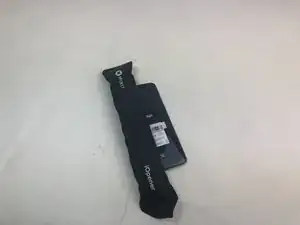

Use the iOpener or heating pad to heat around the edges of the phone to melt the adhesive.
It will take about ten minutes for the adhesive to be heated enough to remove the backing.
You will have to reheat the iOpener or heating pad a few times.

Schritt 2

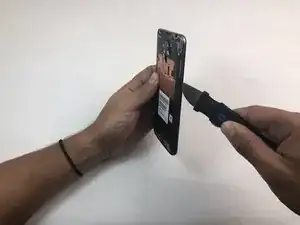

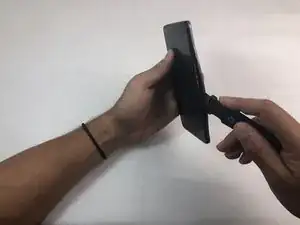

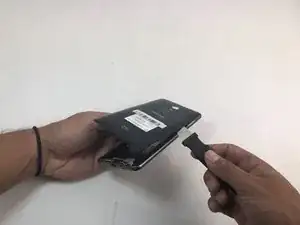

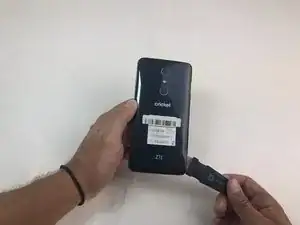

Slide the Jimmy along the under backing and lightly push the plastic up.
You will hear a snapping sound as you slide the Jimmy along the backing. This is from the closures releasing. There should be seven total closures on either side of the device, and three on the top and bottom.

Schritt 3

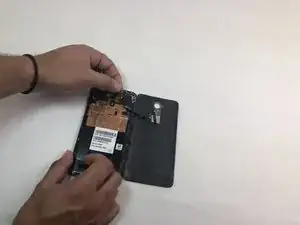

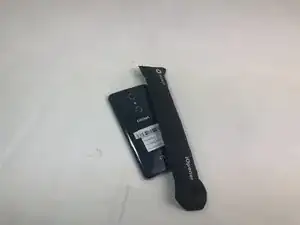

Carefully remove the backing from the phone once the closures are released.
If you do not open all of the closures on the backing do not attempt to pry it off.
Be careful when opening the back of the phone. The fingerprint scanner is connected by a thin film that will tear if pulled too roughly.

Schritt 4

Remove the opaque yellow sticker that indicates where the fingerprint scanner is connected to the back of the device.

Schritt 5

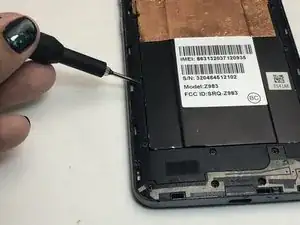

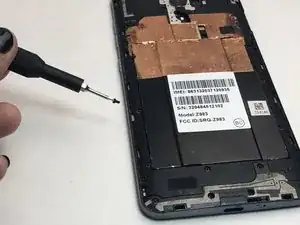

Remove the two 1mm Phillips #000 screws on the small panel that was underneath the sticker.
Use the tweezers to remove the panel.

Make the second sentence a second bullet.

Use the internal markup tools to indicate small components, like screws.

Sandy Branham - 27/10/19

Schritt 6

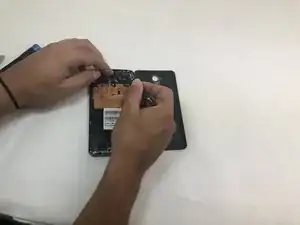

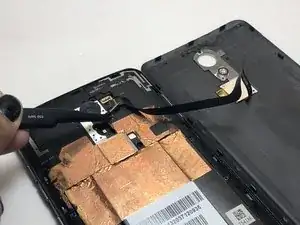

Use the tweezers to pull at the base of the film to remove the fingerprint scanner.

Schritt 7

Remove the SD and SIM cards by pulling out the card tray from the slot on the right side of the device.

Schritt 8

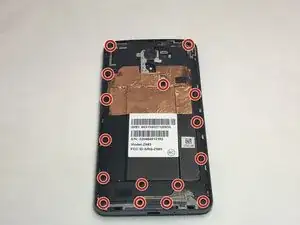

Remove the sixteen 1mm Phillips #000 screws from the midframe of the phone.

Schritt 9

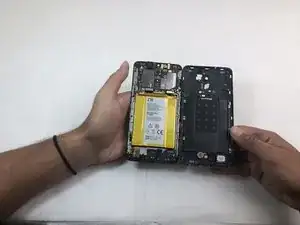

Use the Jimmy to remove the midframe from the device.

Schritt 10

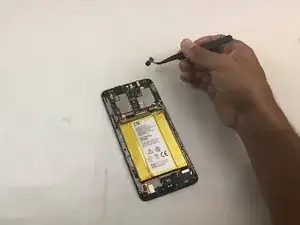

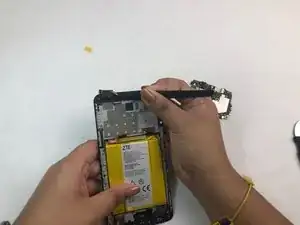

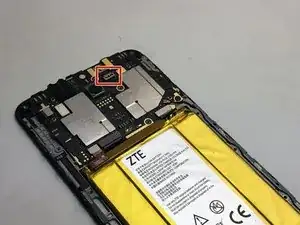

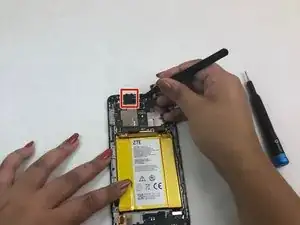

Once the motherboard is exposed, locate the front camera connection in the top right corner of the motherboard.
Use the tweezers to remove the front camera.

Schritt 11

Use the iOpener or heating pad to heat the phone. This will loosen the adhesive below the battery.
Do not apply the iOpener directly to the battery. Place the iOpener on the opposite side of the phone to indirectly melt the battery's adhesive.

Removing motherboard is not required to remove the battery!

Celeste Holmes - 29/10/19

Schritt 12

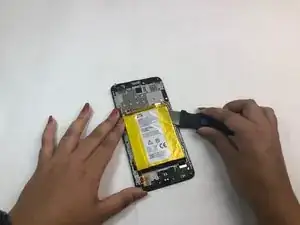

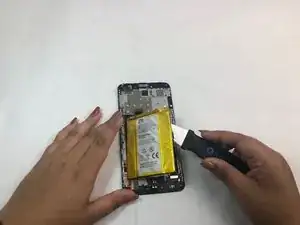

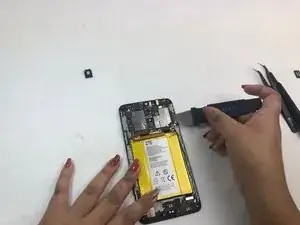

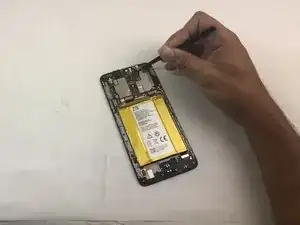

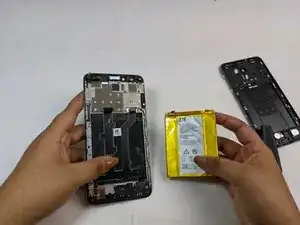

Use the spudger to pry the battery out of its slot after it has been thoroughly heated.
If the adhesive is still strong, reheat the opposite side of the phone until you can easily remove the battery.

Schritt 13

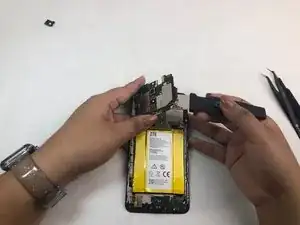

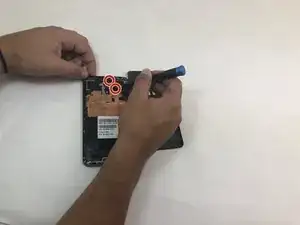

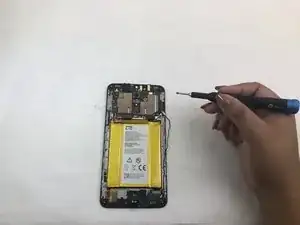

Remove the single 1mm Phillips #000 screw from the motherboard.

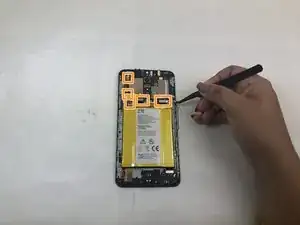

Detach the five flat connectors.

Schritt 14

Use tweezers to remove the protective foam surrounding the headphone jack at the top left of the device.
The foam is attached with a thin layer of adhesive which is easy to remove.
