The LED screen and touchscreen (digitizer) are one unit and make up the frame of the phone. You will essentially be removing all of the internal components of the phone and placing them in a new housing.

  1. NsyhOvvrNiYtFSjM
    NsyhOvvrNiYtFSjM
    DBTUmeuHnkVhem5R
    e1nOpxpPSGuuGKtF
    • Turn the device on it side with the buttons away from you.

    • Using the SIM Card Eject Tool, insert the narrow end into the ejection hole.

    • Press firmly into the hole until the SIM card tray pops out far enough to grab with your fingers.

  2. HEfoceQARTfYeeTf
    HEfoceQARTfYeeTf
    46iEGpa4ILNptDFS
    2SkgDQ4KlX62lP2M
    • Pull the tray out with your fingers .

    • Remove the SIM card.

    The tray is the part I require. Is there a part or place I can get to.

    Belinda Williams -

  3. uoZTl2C1ACOQXapk
    • Remove the one T2 screw from the side of the phone near where the SIM card tray was.

    This step is not at all necessary. Just skip it, it will make no difference.

    Michael Madden -

    It is smaller than T2, none of my 3 ifixit kits would fit it.

    Kelly Spongberg -

  4. ZM5GkWcfmMfoSjH5
    ZM5GkWcfmMfoSjH5
    n2kX4cGIGmuUGvTn
    • Insert a plastic opening tool into the space where the SIM card tray used to be.

    • Gently pry the back away form the phone frame until you hear and audible click of the back separating.

    To be clear, the silver “rim” does not separate from the black portion of the frame that extends around the back and sides and covers both logic boards; this is all one single piece.

    Be extra careful of the area near he power button, where the trim is thin and delicate and may break easily (especially if you’re trying to separate the silver from the black ;)

    Michael Madden -

  5. MoDRIvlNVgTBIEv4
    MoDRIvlNVgTBIEv4
    1iTCsCThsC3aSAfq
    • Insert the plastic opening tool into the space you created between the phone back and frame.

    • Slide the plastic opening tool along the outside of the phone, underneath the back, to separate the rest of the clips holding the back onto the frame.

  6. LccHeMHdPBQFGqhs
    LccHeMHdPBQFGqhs
    EFwJMQa63pW6BYCm
    • Rotate the back over to the side, being careful not to damage the fingerprint sensor ribbon cable.

    • Use a plastic opening tool to separate the fingerprint sensor from the back of the phone.

    • On reassembly, add a piece of simple scotch tape to hold the fingerprint sensor to the phone back.

    • Set the phone back aside.

    if you leave the finger print scanner you can remove the screws and snap the back plate back on then once the second plastic frame is removed you can then disconnect the other end of the cable

    ben person -

  7. xMGEOsrtiGVTkVBT
    • Remove the 6 silver 2.9mm screws from the back of the phone with a JIS #000 bit.

    • Remove the 11 black 3.5mm screws with the same JIS #000 bit.

  8. NLWnYE1gs4P1SI4F
    NLWnYE1gs4P1SI4F
    5MMjgNtRA2NSBF3Y
    • Turn the phone over, with the screen up.

    • Insert the opening tool between the screen and the silver trim that surrounds it.

    • Run the plastic opening tool around the circumference of the phone to separate the clips of that hold the trim to the frame.

  9. JFDPFIV4ZnBop6jM
    JFDPFIV4ZnBop6jM
    TkMK44HfOhBENVrG
    • Turn the phone back over, with the screen down.

    • Lift the trim piece off of the phone and set aside.

    There is metal mesh tape covering the area in the center, just above the battery, to the right of the fingerprint sensor cable connector. Remove this tape to expose a clip that holds the frame in place.

    Michael Madden -

  10. BVukrkXLPK1XI3Lr
    BVukrkXLPK1XI3Lr
    YUhXdb3gdePB4Csj
    • Using a plastic opening tool, separate the fingerprint ribbon connector from the motherboard.

    This step is not necessary if you’re careful not to rip the ribbon cable.

    Michael Madden -

  11. gZPMfh3wKJBU2BUi
    gZPMfh3wKJBU2BUi
    VIIBhvCcNibFeoZM

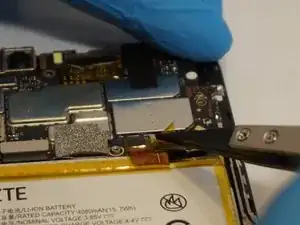

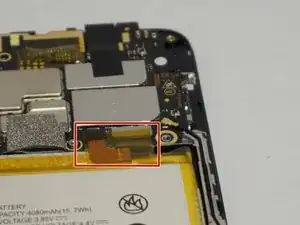

    • Use a pair of tweezers to carefully pull up on the tape securing the connector.

    • This will undo the connector as well.

  12. yHWhFDGbVnBOsi26
    yHWhFDGbVnBOsi26
    JcFYIOAwS4cLo1wh
    cp5LRQWpnLIqhThq

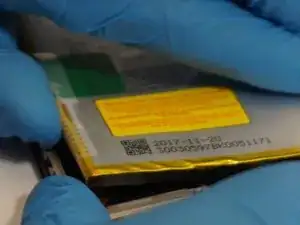

    • Be careful to not damage the battery during this step. If it appears you are using too much force to separate the battery from the frame, you may need to heat the phone to soften the adhesive holding the battery to the phone.

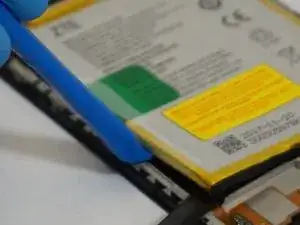

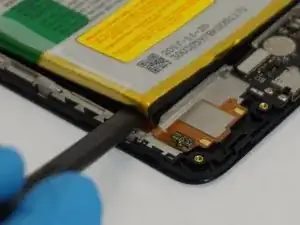

    • Starting at the bottom left corner of the battery, use the wide end of the spudger as a wedge to get underneath the battery.

    • Insert a plastic opening tool into the space created by the spudger and CAREFULLY begin to pry around the edge of the battery.

    • Once the battery is separated for enough from the phone, use your hands to fully remove the battery, using the wide end of the spudger to scrape off adhesive where necessary.

    It would be nice to know if you needed to heat it up how you are suppose to do that. There are no instructions for that.

    supermankc1469 -

  13. Ga1lmXXtDlaPdUVv
    Ga1lmXXtDlaPdUVv
    TaEgeJ1VDeAOUiWX
    • Using a set of tweezers, pull off the small piece of tape on top of the ribbon cable connector on the left side of the motherboard.

  14. wGHyBbjkC5JFAUmI
    wGHyBbjkC5JFAUmI
    o12N6tTEFdSnWVSs
    • Use a plastic opening tool or spudger to scrape the glue away from the ribbon cable.

  15. SyPxuwt5FQWPPPTy
    SyPxuwt5FQWPPPTy
    JGv2uR2EyjQuI3Pk
    HVamJt323NmZ1SGI
    • Using a plastic opening tool or spudger, open the zip connection by prying up on the right (black) side of the connector.

    • Using the tweezers, carefully pull the the ribbon cable out of the connector.

  16. pXsGClWfa1AQT4qt
    pXsGClWfa1AQT4qt
    BwyJTmIaTuDLM2Yh
    • The button ribbon cable is very fragile, especially near the down volume button. If you intend on reinstalling this piece later, be careful not to rip it.

    • Using a plastic opening tool or tweezers, pry the edge of the button strip away from the phone.

    • Once all of the buttons are free, the whole assembly should simply lift out.

    • Glue may be required to hold the new buttons to the phone.

  17. k1IGY4y11qLUJEkZ
    k1IGY4y11qLUJEkZ
    3EqUWqTamqZkRXqS

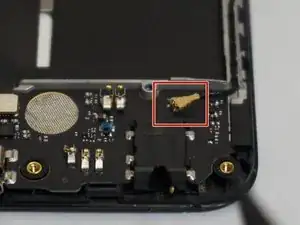

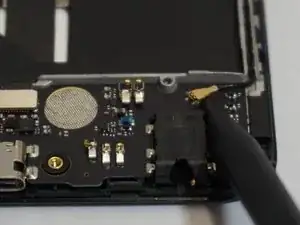

    • Use a spudger to pry up the the antenna connector on the top right of the charging port card.

  18. PE5YxyVXtG6KZRdk
    • Use a plastic opening tool to pry up and remove the primary connector for the card, located on the top left of the card.

  19. DCqMAGMLIIfEyMN2
    DCqMAGMLIIfEyMN2
    TeFalDhkomNHSd14
    m4vSjmTjhCYlNANd

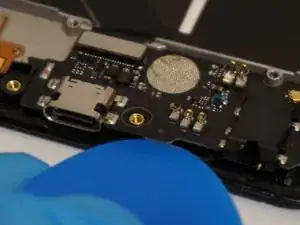

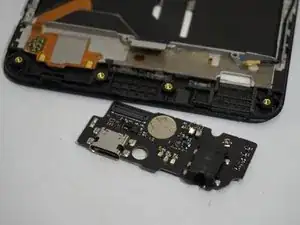

    • Use a plastic opening tool, spudger, or opening pick to separate the bottom edge of the card away from the phone.

    • Lift the bottom edge of the card high enough that you can grab it with your fingers, and simply remove it from the phone.

    Corners may have adhesive. Force may be required to pry the board up. Don’t be scared.

    Michael Madden -

    Is the microphone located on the board?

    pardoskinov -

  20. nF46PHVGxPjvJf6T
    nF46PHVGxPjvJf6T
    UResrwHCprEWAljZ
    mPHvZh3WUD2ZILpO

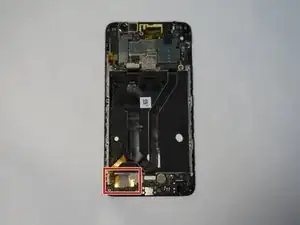

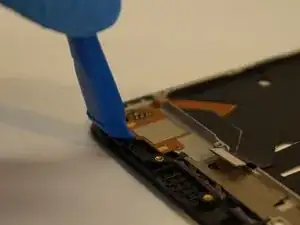

    • Use a plastic opening tool to lift the lower connection cable, which is held on by adhesive, off of the phone frame.

  21. PygjTQhuqSuCcmmy
    PygjTQhuqSuCcmmy
    iUxvxOqYotWGTJh2

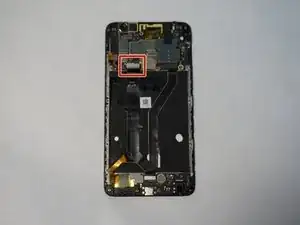

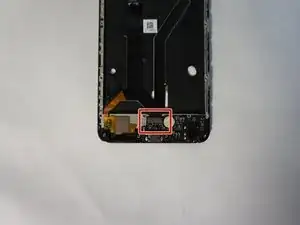

    • Use the plastic opening tool to separate the connector ribbon from the bottom center of the phone.

  22. PUiEFy2cMQM5MVNE
    PUiEFy2cMQM5MVNE
    qYslxDTgWQpNrcPy

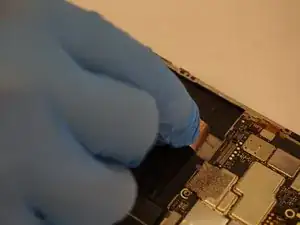

    • Use a plastic opening tool to separate the first motherboard connector from the bottom left of the motherboard.

  23. ujoxW2KwHD4iuWbp
    ujoxW2KwHD4iuWbp
    IowyPafp4j6WTTJY
    kbPN1W5uLxbjgRBU

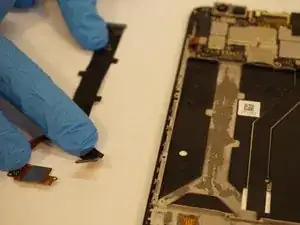

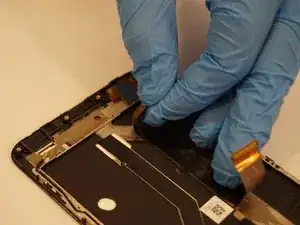

    • Starting from the connector you just removed, carefully peel the ribbon cable away from the phone.

    • You may need to use an adhesive to reattach this cable during reassembly.

    • Set the ribbon cable aside.

  24. 5LIjUHj2mKdLjbqJ
    5LIjUHj2mKdLjbqJ
    SQRGeB4H13UJfq1Q

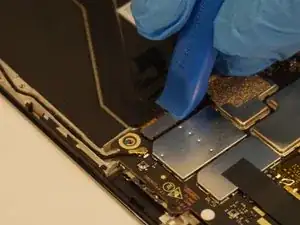

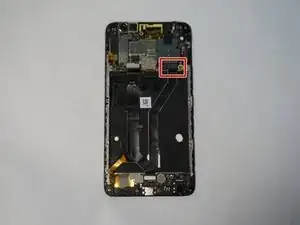

    • Use a plastic opening tool to disconnect the second motherboard connector from the bottom right of the motherboard.

  25. GGuQLHK23QR4Zjtv
    GGuQLHK23QR4Zjtv
    PRrmQf4VZ3omDc6r
    q14q3UdfDlXVY13p

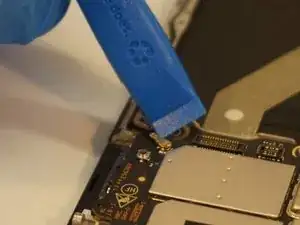

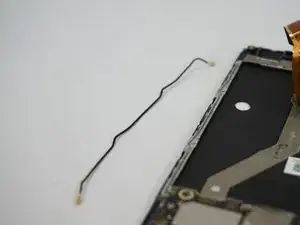

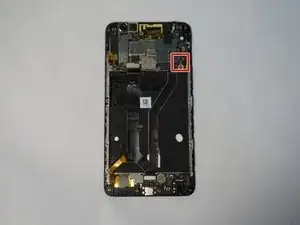

    • Use a plastic opening tool to disconnect the upper antenna connector.

    • Remove the antenna from the phone and set aside.

  26. ALhqRVgRw1EK31QB
    ALhqRVgRw1EK31QB
    BgoCFBPhAMdlxcwR

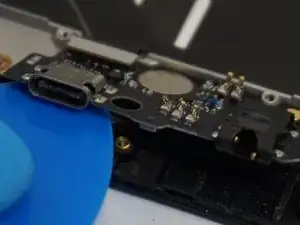

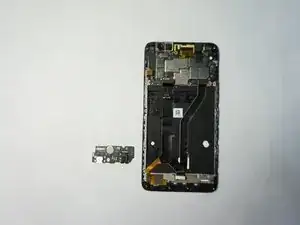

    • Use the plastic opening tool to remove the charging port card of the phone.

  27. LaAAooCQFew1VWql
    LaAAooCQFew1VWql
    xJXqFImu3WWfbEIV

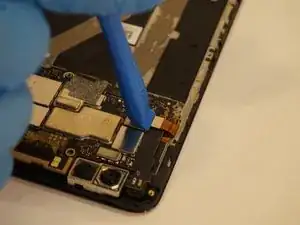

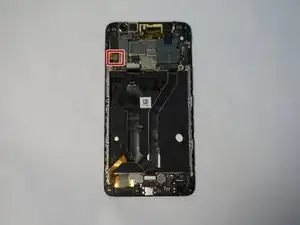

    • Use a plastic opening tool to disconnect the digitizer ribbon connector located on the opposite side of the antenna connection and near the side button connector.

  28. NEI44NbYeIsSyoW1
    NEI44NbYeIsSyoW1
    V2YpwqinCGwNnFBV

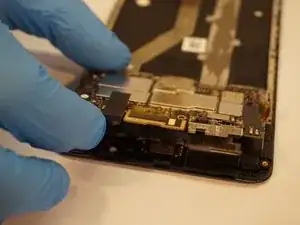

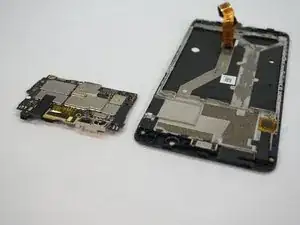

    • Carefully lift the motherboard out of the frame.

  29. VdmaSrnkokbyMJBH

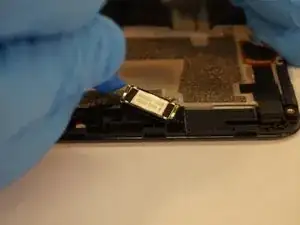

    • Use a plastic opening tool or spudger to remove the earpiece from the frame, located near the top of the phone.

    • All of the components you will now have removed will go into a different frame which contains the new screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
