ZTE Grand X Max Plus Motherboard Replacement

Geschrieben von: Jordano Baer

Kommentare: 3

ZTE Grand X Max Plus Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 Minuten

Einleitung

Follow the steps on this guide to replace the motherboard of the ZTE Grand X Max Plus.

To remove the motherboard, you will need to open the phone and remove the battery first. These steps are included in this guide.

Werkzeuge

Schritt 1

Make sure you turn off your phone before starting.
Heat the phone using a heating pad, heat gun, or hair dryer to loosen the glue. You just need to heat the back of the phone.
You can also use a hair dryer or a heating gun for this step.

What if you have no heating element or source

mlp100686 - 23/10/18

Schritt 2

After the phone is heated, use the blue plastic opening tool on both sides of the phone.
Don't apply too much pressure because the cover can crack easily.
To avoid that your cover cracks, you can add tape to back cover.
You can use a suction cup to help remove the battery.

Schritt 3

Carefully remove the cover from the phone.

Pics are a little dark. See if you can play with the white balance to correct this.

Patty Remmell - 01/11/17

Schritt 4

Use a plastic opening tool to pry the battery off.
The battery will be held down securely by glue, so it'll take quite a bit of sliding underneath to separate it from the compartment.

Schritt 5

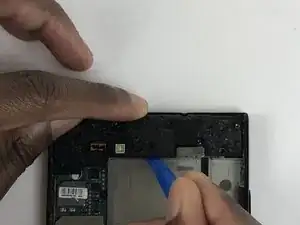

Pull up the piece that is connected to the motherboard. You can pull it using your nails.

Schritt 7

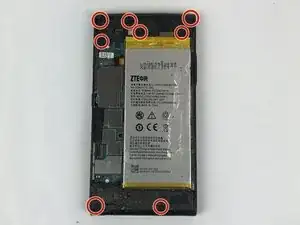

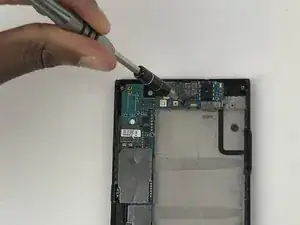

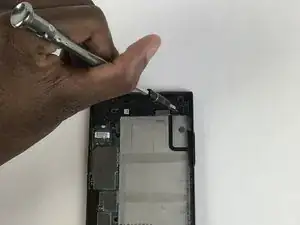

Use a screwdriver with a JIS #000 head to remove the (8) eight screws.

Schritt 8

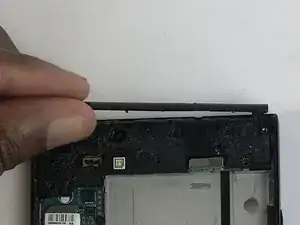

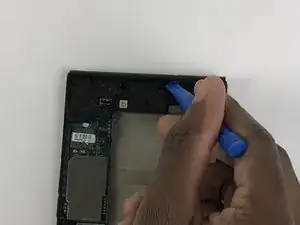

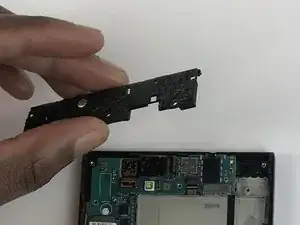

Use a plastic opening tool to remove the plastic piece in the upper part of the phone.

Schritt 9

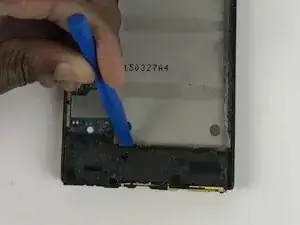

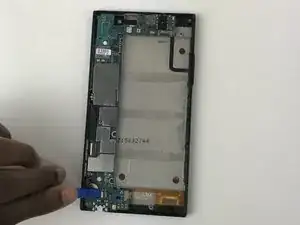

Use the same tool to pry off the plastic that is covering the motherboard.

Schritt 10

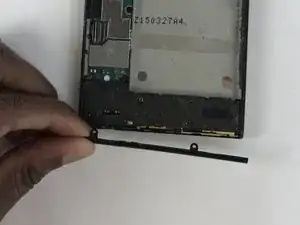

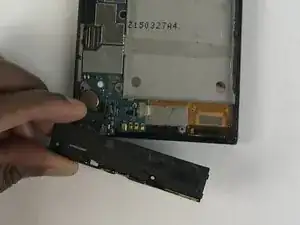

Repeat the same steps for the bottom part.

Schritt 11

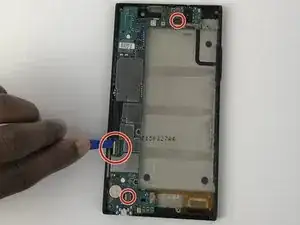

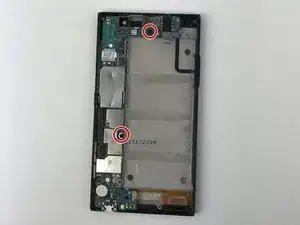

With the same screwdriver, remove the two screws from the motherboard.

Schritt 12

There are three clips holding the motherboard.

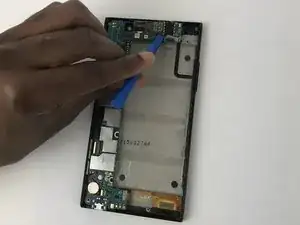

Unclip the motherboard from the phone with the plastic opening tool.

Schritt 13

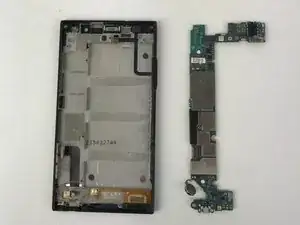

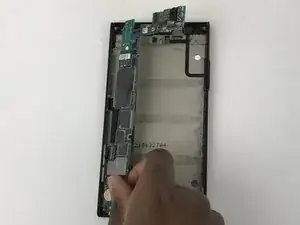

Remove the motherboard from the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
