ZTE Jasper LTE Screen Replacement

Geschrieben von: Anthony Sou

Kommentare: 0

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

This guide shows you have to replace the LCD screen for the ZTE Jasper LTE phone. You might need to replace the screen if the screen is unresponsive to touch, the screen is cracked, or you have a dead screen.

Werkzeuge

Schritt 1

Insert the spudger into the bottom left corner of the phone.
Use the spudger to loosen the back cover.

Schritt 2

Insert the black spudger near the bottom left of the battery. There will be an opening to easily to remove the battery.
Continuing to use tool, prop up the battery and remove it.

Schritt 3

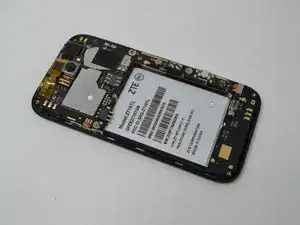

Remove nine 0.8mm Phillips #00 screws.

Schritt 4

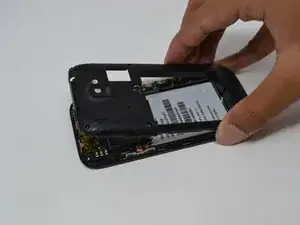

Remove the back cover by pulling upwards.
Removing the back cover may take a bit of force.

Schritt 5

Disconnect the gold component attached to the camera by pulling upwards using the tweezers.
Remove the camera using the tweezers by gripping tightly around the camera and pulling upwards.
Camera is attached to the motherboard with adhesive. As such, you may need to use light force to remove the camera.

Schritt 6

Disconnect all of these parts from the motherboard.

Schritt 7

Remove the 0.8mm Phillips #00 screw from the bottom right.
Disconnect the gold pin by pulling upwards with the tweezers.

Schritt 8

Lightly disconnect the power button, volume button and the chip from the motherboard.
Be careful not to tear the volume and power button off the motherboard.
