ZTE Lever Loud Speaker Replacement

Remove the SD card and the Sim card from the device.

Use an iFixit opening tool to separate the back from the device.

Remove the two 1.6mm Phillips #0 screws from the battery plug cover.

Remove the cover.

Disconnect the battery cable from the motherboard with a plastic opening tool.

Use your hands, or a plastic opening tool, to pry the battery from the phone.

Remove the three 1.6mm Phillips #0 screws from the plastic cover on the motherboard.

Remove the top plastic motherboard cover using a plastic opening tool.

Use a plastic opening tool to flip up the retaining flap on the volume ribbon cable ZIF socket.

Peel up the volume button cable from the phone with hands, or plastic opening tool.

Disconnect the power button from the motherboard with a plastic opening tool.

Peel the power button cable up from the phone with you hands, or a plastic opening tool.

Remove the seven 1.6mm Phillips #0 screws from the plastic cover on the bottom of the motherboard.

Remove the bottom plastic motherboard cover with your fingers

Disconnect the camera from the motherboard with a plastic opening tool.

Disconnect the display cable from the motherboard with a plastic opening tool.

Disconnect the camera from the motherboard with a plastic opening tool.

Disconnect the rear speaker cable from the motherboard with a plastic opening tool.

Pry the motherboard cell battery from its position on the case of the phone

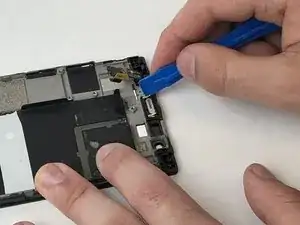

Using the plastic opening tool, pry the motherboard up, sliding along the edge to separate the pieces.

Remove the motherboard with your fingers.

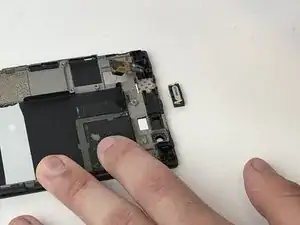

Using the plastic opening tool, remove the speaker.
