ZTE Prestige 2 Back Camera Replacement

Geschrieben von: Maria Stock
  • Kommentare: 1
ZTE Prestige 2 Back Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

7 Minuten

Einleitung

This guide will help you replace the back camera in your ZTE Prestige 2. Before you start, check out our troubleshooting page that will help you decipher any basic problems before taking your device apart. Some reasons you may need to conduct this replacement is because the back camera may be scratched and/or cracked, therefore, making pictures blurry or spotting. Before beginning, make sure to power off your device completely and disconnect from any external power source.

  1. cnHRjTWR3YIYHBgD
    cnHRjTWR3YIYHBgD
    qYTCP153AZXGSQrg
    QNPrhUNJnw5FbcRd

    • Use the iFixit opening tool to open up the device by wedging the tool under the back case and popping it open.

  2. NKffKVmobS1M43tX
    NKffKVmobS1M43tX
    dMUmLB31nIOCJYCh

    • Remove the battery.

  3. 4boeHyRuRu6sFQeq
    4boeHyRuRu6sFQeq
    BrsAoSGaVXQ4XoOc
    mVRavTXITGbJR242

    • Use a Phillips #00 screwdriver to unscrew all 12 of the 3 mm Phillips screws located along the edges of the device’s back panel, as well as the blue 3mm Phillips screw labeled “ZTE” located towards the top right.

  4. HPJ6klGJMvGIg2PK
    HPJ6klGJMvGIg2PK
    pTYwT1t4yEfeUUIw
    rffVeY3NHoXQWrnR

    • Then use the iFixit opening tool and wedge it under the grey back panel and pop it off.

    • There will be a lot of resistance, apply adequate pressure.

  5. cUuf6FPHCJQtXoJm
    cUuf6FPHCJQtXoJm
    pL4kDixT66IqyteV
    H4yWSjIFue2yyJbR

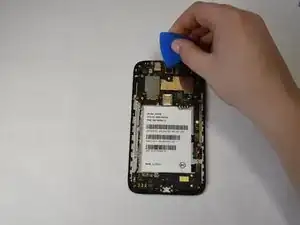

    • Use the iFixit opening pick and wedge it under the press fit connector beside the camera located at the top center of the device to pop it off.

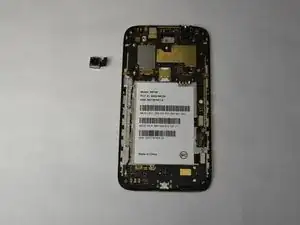

    • Remove the camera.

    • The camera cable near the press fit connector is delicate, ripping it will cause permanent damage.

    • The base of the camera may be glued down which may lead to accidental ripping during removal. Use the flat end of a metal spudger to pry it up if necessary.

    I was able to easily pry the thin metal base of the camera loose using a metal spudger with rectangular ends.

    The thin metal base on the bottom of the camera may be glued down. So, if you pull too hard, you might end up tearing the camera up like I did.

    Toolusah3 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
