ZTE Prestige 2 Front-Facing Camera Replacement

Geschrieben von: Maria Stock
  • Kommentare: 0
ZTE Prestige 2 Front-Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

30 Minuten

Einleitung

This guide will help you replace the front-facing camera in your ZTE Prestige 2. Before you start, check out our troubleshooting page that will help you decipher any basic problems before taking your device apart. Some reasons you may need to conduct this replacement is because the front camera may be scratched and/or cracked, therefore, making pictures blurry or spotting. Before beginning, make sure to power off your device completely and disconnect from any external power source.

  1. cnHRjTWR3YIYHBgD
    cnHRjTWR3YIYHBgD
    qYTCP153AZXGSQrg
    QNPrhUNJnw5FbcRd

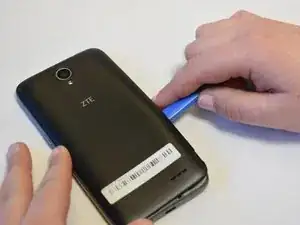

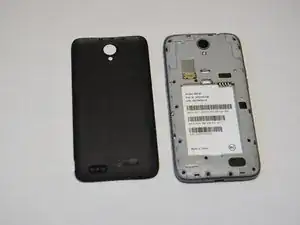

    • Use the iFixit opening tool to open up the device by wedging the tool under the back case and popping it open.

  2. NKffKVmobS1M43tX
    NKffKVmobS1M43tX
    dMUmLB31nIOCJYCh

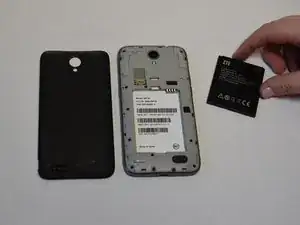

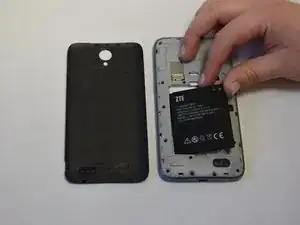

    • Remove the battery.

  3. 4boeHyRuRu6sFQeq
    4boeHyRuRu6sFQeq
    BrsAoSGaVXQ4XoOc
    mVRavTXITGbJR242

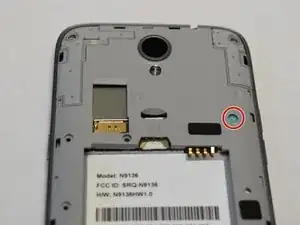

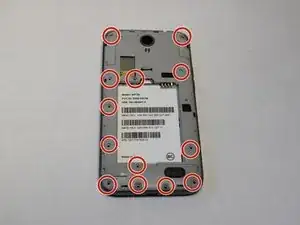

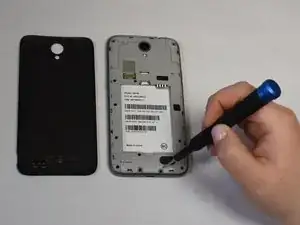

    • Use a Phillips #00 screwdriver to unscrew all 12 of the 3 mm Phillips screws located along the edges of the device’s back panel, as well as the blue 3mm Phillips screw labeled “ZTE” located towards the top right.

  4. HPJ6klGJMvGIg2PK
    HPJ6klGJMvGIg2PK
    pTYwT1t4yEfeUUIw
    rffVeY3NHoXQWrnR

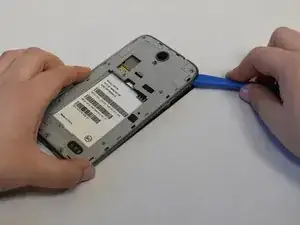

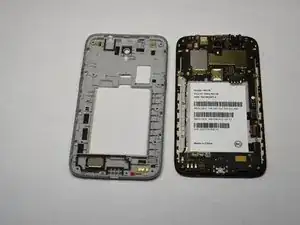

    • Then use the iFixit opening tool and wedge it under the grey back panel and pop it off.

    • There will be a lot of resistance, apply adequate pressure.

  5. VauZQkVymPy3NftD
    VauZQkVymPy3NftD
    oHJOZCTmxOuqZ4sS

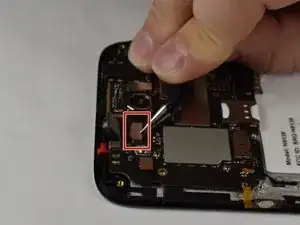

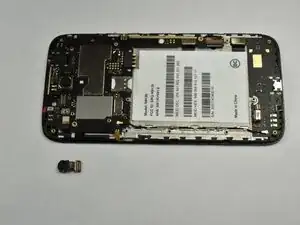

    • Use the curved tweezers to lift up the press fit camera connector.

    • The front facing camera is located directly to the left of the rear facing camera.

    • Lift out the front facing camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
