ZTE Speed Headphone Jack Replacement

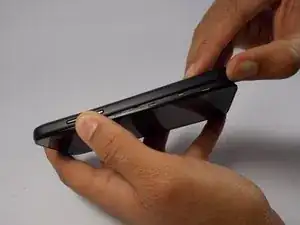

Pull off back cover at bottom right corner.

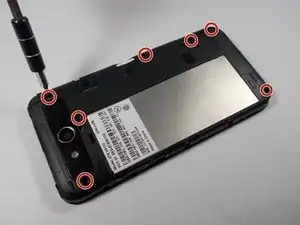

Remove the seven 3.175mm Phillips head screws from the inner back located at the top, upper-middle-right, middle-right, lower-right, and bottom.

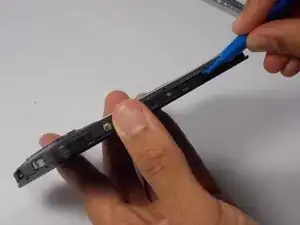

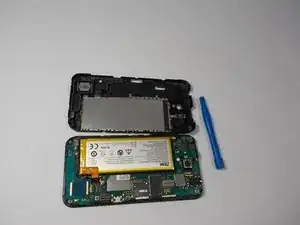

With the plastic opening tool the spudger, gently pry off the inner back.

Be careful not to pry it off too hard, as it is just a plastic covering.

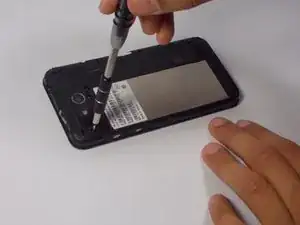

Remove the one 2.381mm Phillips head screw from the motherboard located in the upper-middle part of the phone next to the bottom left corner of the back camera.

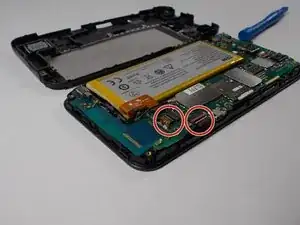

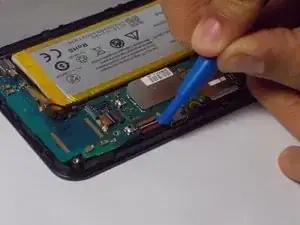

Using the spudger, gently pry up all ZIF connectors

ZIF connectors have a tiny tab that needs to be flipped up in order to safely remove the cable

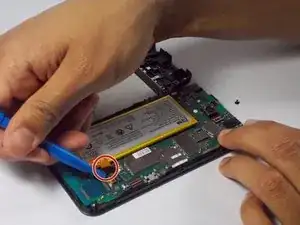

Using same spudger, gently pry up the orange flat top connector

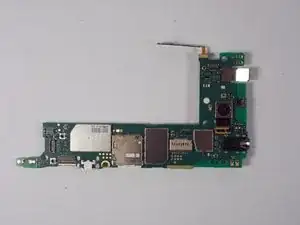

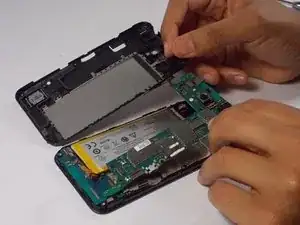

Carefully take off motherboard.

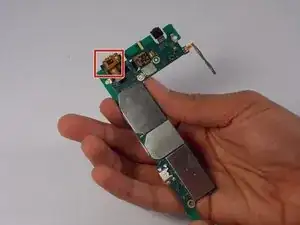

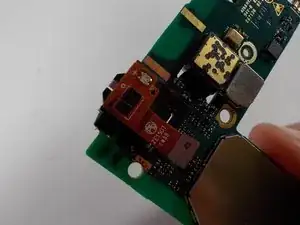

Flip over motherboard to locate headphone jack circuit.
