ZTE Tempo X Volume Buttons Replacement

Geschrieben von: Conager Robb
  • Kommentare: 0
ZTE Tempo X Volume Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

9 - 10 Minuten

Einleitung

Use this guide to replace the volume buttons on your ZTE Tempo X.

  1. axAZNuRYBuQQacY3
    axAZNuRYBuQQacY3
    kNft1ICjgIa1sLmv

    • Remove back cover using the divot provided.

  2. jZcNoRLLphN3MTe6
    jZcNoRLLphN3MTe6
    5MODTTo4ejEXAdK5

    • Find the divot near the bottom of the battery and remove the battery from the device.

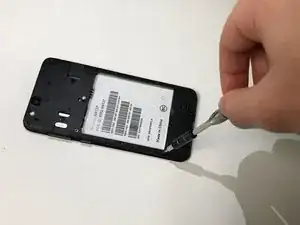

  3. 3SYpQnOdiN5vpEn5
    3SYpQnOdiN5vpEn5
    mhiJJRZlrgf1UyXT
    DhlB4xgwJHg4IQ5X

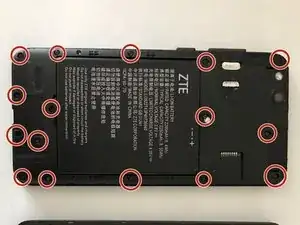

    • Using a Phillips #00 screwdriver, remove the sixteen 3 mm screws holding the back panel in place.

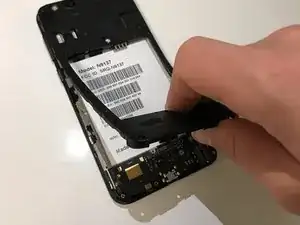

    • Remove the back panel.

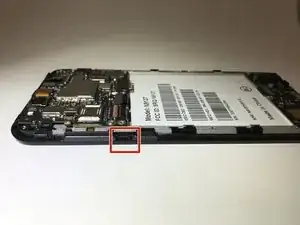

  4. 2CySA1ChBU2aLSqs
    2CySA1ChBU2aLSqs
    bWrJqOPHqYfPLvvZ
    oEkUyNA2pVdhXQbO

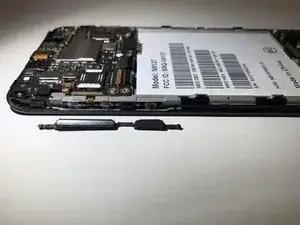

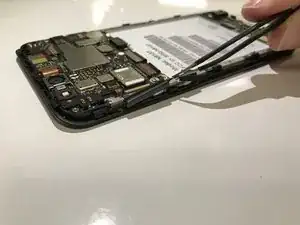

    • To remove the volume keys, pull them away from the phone. The keys will slide out from their set position.

    • Be aware of the edges of the phone when removing the keys.

Abschluss

To reassemble your device, follow these instructions in reverse order.
