ZTE ZMax Pro (Z981) Demontage

Geschrieben von: Brennan Murphy
  • Kommentare: 82
ZTE ZMax Pro (Z981) Demontage

Schwierigkeitsgrad

Mittel

Schritte

14

Zeitaufwand

30 - 45 Minuten

Einleitung

Das ist eine allgemeine Demontage, sie dient hauptsächlich dazu, das LCD/ den Bildschirm zu wechseln. Das ist meine erste Anleitung auf iFixit, also bitte seid nett zu mir.:) Wenn du nach einem LCD suchst, den haben wir in unserem Shop zum Verkauf, mit einer schnellen Lieferung aus Kalifornien.

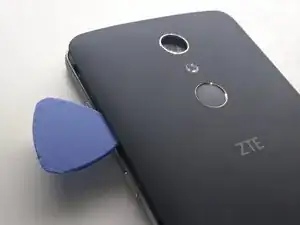

  1. CdJ1ed6G4TDwyuAw
    CdJ1ed6G4TDwyuAw
    HsSgRSnHJ6hLvJbX

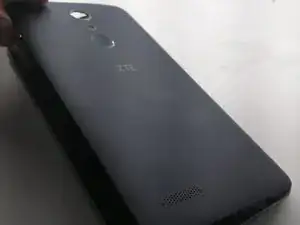

    ktMtRGYEo6mRx1ji

    • Fange an einer Ecke der Rückabdeckung mit dem Hebeln an.

    • Fahre seitlich nach unten fort.

    • Hebe die Rückabdeckung ab.

    I lost my sim card on the inside of the phone how do I get it out

    peggy shawback -

    You should mention that the best way to separate the panel it's starting with removing the SIM card slot.

    Marc Ferguson -

  2. qVAkPcJT4Z2lUl5N
    qVAkPcJT4Z2lUl5N
    wPWGrbHUWcKidKcP

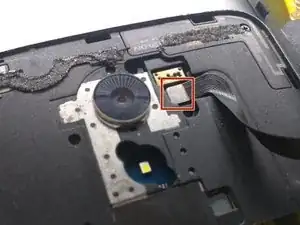

    DJlQCb3cASoBqvIZ

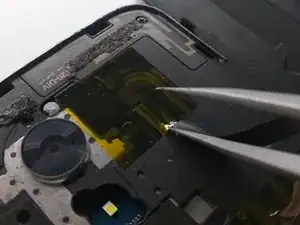

    • Entferne das Kapton Klebeband über der Abdeckung des Fingerabdruckscanners.

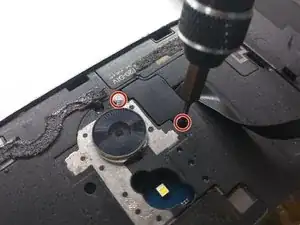

    • Schraube die beiden Schrauben auf der Abdeckung des Flexkabels des Fingerabdruckscanners ab.

    • Beim Lösen der oberen Schraube erlischt die Garantie!

    • Trenne das Flexkabel des Fingerabdrucksensors ab und lege die Rückabdeckung zur Seite.

    How do I pull up the scanner from the back of the casing

    peggy shawback -

    Between step s 2 and 3 you have to remove 15 Phillips screws on the mid-frame assembly before the LCD and digitizer will come out.

    Jason McDonald - March 22 ( please follow his directions as seen below)

    Brotherandsister Perkins -

    What if you tear the strip will phone work without it

    tinalight11 -

    If you break flex cable will phone work without it

    tinalight11 -

    If you break the fingerprint sensor cable there’s a chance that the phone will continue working, but the fingerprint sensor will not work.

    Adam O'Camb -

    • Entferne die 15 Kreuzschlitzschrauben #00, die den Mittelrahmen am Handy befestigen.

    This is easier if you disconnect the fingerprint sensor first. Switch steps 2 and 3.

    Paul McManigal -

    in addition to the above, you will have to remove the tape over one of the 15 screws.

    Shawn Bailey -

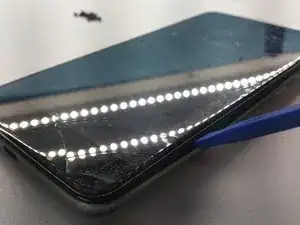

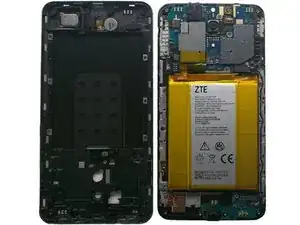

  4. IyjmflVCkLXDQSnx
    IyjmflVCkLXDQSnx
    1JbnBIcSM4PbTCNT
    5kPI1QpaFREWDrij

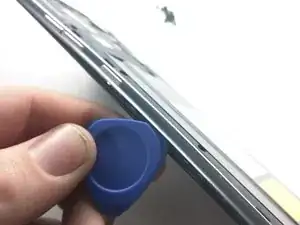

    • Setze vorsichtig ein Hebelwerkzeug auf der Seite des Telefons zwischen LCD und Rahmen ein.

    • Fahre mit dem Werkzeug weiter am Telefon entlang und um die Ecken herum, bis Rahmen und LCD-Einheit getrennt sind.

    Right and how often do you change the battery

    Mark Harris -

    Do you have to do this step (separate frame from LCD) if you're just changing battery? Can I remove battery after the previous step?

    jerryc1010 -

  5. Z3lWEjyBXkDkChJ2
    Z3lWEjyBXkDkChJ2
    GGbPD3OkDukASkRY
    jHQeVEXRFQD4vNAF

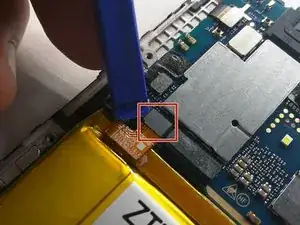

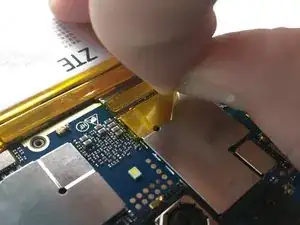

    • Entferne das Kaptonband über dem Akkustecker

    • Trenne den Akku ab.

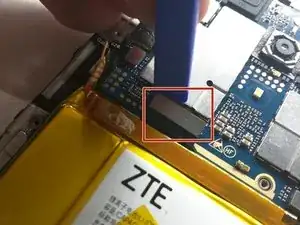

    • Trenne dieses andere Flexkabel über dem Motherboard ab, wo immer es auch hinführen mag.

    The wide connector next to the battery connector is the extension cable to the replacable charge port assembly at the bottom.

    Nate Evans -

    Lol...nice...the expertise is obvious

    Aerial L -

    DO NOT REMOVE BATTERY.

    simply disconnect…

    Carlos Dorado -

    If you want to replace the digitizer, then you need to remove the battery to get the ribbon cable out.

    Paul McManigal -

  6. 6WapdH5iQNoTQ426
    6WapdH5iQNoTQ426
    AOAAvMDUcWK3bCYx
    kPjkd3pKiFTUIha1

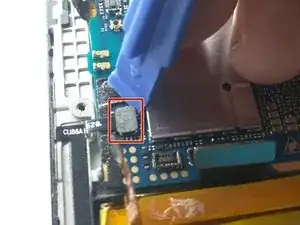

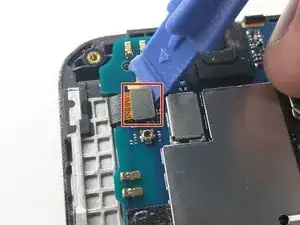

    • Trenne dieses Kabel ab.

    • Dann dieses hier.

    • Und dann auch noch das Kamerakabel.

    The camera may pop out just place this to the side

    Aerial L -

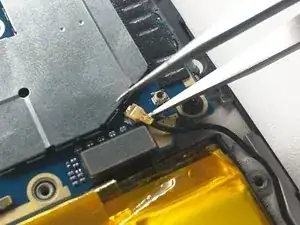

  7. cdYVKojdDbUQxNBo
    cdYVKojdDbUQxNBo
    c1GwTVBWNrtwIJ3W

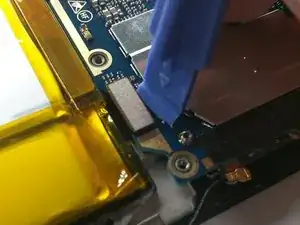

    slOJyQcKciYUGWuU

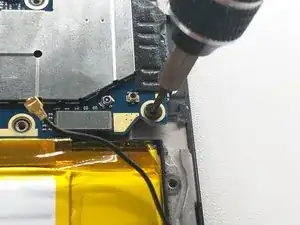

    • Trenne das Antennenkabel ab.

    • Löse die Schraube des Motherboards.

    • Trenne das LCD Flexkabel ab.

    will it power on if the antenna is bad?

    Anthony Goss -

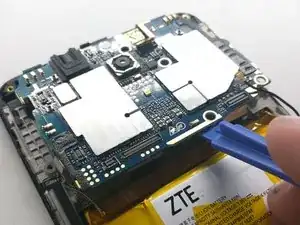

  8. HN1EKgF1gYyuP4Qc
    HN1EKgF1gYyuP4Qc

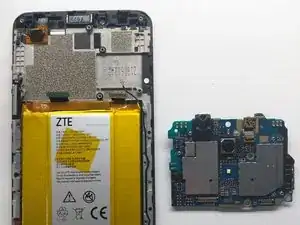

    XprmeTGVrn2iYrEi

    • Hebe das Mainboard heraus.

    • Das ist recht leicht.

    • Und jetzt kommt der spaßige Teil ...

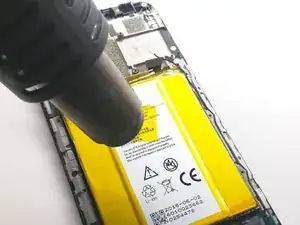

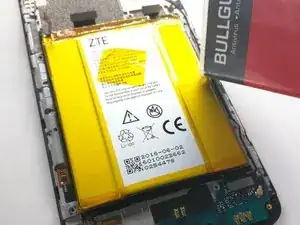

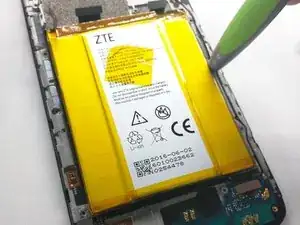

  9. q2YpOIRBofw6vht4
    q2YpOIRBofw6vht4
    4WtKSWmpxLDJbHJt
    4DFjVhjxHGMs6wRF

    • Erwärme den Akku.

    • Das Erhitzen eines Akkus ist gefährlich und kann dazu führen, dass der Akku explodiert oder sich aufbläht. Sei also vorsichtig.

    • Finde ein geeignetes Werkzeug, um den Akku herauszuheben.

    • Achte darauf, dass das Werkzeug deiner Wahl hitzebeständig ist.

    The plastic cards ( Kunststoffkarten ) would be the perfect tool to assist you in prying out the battery.

    Nate Evans -

    I find it easier to use the heat on the glass/LCD side rather than directly on the battery itself. Less likely to have a problem with the battery exploding as the author mentioned.

    Shawn Bailey -

    I think it would be wise to say what temperature to heat the battery.

    Ricardo Loubens Antoine -

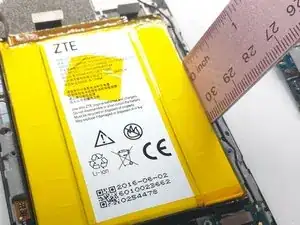

  10. MEqZLyNUtt431asE
    MEqZLyNUtt431asE
    ZlKvvL2OIjDubQtp
    ZXOPQeFUdybLoWRr

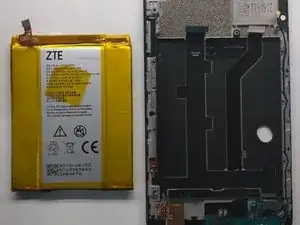

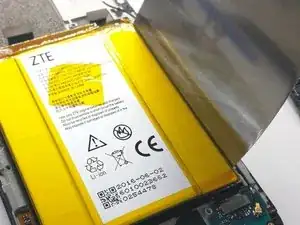

    • Wenn du das geeignete Werkzeug gefunden hast, dann hebele damit an jeder Seite des Akkus hoch.

    • Wenn du ein Metalllineal benutzt, dann muss es eines in Pink sein. Andere Farben, wie Blau oder Grün sind für diesen Job einfach nicht geeignet.

    • Achte darauf, dass du keine der vorher gelösten Flexkabel unter dem Akku beschädigst.

    • Biege zum Schluss den Akku wieder flach, so dass er in deinen Fotos keinen schlechten Eindruck macht.

    How often do you change the battery

    Mark Harris -

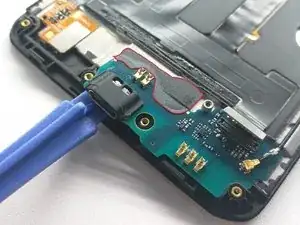

  11. NOc2jKVr2dZHkG6A
    NOc2jKVr2dZHkG6A
    yJOdsTwUd3kXnvOG

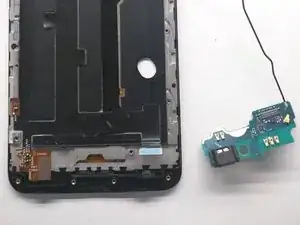

    LJKlZSImV1fIr2GU

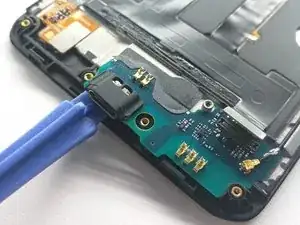

    • Löse den Klebestreifen ab, welcher die Ladeplatine befestigt. (rot markiert)

    • Heble die Platine mit der Ladebuchse/Antenne hoch.

    • Entferne sie vom Rahmen und lege sie zur Seite.

    Don't forget to disconnect the connector first

    Aerial L -

    AND there is black adhesive tape attached at the top of the board and some under...some light heat may help with the adhesive under so as to not bend the board

    Aerial L -

    what are u useing to take off the back of the phone

    Jaylon Mccoy -

  12. kMMTW2fYnH2UHcnf
    kMMTW2fYnH2UHcnf

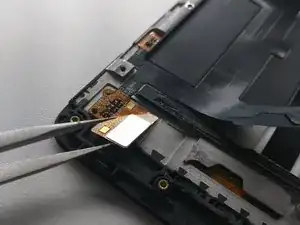

    hfQJa4POIamSkj1U
    xjZoPxRY2EFv3XdP

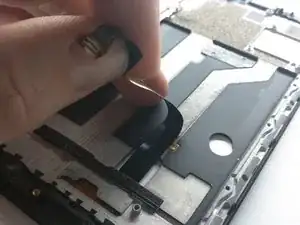

    • Hebe das Flexkabel des Touchscreens vom Rahmen weg.

    • Löse dieses Flexkabel mit einer Pinzette von den Klebestellen am Rahmen ab.

    • Löse das Flexkabel zum LCD ab.

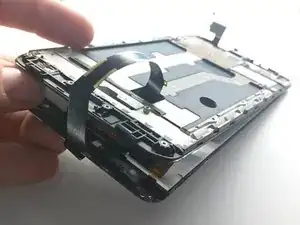

  13. ZsAMAq2pJsXDoGT1
    ZsAMAq2pJsXDoGT1
    xs5gLFqC2TwRxd3R
    BKQKWBHCCOJFXgAg

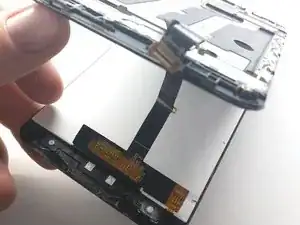

    • Schiebe etwas zwischen Bildschirm und Rahmen.

    • Sei beim Einschieben sehr vorsichtig.

    • Löse die LCD Einheit vom Rahmen, beginne dabei unten.

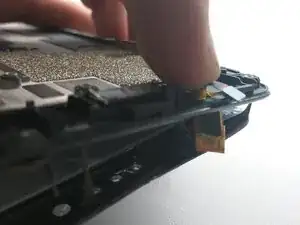

  14. o4awUHjbiRBZibws
    o4awUHjbiRBZibws
    IAFtIRwYZSbCVjoa
    ThRrL23MDsxLWEqM

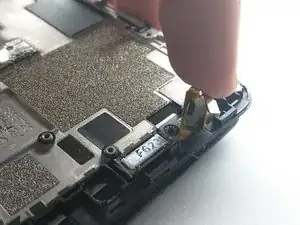

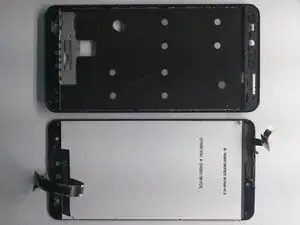

    • Schiebe das Kabel des Touchscreens durch den Rahmen.

    • Entferne die LCD Einheit vom Rahmen.

    Is the glass glued to the LCD?

    peter bouchard -

    Yes it is glued together.

    Brennan Murphy -

    So is it even possible to actually just replace the digitizer? Because it seems like in getting it out I took the lcd with it?? is that "always" the case???

    Dave K -

    Im ficing my phone now what kind of glue

    candylady35206 -

    Ya, I lost out but I should've bought the lcd, digitizer AND frame COMBO since I'm a novice at this. It was recommended this way. Now I have to worry about uv foca glue : (

    I wish I was warned that I should've bought the lcd and glass as a combo unless I have a $10,000 machine. :(

    Everyone make sure u buy the lcd + digitizer glass 2 in 1 already laminated or even 3 in 1 frame, lcd, digitizer glass

    THANK YOU

    N.1234 -

    What is the best screen with frame to buy and where to purchase and r they all 1080p and how much .for zte zmax pro from metro

    Marian butler -

    I just bought one for 30 sum dollars. I might try to install it myself but I don’t have a heat gun.

    stephen powell -

    A hair dryer will work in place of heat gun

    454bholmes -

    Keys to successful digitizer/lcd/glass replacement:

    1. Purchase a quality glass/digitizer//frame assembly.

    2. Avoid using metal objects as pry tools.

    3. Read through instructions or watch videos from at least 3 sources before starting.

    4. Take pictures as you proceed through disassembly. This will greatly aid in reassembly.

    5. Go slow, it takes longer to be better.

    6. Use a good magnifier and take short breaks to avoid eyestrain.

    454bholmes -

    does the fingerprint flex cable have anything to do with whether or not the touch screen works? plug on fingerprint cable broke off when changing battery, but now screen wont unlock…

    denise -

Abschluss

Um das Gerät wieder zusammenzubauen, folge der Anleitung in umgekehrter Reihenfolge..
